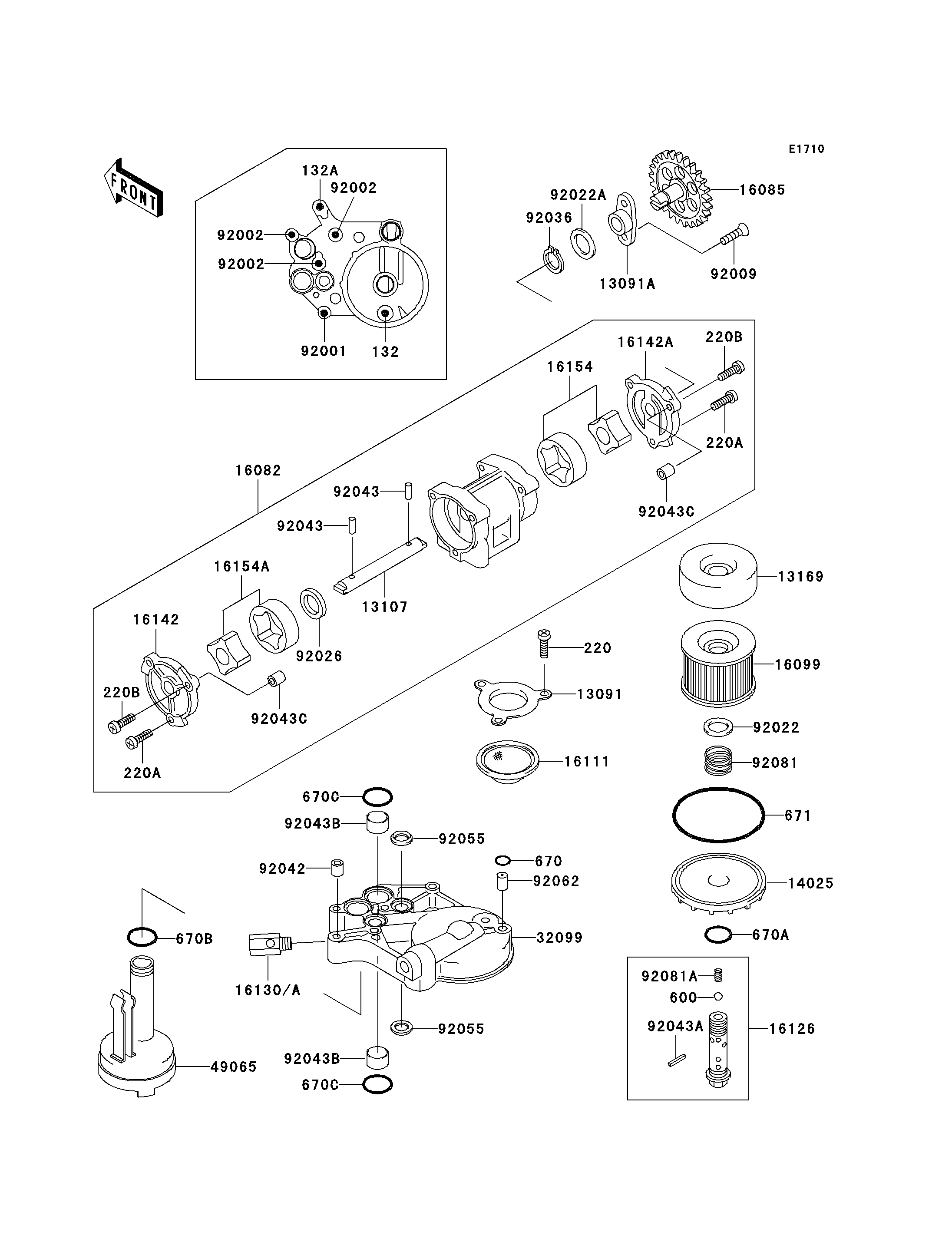

1995 Ninja® ZX™-11 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
220
220
220A
220A
220A
220A
220B
220B
220B
220B
600
600
13091
13091
13091A
13091A
13107
13107
13169
13169
14025
14025
16082
16082
16085
16085
16099
16099
16111
16111
16126
16126
16130A
16130A
16142
16142
16142A
16142A
16154
16154
16154A
16154A
32099
32099
49065
49065
92001
92001
92002
92002
92002
92002
92002
92002
92009
92009
92022
92022
92022A
92022A
92026
92026
92036
92036
92042
92042
92043
92043
92043
92043
92043A
92043A
92043B
92043B
92043B
92043B
92043C
92043C
92043C
92043C
92055
92055
92055
92055
92062
92062
92081
92081
92081A
92081A
670
670
670A
670A
670B
670B
670C
670C
670C
670C
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 1
SCREW-PAN-CROS,6X12 220 220B0612 3
SCREW-PAN-CROS,6X18 220A 220B0618 4
SCREW-PAN-CROS,6X25 220B 220B0625 2
BALL-STEEL,3/8" 600 600A1200 1
HOLDER,OIL FILTER 13091 13091-1274 1
HOLDER,PUMP GEAR 13091A 13091-1333 1
SHAFT,OIL PUMP 13107 13107-1236 1
PLATE,OIL FILTER 13169 13169-1313 1
COVER,OIL FILTER,F.BLACK 14025 14025-1422 1
PUMP-ASSY-OIL 16082 16082-1096 1
GEAR,OIL PUMP,35T 16085 16085-1103 1
ELEMENT-OIL FILTER 16099 16099-003 1
FILTER,OIL 16111 16111-003 1
VALVE,OIL FILTER 16126 16126-1108 1
VALVE-ASSY-RELIEF 16130A 16130-1058 1
COVER-PUMP,LH 16142 16142-1088 1
COVER-PUMP,RH 16142A 16142-1089 1
ROTOR-PUMP 16154 16154-1007 1
ROTOR-PUMP 16154A 16154-1078 1
CASE,OIL FILTER 32099 32099-1083 1
FILTER-OIL 49065 49065-1063 1
BOLT,FLANGED,6X38 92001 92001-1105 1
BOLT,6X38 92002 92002-1431 3
SCREW,6X16 92009 92009-1360 2
WASHER,20.5X30X1 92022 92022-1012 1
WASHER,14X20X1 92022A 92022-1495 1
SPACER,OIL PUMP 92026 92026-1230 1
RING-SNAP,PUMP GEAR 92036 92036-1052 1
PIN,DOWEL,6.3X8X14 92042 92042-007 1
PIN,DOWEL,5X17.8 92043 92043-1061 2
PIN,SPRING,2X20 92043A 92043-111 1
PIN,18X20X12 92043B 92043-1213 3
PIN,DOWEL,8X10 92043C 92043-1302 2
RING-O,19.5MM 92055 92055-077 3
NOZZLE 92062 92062-1055 1
SPRING,OIL FILTER 92081 92081-1018 1
SPRING 92081A 92081-109 1
O RING,8MM 670 670B1508 1
O RING,16MM 670A 670B2016 1
O RING,18MM 670B 670B2018 1
O RING,20MM 670C 670D2020 3
O RING,90MM 671 671B2590 1
