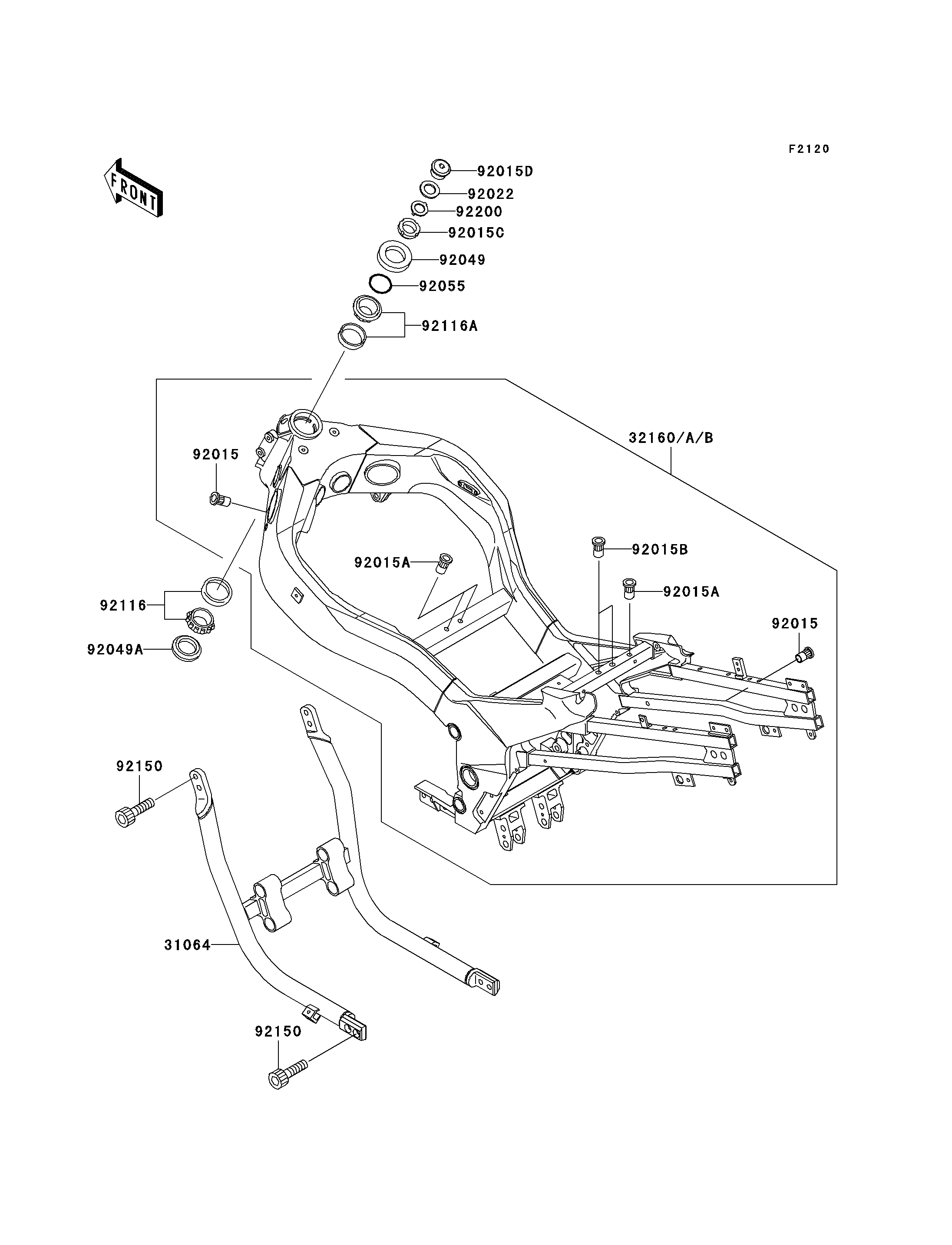

Parts Diagrams |
31064
92015
92015
92015A
92015A
92015B
92015C
92015D
92022
92049
92049A
92055
92116
92116A
92150
92150
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIPE-COMP,SIDE FRAME,BLACK | 31064 | 31064-1148-10 | 1 | ||
NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 10 | ||
NUT,POP,6MM,L=16.5 | 92015A | 92015-1792 | 3 | ||
NUT,POP,8MM,L=18 | 92015B | 92015-1794 | 2 | ||
NUT,STEERING STEM,35MM | 92015C | 92015-1848 | 1 | ||
NUT,STEERING,25MM | 92015D | 92015-1891 | 1 | ||
WASHER,25X36X2.3 | 92022 | 92022-250 | 1 | ||
SEAL-OIL,XMH 43 75 6.4J | 92049 | 92049-1382 | 1 | ||
SEAL-OIL,XMHE 43 55 4J | 92049A | 92049-1383 | 1 | ||
RING-O,34.5X2.0 | 92055 | 92055-1452 | 1 | ||
BEARING-ROLLER,32907JR-2 | 92116 | 92116-1072 | 1 | ||
BEARING-ROLLER,32907JR-3 | 92116A | 92116-1074 | 1 | ||
BOLT,SOCKET,10X30 | 92150 | 92150-1690 | 8 | ||
WASHER,CLAW,25.5X40X2.3 | 92200 | 92200-1083 | 1 | ||
FRAME-COMP,AL,G.GRAY | 32160 | 32160-1280-GD | 1 | CN | |
FRAME-COMP,AL,SILVER NO.35 | 32160B | 32160-1280-VZ | 1 | CAUS |
PIPE-COMP,SIDE FRAME,BLACK | |
REF # | 31064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,POP,6MM,L=15 | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
NUT,POP,6MM,L=16.5 | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,POP,8MM,L=18 | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,STEERING STEM,35MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,STEERING,25MM | |
REF # | 92015D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,25X36X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,XMH 43 75 6.4J | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,XMHE 43 55 4J | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,34.5X2.0 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,32907JR-2 | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,32907JR-3 | |
REF # | 92116A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,10X30 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,CLAW,25.5X40X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP,AL,G.GRAY | |
REF # | 32160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
FRAME-COMP,AL,SILVER NO.35 | |
REF # | 32160B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
