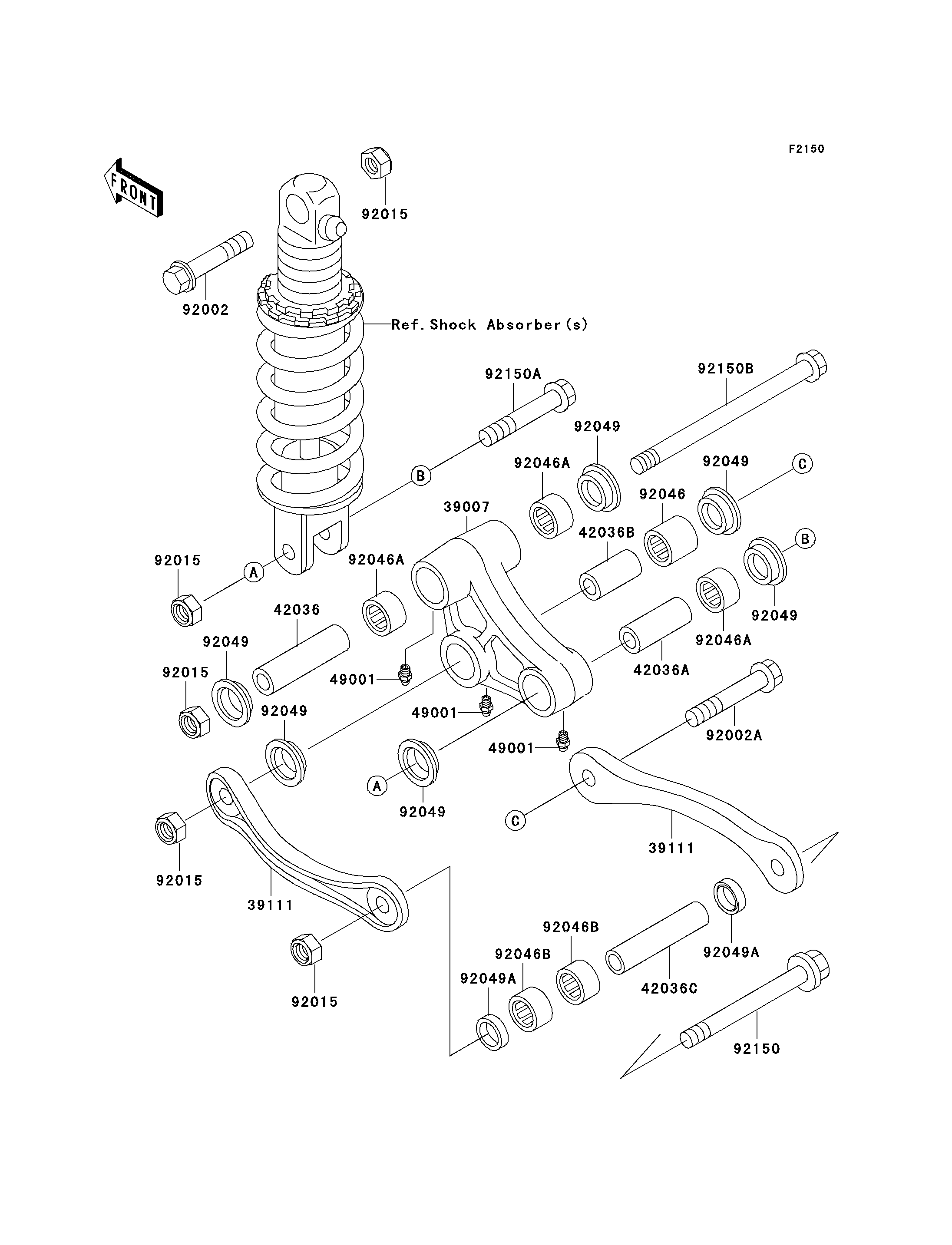

1995 Ninja® ZX™-11 - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
39111
42036
42036A
42036B
42036C
49001
49001
49001
92002
92002A
92015
92015
92015
92015
92015
92046
92046A
92046A
92046A
92046B
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1107 1
ROD-TIE,SUSPENSION 39111 39111-1130 2
SLEEVE,ARM,CNT 42036 42036-1079 1
SLEEVE,12.1X20X40 42036A 42036-1108 1
SLEEVE,12.1X20X50 42036B 42036-1111 1
SLEEVE,12.1X18X82 42036C 42036-1231 1
NIPPLE-GREASE 49001 49001-1051 3
BOLT,FLANGED,12X60 92002 92002-1464 1
BOLT,SUSPENSION ARM,12MM 92002A 92002-1785 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 5
BEARING-NEEDLE,BM202726 92046 92046-1110 1
BEARING-NEEDLE,BM202715 92046A 92046-1112 3
BEARING-NEEDLE,18BM2416 92046B 92046-1144 2
SEAL-OIL,ARM,CNT 92049 92049-1109 6
SEAL-OIL,MHA18244 92049A 92049-1225 2
BOLT,FLANGED,12X110 92150 92150-1088 1
BOLT,FLANGED,12X70 92150A 92150-1115 1
BOLT,FLANGED,12X165 92150B 92150-1116 1
