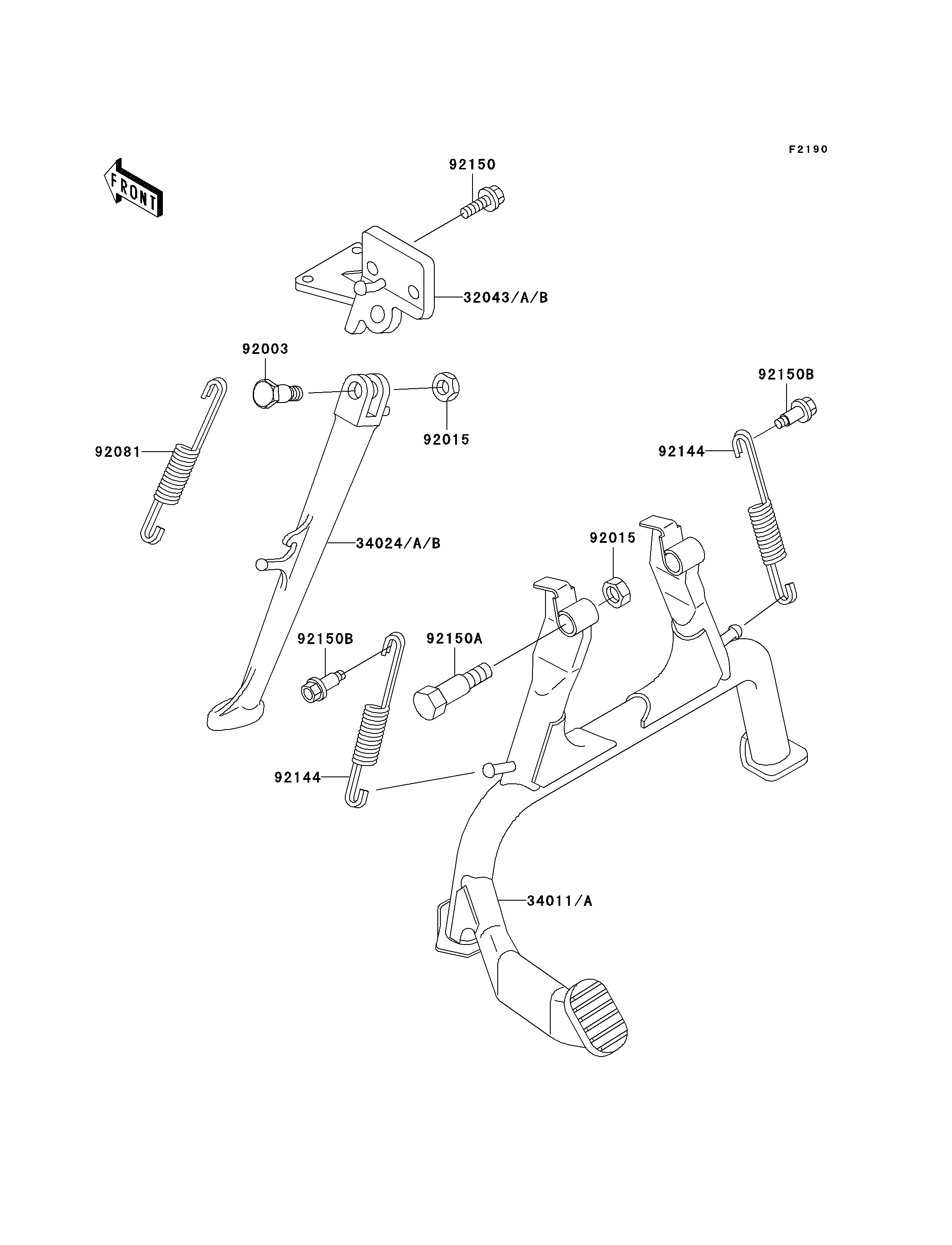

34011A
92003
92015
92015
92081
92144
92144
92150
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-CENTER 34011A 34011-1159 1
BOLT,SIDE STAND 92003 92003-079 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 3
SPRING,SIDE STAND 92081 92081-1676 1
SPRING,CENTER STAND 92144 92144-1334 2
BOLT,FLANGED,10X25 92150 92150-1065 2
BOLT,CENTER STAND,10MM 92150A 92150-1112 2
BOLT,6MM 92150B 92150-1113 2
BRACKET-STAND,SIDE,G.GRAY 32043 32043-1344-GD 1 CN
BRACKET-STAND,SIDE,SILVER 32043B 32043-1344-VZ 1 CAUS
STAND-SIDE,G.GRAY 34024 34024-1249-GD 1 CN
STAND-SIDE,SILVER NO.35 34024B 34024-1249-VZ 1 CAUS
