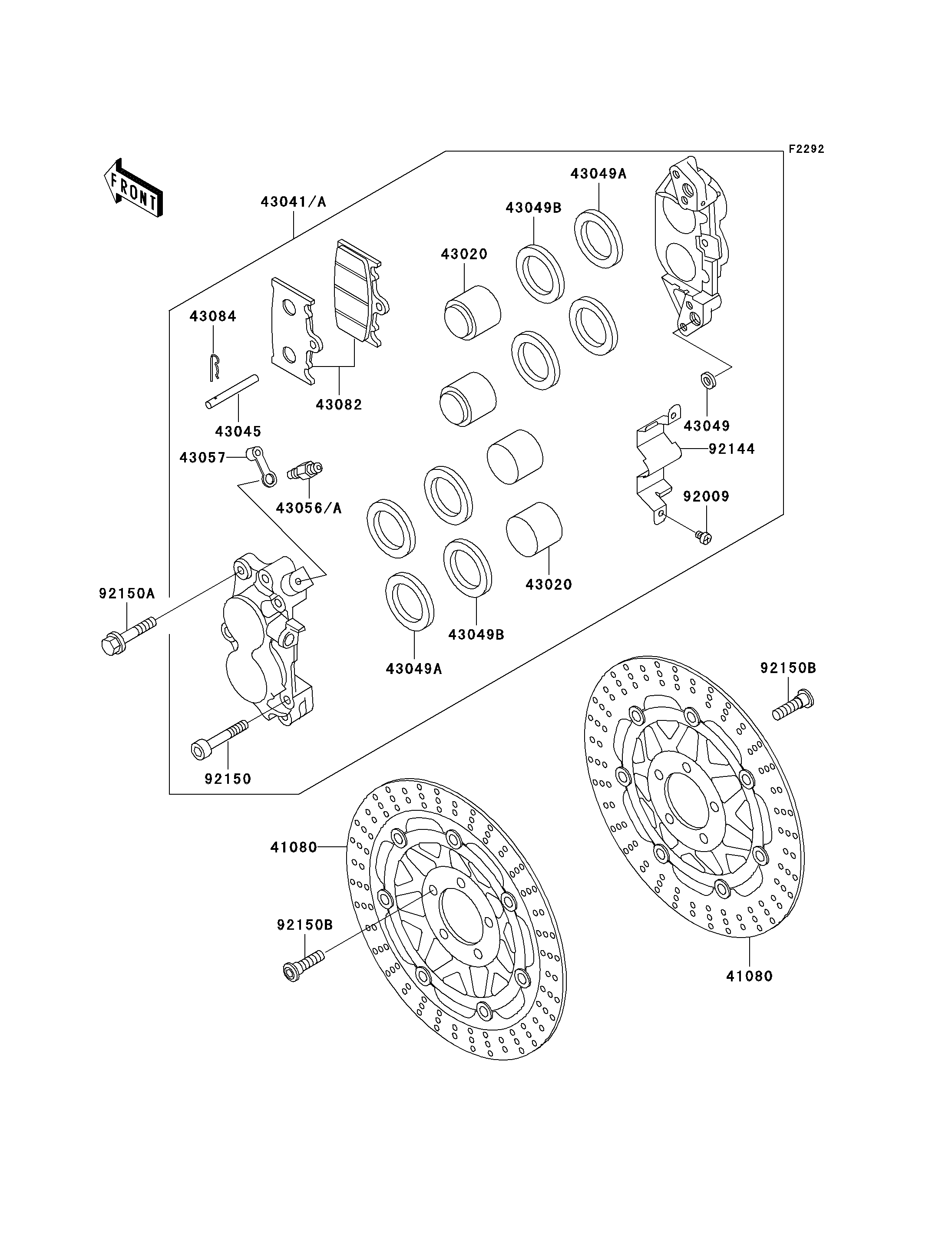

1995 Ninja® ZX™-11 - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
41080
43020
43020
43041
43041A
43045
43049
43049A
43049A
43049B
43049B
43056
43056A
43057
43082
43084
92009
92144
92150
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,GRAY 41080 41080-1351-FF 2
PISTON-COMP-BRAKE 43020 43020-1089 8
CALIPER-ASSY,FR,LH,M.F.GRAY 43041 43041-1497-FE 1
CALIPER-ASSY,FR,RH,M.F.GRAY 43041A 43041-1498-FE 1
SHAFT-CALIPER 43045 43045-007 2
PACKING,SEAL,6.5X11.5X2.2 43049 43049-1004 4
PACKING 43049A 43049-1067 8
PACKING 43049B 43049-1068 8
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1054 1
CAP-BREATHER 43057 43057-003 2
PAD-ASSY-BRAKE 43082 43082-1142 2
CLAMP,PAD 43084 43084-003 2
SCREW,4X6 92009 92009-1569 4
SPRING 92144 92144-1399 2
BOLT,SOCKET,8X40 92150 92150-1272 8
BOLT,FLANGED,10X38 92150A 92150-1297 4
BOLT,DISC PLATE,8X30 92150B 92150-1728 10
