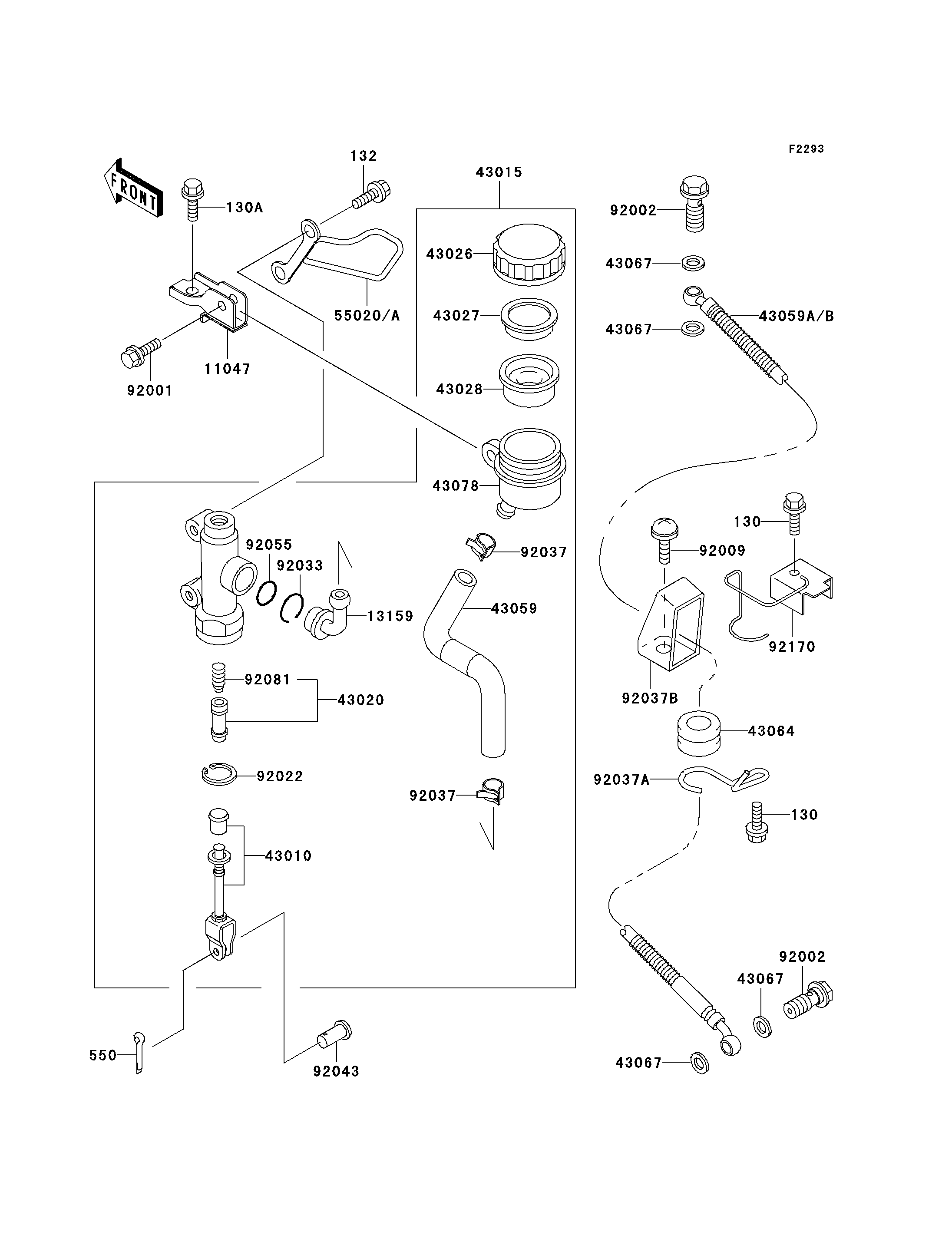

1995 Ninja® ZX™-11 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
132
550
11047
13159
43010
43015
43020
43026
43027
43028
43059
43059B
43064
43067
43067
43067
43067
43078
55020A
92001
92002
92002
92009
92022
92033
92037
92037
92037A
92037B
92043
92055
92081
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED,6X14,BLACK 130A 130J0614 1
BOLT-FLANGED-SMALL 132 132E0835 2
PIN-COTTER,2.0X15 550 550D2015 1
BRACKET,RESERVOIR TANK 11047 11047-1963 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1055 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1531 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1755 1
HOSE-BRAKE,RR 43059B 43059-1834 1
GROMMET,HOSE CLAMP 43064 43064-007 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1058 1
GUARD,RR MASTER CYLINDER 55020A 55020-1494 1
BOLT,6X20 92001 92001-1460 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14 92009 92009-1288 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1834 1
CLAMP,HOSE 92037B 92037-1896 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
CLAMP,HOSE 92170 92170-1339 1
