Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

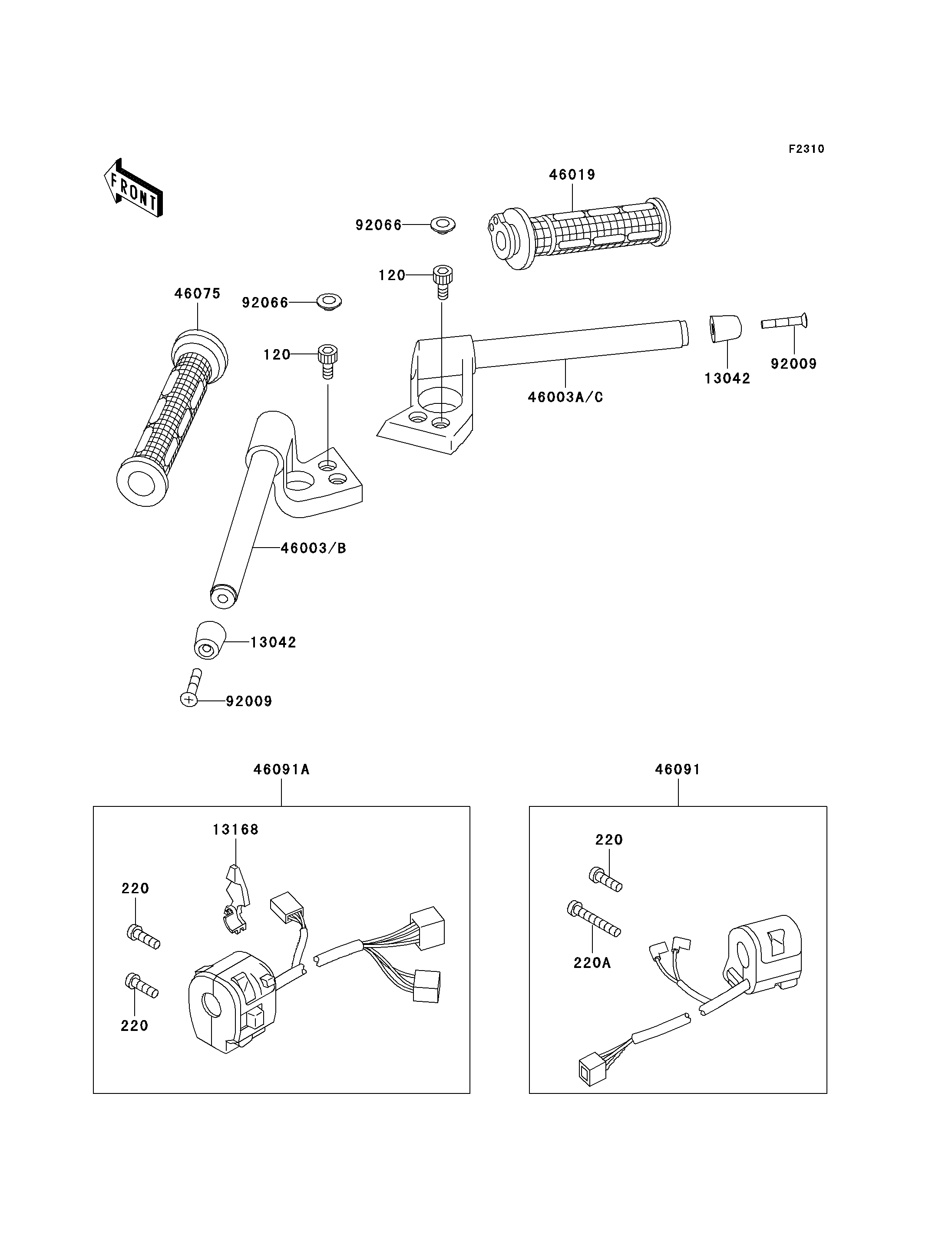

Parts Diagrams |
120
120
220
220
220
220A
13042
13042
13168
46003B
46003C
46019
46075
46091
46091A
92009
92009
92066
92066
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,8X25,BLACK | 120 | 120S0825 | 4 | ||
| SCREW-PAN-CROS | 220 | 220C0525 | 3 | ||
| SCREW-PAN-CROS | 220A | 220C0540 | 1 | ||
| WEIGHT,HANDLE | 13042 | 13042-1005 | 2 | ||
| LEVER,CHOKE | 13168 | 13168-1516 | 1 | ||
| HANDLE,LH,C.GRAY | 46003B | 46003-1395-EZ | 1 | ||
| HANDLE,RH,C.GRAY | 46003C | 46003-1396-EZ | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1077 | 1 | ||
| GRIP,LH | 46075 | 46075-1088 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1591 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1593 | 1 | ||
| SCREW,8X45 | 92009 | 92009-1257 | 2 | ||
| PLUG | 92066 | 92066-1216 | 4 |
| BOLT-SOCKET,8X25,BLACK | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WEIGHT,HANDLE | |
| REF # | 13042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER,CHOKE | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,LH,C.GRAY | |
| REF # | 46003B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,RH,C.GRAY | |
| REF # | 46003C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL,RH | |
| REF # | 46091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL,LH | |
| REF # | 46091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,8X45 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
