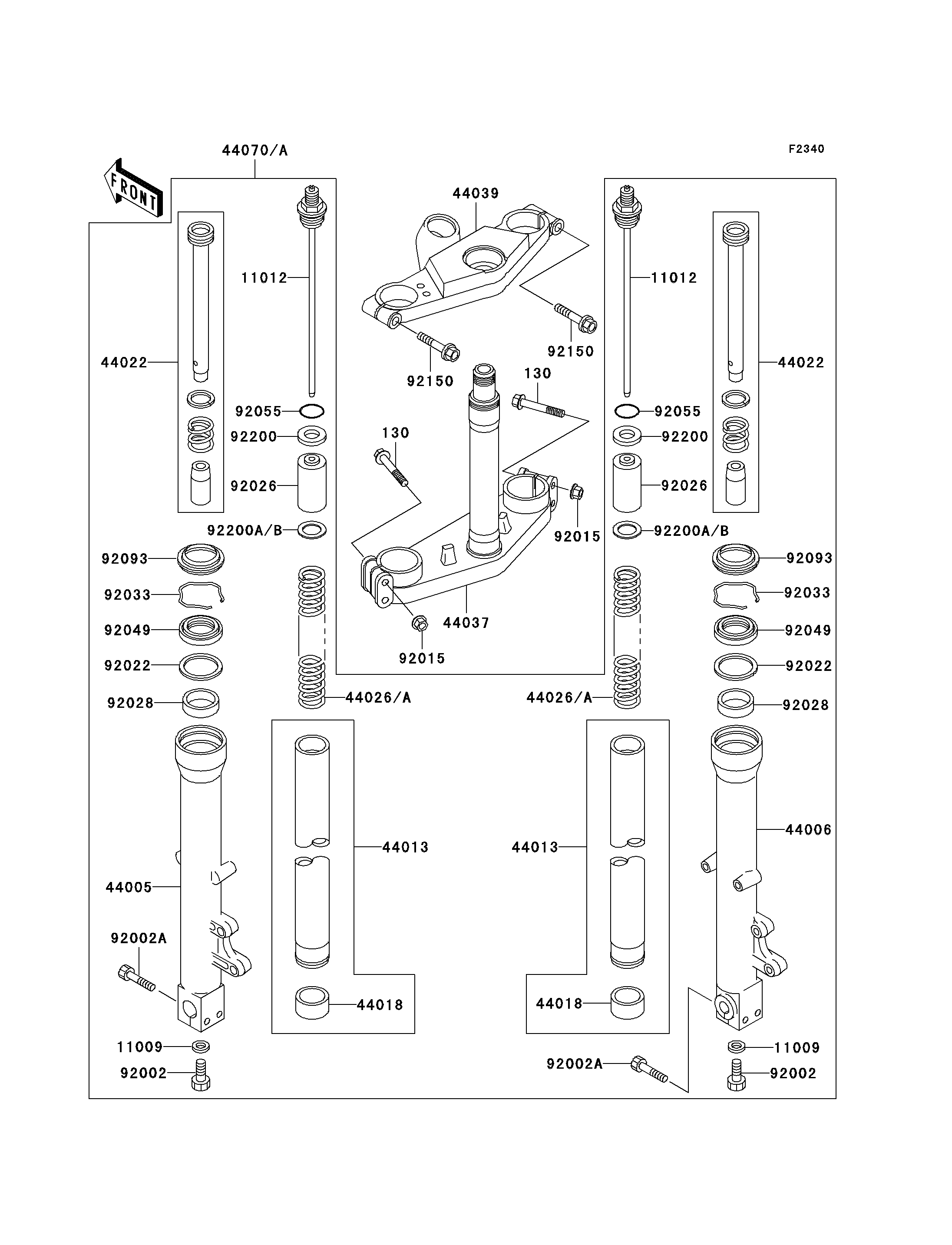

1995 Ninja® ZX™-11 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
130
130
11009
11009
11012
11012
44005
44006
44013
44013
44018
44018
44022
44022
44026A
44026A
44037
44039
44070
92002
92002
92002A
92002A
92015
92015
92022
92022
92026
92026
92028
92028
92033
92033
92049
92049
92055
92055
92093
92093
92150
92150
92200
92200
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X50 130 130G0850 4
GASKET,FORK DRAIN PLUG 11009 11009-1553 2
CAP,FORK 11012 11012-1848 2
PIPE-LEFT FORK OUTER,C.GRAY 44005 44005-1324-EZ 1
PIPE-RIGHT FORK OUTER,C.GRAY 44006 44006-1322-EZ 1
PIPE-FORK INNER 44013 44013-1384 2
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-FORK 44022 44022-1287 2
SPRING-FRONT FORK 44026A 44026-1579 2
HOLDER-FORK UNDER 44037 44037-1312 1
HOLDER-FORK UPPER,C.GRAY 44039 44039-1237-EZ 1
DAMPER-ASSY,FORK,F.C.GRAY 44070 44070-1396-EZ 1
BOLT,FORK DRAIN 92002 92002-1650 2
BOLT,SOCKET,8X45 92002A 92002-1847 4
NUT,FLANGED,8MM 92015 92015-1485 4
WASHER 92022 92022-1299 2
SPACER,FORK,L=125 92026 92026-1421 2
BUSHING 92028 92028-1581 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1392 2
RING-O 92055 92055-1123 2
SEAL,FORK OUTER TUBE 92093 92093-1330 2
BOLT,FLANGED,10X45 92150 92150-1210 2
WASHER 92200 92200-1023 2
WASHER 92200B 92200-1253 2
