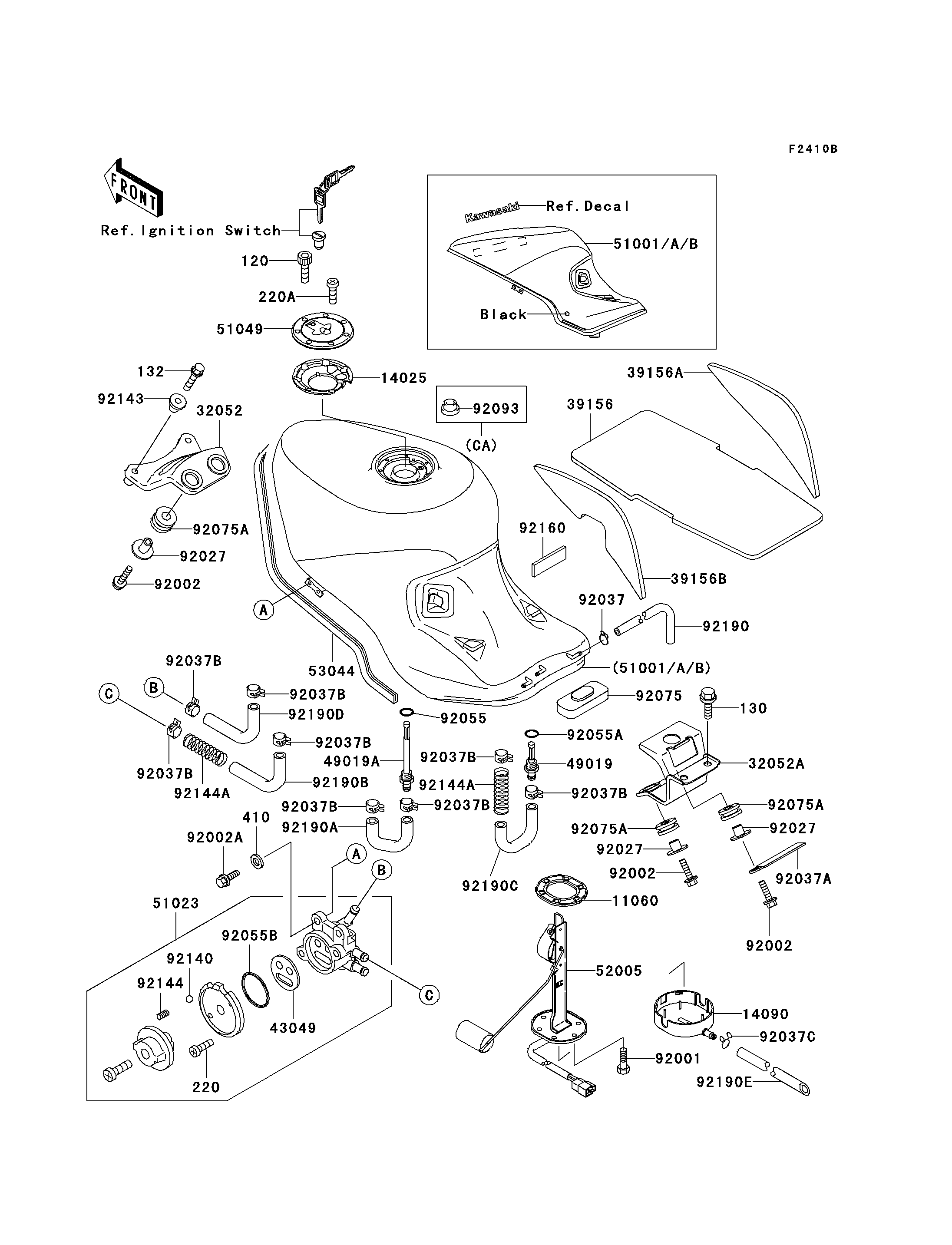

1995 Ninja® ZX™-11 - Fuel Tank(ZX1100-D3)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
14025
14025
14090
14090
32052
32052
32052A
32052A
39156
39156
39156A
39156A
39156B
39156B
43049
43049
49019
49019
49019A
49019A
51023
51023
51049
51049
52005
52005
53044
53044
92001
92001
92002
92002
92002
92002
92002
92002
92002A
92002A
92027
92027
92027
92027
92027
92027
120
120
130
130
132
132
220
220
220A
220A
410
410
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037C
92037C
92055
92055
92055A
92055A
92055B
92055B
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92140
92140
92143
92143
92144
92144
92144A
92144A
92144A
92144A
92160
92160
92190
92190
92190A
92190A
92190B
92190B
92190C
92190C
92190D
92190D
92190E
92190E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1337 1
COVER,TANK CAP 14025 14025-1913 1
COVER,FUEL GAUGE 14090 14090-1310 1
BRACKET-TANK,FR 32052 32052-1370 1
BRACKET-TANK,RR 32052A 32052-1371 1
PAD,FUEL TANK,CNT 39156 39156-1334 1
PAD,FUEL TANK,RH 39156A 39156-1335 1
PAD,FUEL TANK,LH 39156B 39156-1336 1
PACKING,TAP VALVE 43049 43049-1066 1
FILTER-FUEL 49019 49019-1070 1
FILTER-FUEL,"ON" 49019A 49019-1076 1
TAP-ASSY,FUEL 51023 51023-1195 1
CAP-TANK,FUEL 51049 51049-1091 1
GAUGE,FUEL 52005 52005-1106 1
TRIM,L=1930 53044 53044-1268 1
BOLT,FUEL GAUGE 92001 92001-1069 6
BOLT,6X20 92002 92002-1237 4
BOLT,6X14 92002A 92002-1700 2
COLLAR,L=13.1 92027 92027-251 4
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,8X20 130 130J0820 2
BOLT-FLANGED-SMALL 132 132J0635 2
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 2
CLAMP,TUBE 92037 92037-010 1
CLAMP,WIRING HARNESS 92037A 92037-1069 1
CLAMP 92037B 92037-1181 8
CLAMP,TUBE 92037C 92037-147 1
RING-O,ID=9.5 92055 92055-1386 1
RING-O,11.5X1.5 92055A 92055-1387 1
RING-O,TAP LEVER 92055B 92055-1419 1
DAMPER,FUEL TANK,RR 92075 92075-1114 1
DAMPER 92075A 92075-1690 4
BALL,STAINLESS,5/32" 92140 92140-1051 1
COLLAR,L=6.6 92143 92143-1088 2
SPRING,FUEL TAP KNOB 92144 92144-1212 1
SPRING,TUBE PROTECTOR 92144A 92144-1722 2
DAMPER 92160 92160-3720 1
TUBE,5X8X230 92190 92190-1365 1
TUBE,"ON",FILTER-TANK 92190A 92190-1424 1
TUBE,"ON",TANK-TAP 92190B 92190-1425 1
TUBE,"RES",FILTER-TANK 92190C 92190-1426 1
TUBE,"RES",TANK-TAP 92190D 92190-1427 1
TUBE,7X10X230 92190E 92190-1434 1
TANK-COMP-FUEL,P.P.BLACK MICA 51001 51001-1400-20 1 CN
TANK-COMP-FUEL,P.P.BLACK MICA 51001A 51001-1400-5M 1 US
TANK-COMP-FUEL,P.P.BLACK MICA 51001B 51001-1401-5M 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
