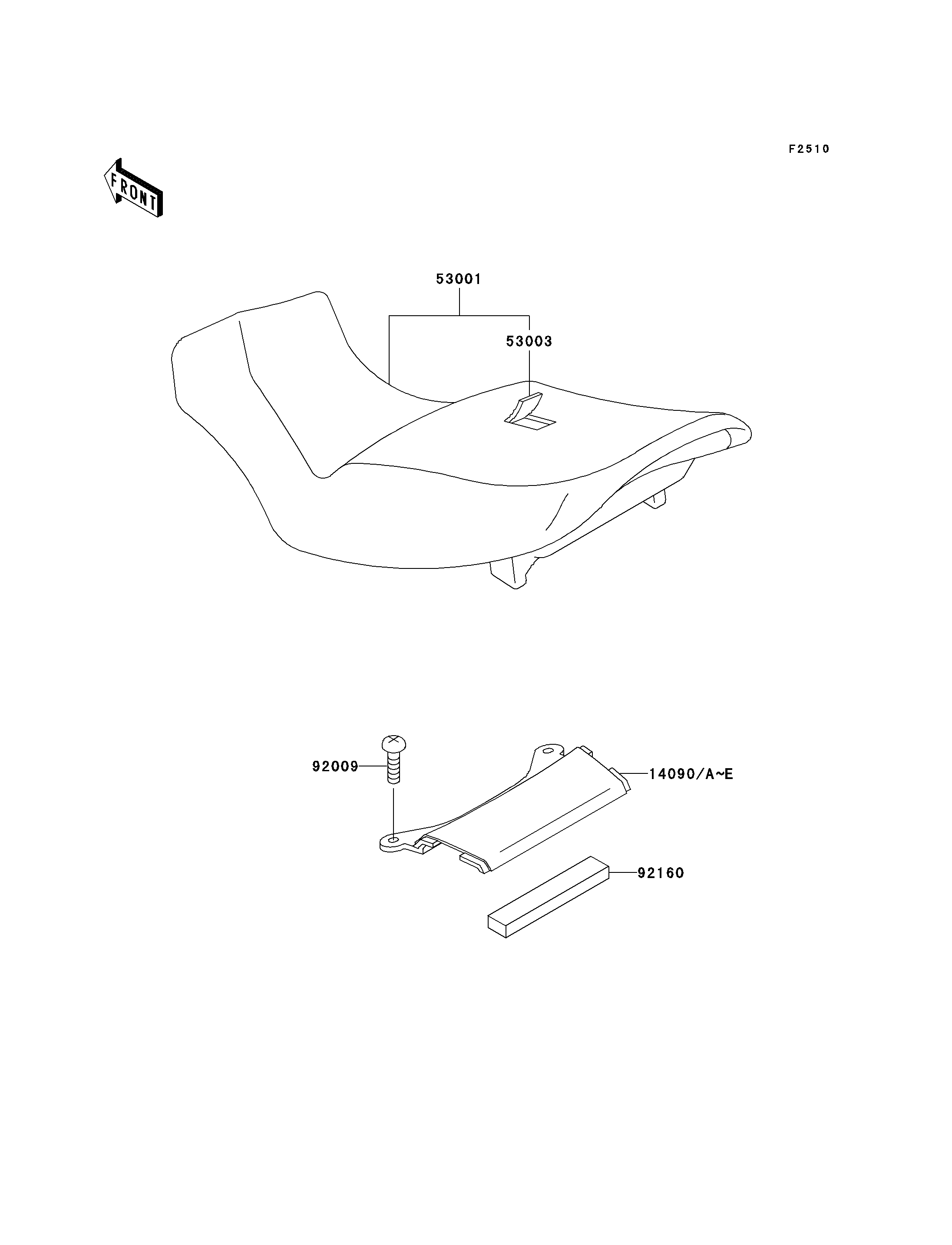

53001
53003
92009
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,DUAL,BLACK 53001 53001-1690-MA 1
LEATHER,SEAT,BLACK 53003 53003-1271-MA 1
SCREW,6X18,BLACK 92009 92009-1181 2
DAMPER 92160 92160-1430 1
COVER,TAIL,P.P.BLACK MICA 14090C 14090-1280-20 1 CN
COVER,TAIL,P.P.BLACK MICA 14090D 14090-1280-5M 1 CAUS
