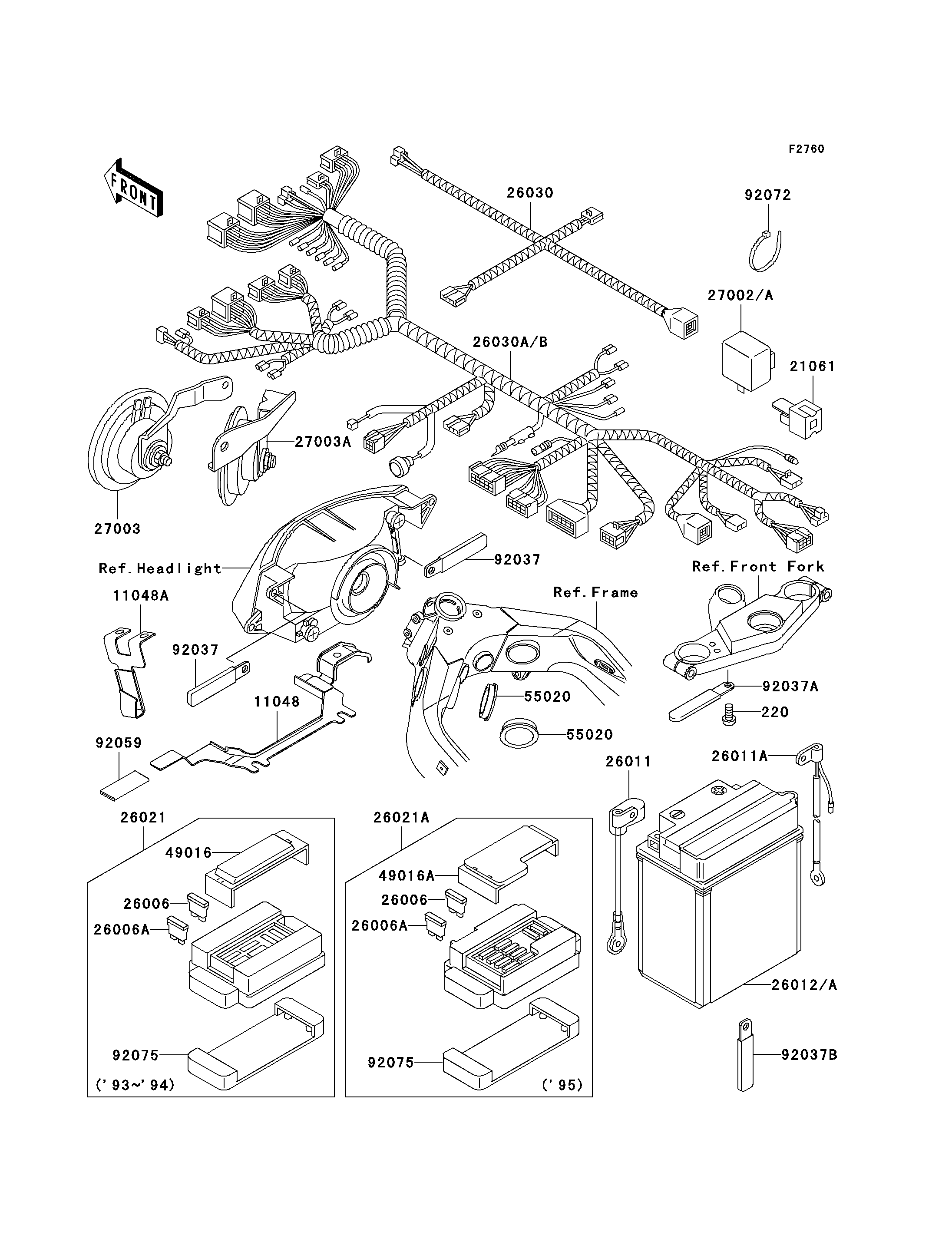

1995 Ninja® ZX™-11 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
220
11048
11048A
26006
26006
26006A
26006A
26011
26011A
26021A
26030
26030B
27002A
27003
27003A
49016A
55020
55020
92037
92037
92037A
92037B
92059
92072
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220C0510 1
BRACKET,CLAMP 11048 11048-1193 1
BRACKET,RELAY 11048A 11048-1241 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(-) 26011 26011-1563 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1564 1
JUNCTION BOX 26021A 26021-1089 1
HARNESS,FR 26030 26030-1006 1
HARNESS,MAIN 26030B 26030-1322 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1092 1
HORN,LH 27003 27003-1320 1
HORN,RH 27003A 27003-1363 1
COVER-SEAL,FUSE 49016A 49016-1177 1
GUARD,HARNESS 55020 55020-1481 2
CLAMP,WIRING HARNESS 92037 92037-1069 2
CLAMP,WIRING HARNESS 92037A 92037-1539 1
CLAMP 92037B 92037-1993 2
TUBE,11X12X40 92059 92059-1637 1
BAND,L=185 92072 92072-1195 6
DAMPER,JUNCTION BOX 92075 92075-1688 1
BATTERY,YTX14-BS,12V 12AH 26012 26012-1279 1 CN
BATTERY,YTX14-BS,12V 12AH 26012A 26012-1302 1 CAUS
