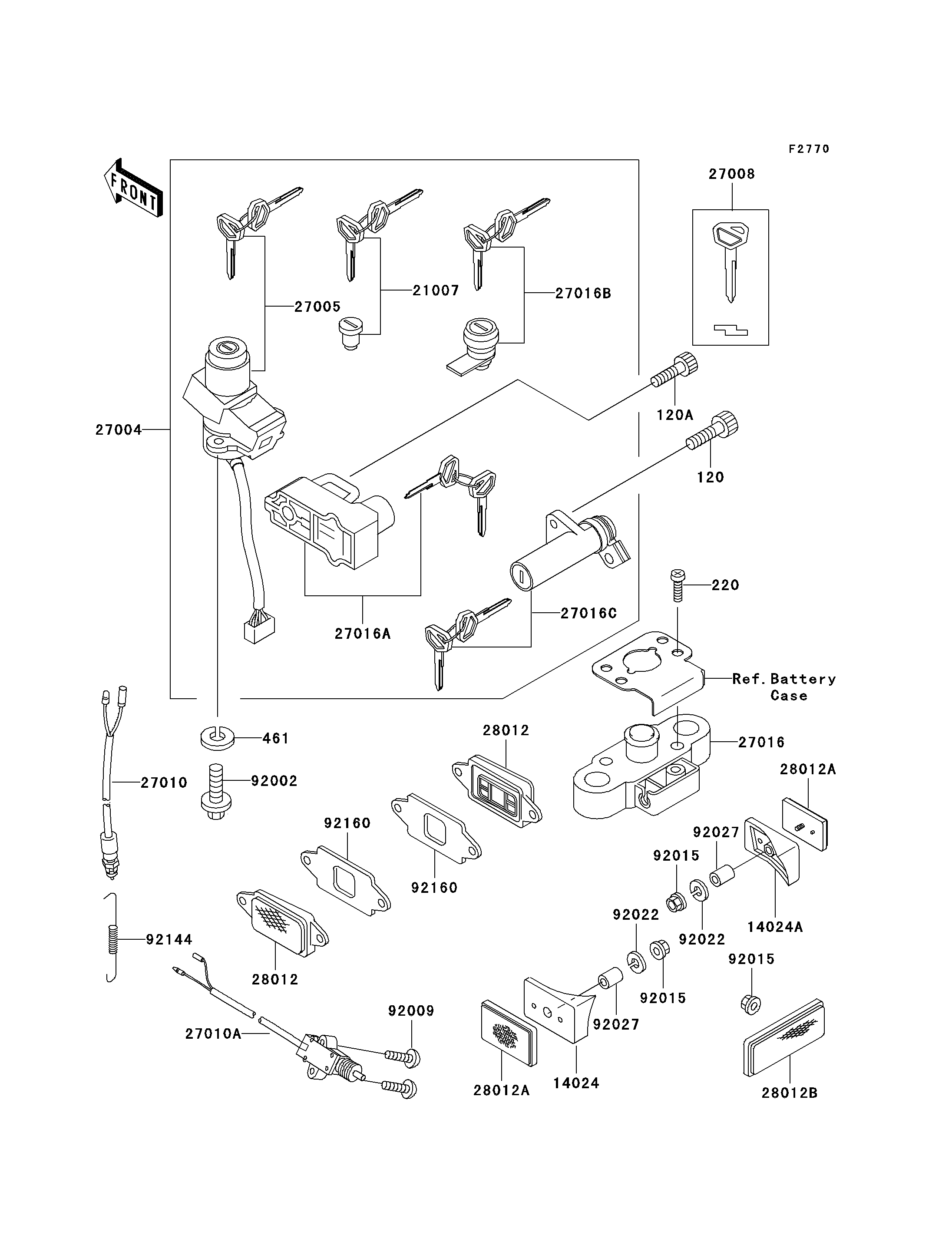

1995 Ninja® ZX™-11 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
120A
220
461
14024
14024A
21007
27004
27005
27008
27010
27010A
27016
27016A
27016B
27016C
28012
28012
28012A
28012A
28012B
92002
92009
92015
92015
92015
92022
92022
92027
92027
92144
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 2
BOLT-SOCKET,6X16,BLACK 120A 120S0616 1
SCREW-PAN-CROS,6X30,BLACK 220 220C0630 2
WASHER-SPRING 461 461L0600 2
COVER,REFLECTOR,LH 14024 14024-1940 1
COVER,REFLECTOR,RH 14024A 14024-1941 1
ROTOR,LOCK,TANK CAP 21007 21007-5037 1
SWITCH-ASSY 27004 27004-5452 1
SWITCH-ASSY-IGNITION 27005 27005-5101 1
KEY-LOCK,BLANK 27008 27008-1173 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1093 1
SWITCH,SIDE STAND 27010A 27010-1226 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,HELMET 27016A 27016-5203 1
LOCK-ASSY,TOOL BOX 27016B 27016-5204 1
LOCK-ASSY,SEAT 27016C 27016-5205 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-1068 2
REFLECTOR-REFLEX,RR 28012A 28012-1072 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BOLT,TORX,6X16 92002 92002-1333 2
SCREW,5X20 92009 92009-1459 2
NUT,FLANGED,5MM 92015 92015-1259 3
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR,5X8X14.5 92027 92027-1789 2
SPRING,REAR BRAKE SWITCH 92144 92144-1283 1
DAMPER,REFLECTOR 92160 92160-1192 2
