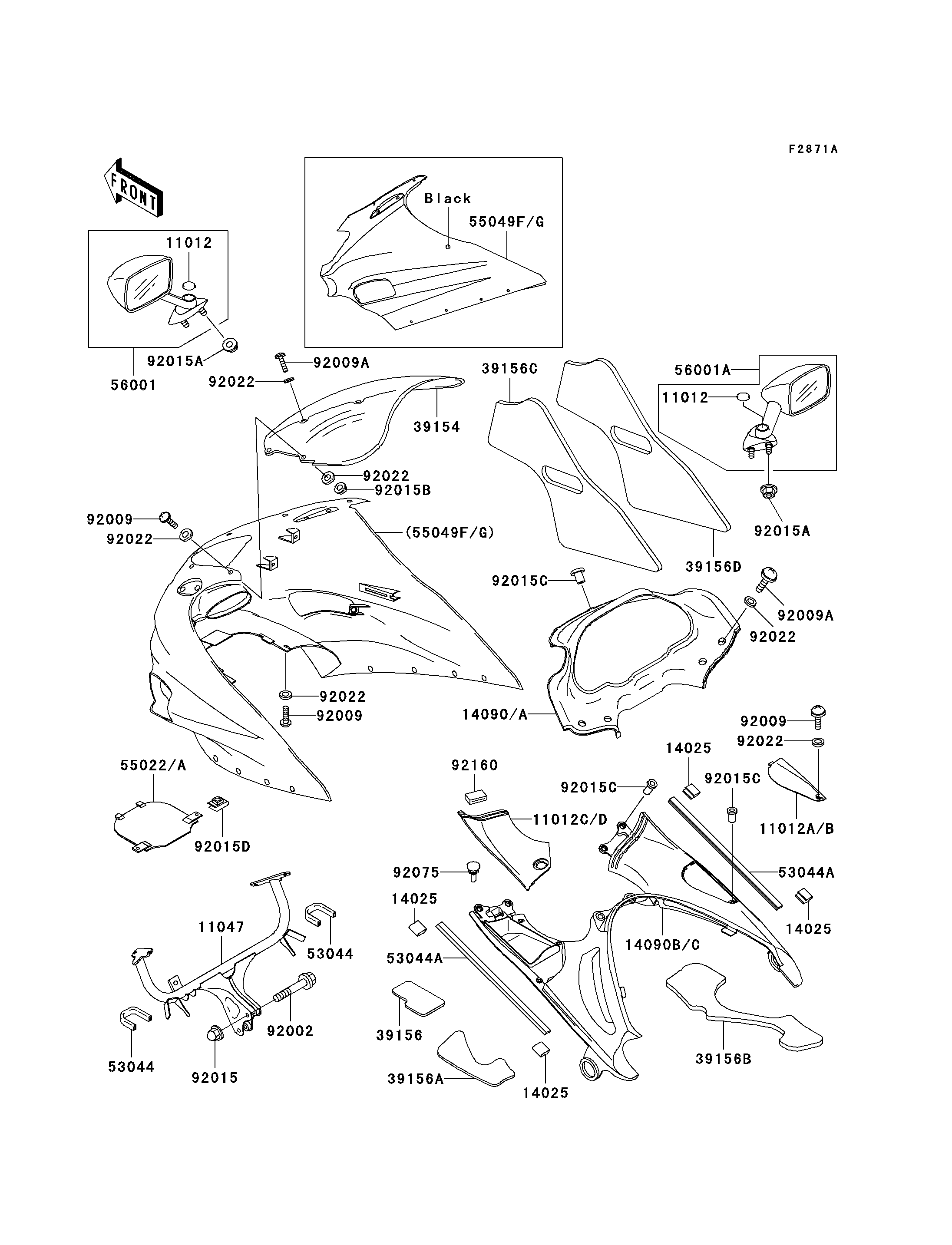

1994 Ninja® ZX™-11 - Cowling(ZX1100-D2)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11047
11047
14025
14025
14025
14025
14025
14025
14025
14025
39154
39154
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
53044
53044
53044
53044
53044A
53044A
53044A
53044A
56001
56001
56001A
56001A
92002
92002
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92015D
92015D
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92075
92075
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,MIRROR,BLACK 11012 11012-1751-6Z 2
BRACKET,UPP COWLING 11047 11047-1920 1
COVER,TRIM END 14025 14025-1756 4
WINDSHIELD 39154 39154-1122 1
PAD,INNER COWLING,LH,FR 39156 39156-1329 1
PAD,INNER COWLING,LH,RR 39156A 39156-1330 1
PAD,INNER COWLING,RH 39156B 39156-1331 1
PAD,UPP COWLING,LH 39156C 39156-1332 1
PAD,UPP COWLING,RH 39156D 39156-1333 1
TRIM,L=100 53044 53044-1200 2
TRIM,L=385 53044A 53044-1255 2
MIRROR-ASSY,LH,P.G.BLACK 56001 56001-1390-RL 1
MIRROR-ASSY,RH,P.G.BLACK 56001A 56001-1391-RL 1
BOLT,8X35 92002 92002-1198 2
SCREW,5X16 92009 92009-1654 5
SCREW,5X25 92009A 92009-1657 8
NUT,CAP,8MM,BLACK 92015 92015-1174 2
NUT,FLANGED,6MM,BLACK 92015A 92015-1233 4
NUT,LOCK 5MM 92015B 92015-1263 2
NUT,WELL,5MM 92015C 92015-1757 9
NUT,5MM 92015D 92015-1798 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 15
DAMPER 92075 92075-1808 4
DAMPER 92160 92160-1190 1
CAP,INNER COWLING,RH,GRAY 11012A 11012-1876-11 1 CN
CAP,INNER COWLING,RH,GRAY 11012B 11012-1876-12 1 CAUS
CAP,INNER COWLING,LH,GRAY 11012C 11012-1877-11 1 CN
CAP,INNER COWLING,LH,GRAY 11012D 11012-1877-12 1 CAUS
COVER,INNER COWLING,FR,GRAY 14090 14090-1418-11 1 CN
COVER,INNER COWLING,FR,GRAY 14090A 14090-1418-12 1 CAUS
COVER,INNER COWLING,RR,GRAY 14090B 14090-1427-11 1 CN
COVER,INNER COWLING,RR,GRAY 14090C 14090-1427-12 1 CAUS
COVER-HEAD LAMP,P.G.BLACK 55022 55022-1074-RL 1 CN
COVER-HEAD LAMP,P.G.BLACK 55022A 55022-1074-86 1 CAUS
COWLING.,UPP,P.G.BLACK 55049F 55049-5239-RL 1 CN
COWLING.,UPP,P.G.BLACK 55049G 55049-5239-86 1 CAUS
