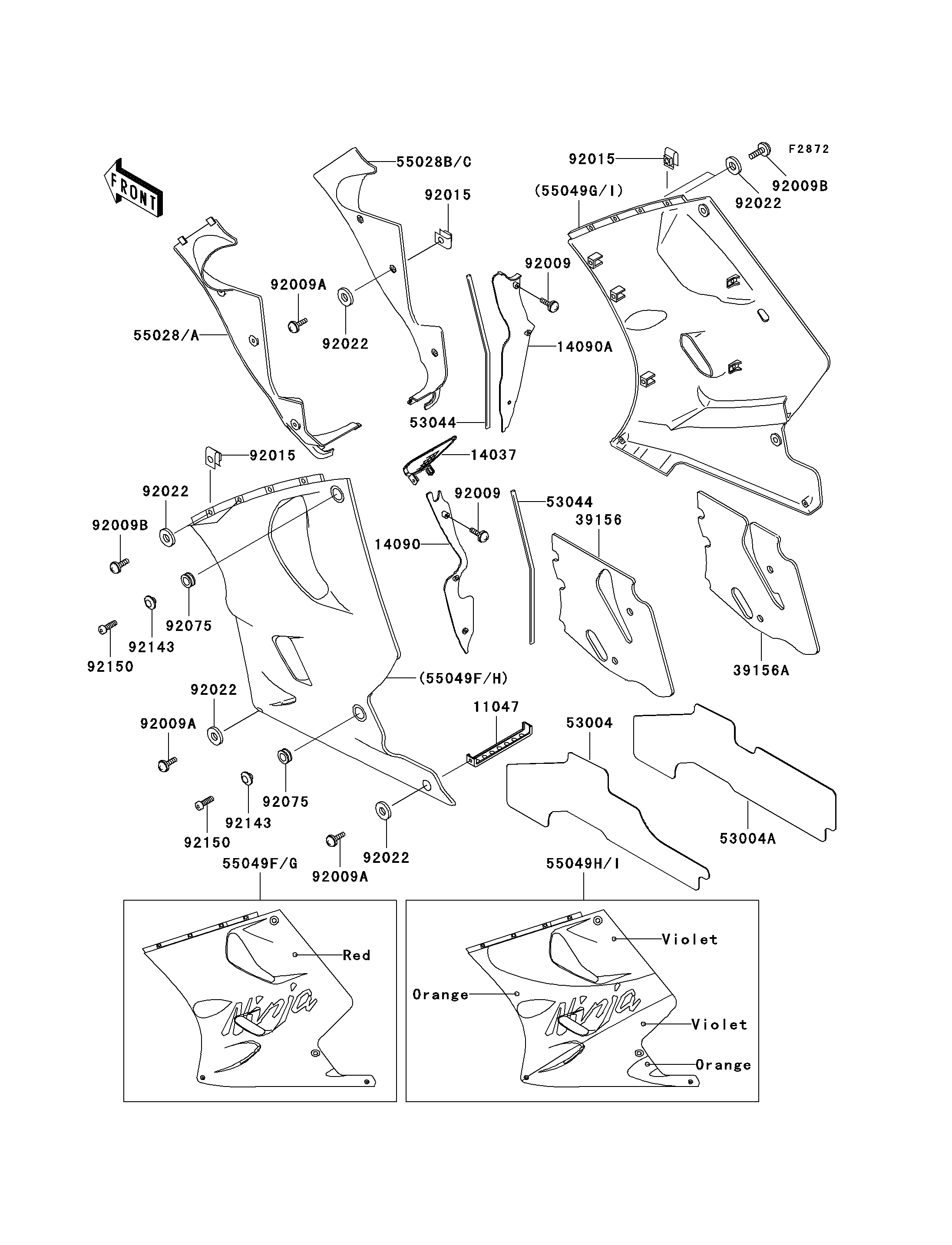

1993 Ninja® ZX™-11 - Cowling Lowers(ZX1100-D1)
11047
11047
14037
14037
14090
14090
14090A
14090A
39156
39156
39156A
39156A
53004
53004
53004A
53004A
53044
53044
53044
53044
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92015
92015
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92075
92075
92075
92075
92143
92143
92143
92143
92150
92150
92150
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LWR COWLING | 11047 | 11047-1080 | 1 | ||
SCREEN,FR COWLING | 14037 | 14037-1176 | 1 | ||
COVER,HEAT GUARD,LH | 14090 | 14090-1283 | 1 | ||
COVER,HEAT GUARD,RH | 14090A | 14090-1284 | 1 | ||
PAD,LWR COWLING,LH,UPP | 39156 | 39156-1310 | 1 | ||
PAD,LWR COWLING,RH,UPP | 39156A | 39156-1311 | 1 | ||
MAT,LWR COWLING,LH,LWR | 53004 | 53004-1074 | 1 | ||
MAT,LWR COWLING,RH,LWR | 53004A | 53004-1075 | 1 | ||
TRIM,L=300 | 53044 | 53044-1213 | 2 | ||
SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 6 | ||
SCREW,5X16 | 92009A | 92009-1654 | 10 | ||
SCREW,5X20 | 92009B | 92009-1656 | 8 | ||
NUT,5MM | 92015 | 92015-1798 | 14 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 14 | ||
DAMPER | 92075 | 92075-1634 | 4 | ||
COLLAR,BLACK | 92143 | 92143-1226 | 4 | ||
BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
COWLING,FR,LH,C.S.ORANGE | 55028 | 55028-1298-RK | 1 | CN | |
COWLING,FR,LH,C.W.RED | 55028A | 55028-1298-TF | 1 | CAUS | |
COWLING,FR,RH,C.S.ORANGE | 55028B | 55028-1299-RK | 1 | CN | |
COWLING,FR,RH,C.W.RED | 55028C | 55028-1299-TF | 1 | CAUS | |
COWLING.,LWR,LH,C.W.RED | 55049F | 55049-5179-TF | 1 | CAUS | |
COWLING.,LWR,RH,C.W.RED | 55049G | 55049-5180-TF | 1 | CAUS | |
COWLING.,LWR,LH,VIOLET/ORANGE | 55049H | 55049-5181-VR | 1 | CN | |
COWLING.,LWR,RH,VIOLET/ORANGE | 55049I | 55049-5201-VR | 1 | CN |
BRACKET,LWR COWLING | |
REF # | 11047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN,FR COWLING | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HEAT GUARD,LH | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HEAT GUARD,RH | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,LWR COWLING,LH,UPP | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,LWR COWLING,RH,UPP | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,LWR COWLING,LH,LWR | |
REF # | 53004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MAT,LWR COWLING,RH,LWR | |
REF # | 53004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=300 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
SCREW,5X20 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,BLACK | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X18 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COWLING,FR,LH,C.S.ORANGE | |
REF # | 55028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
COWLING,FR,LH,C.W.RED | |
REF # | 55028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
COWLING,FR,RH,C.S.ORANGE | |
REF # | 55028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
COWLING,FR,RH,C.W.RED | |
REF # | 55028C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
COWLING.,LWR,LH,C.W.RED | |
REF # | 55049F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
COWLING.,LWR,RH,C.W.RED | |
REF # | 55049G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
COWLING.,LWR,LH,VIOLET/ORANGE | |
REF # | 55049H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
COWLING.,LWR,RH,VIOLET/ORANGE | |
REF # | 55049I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
