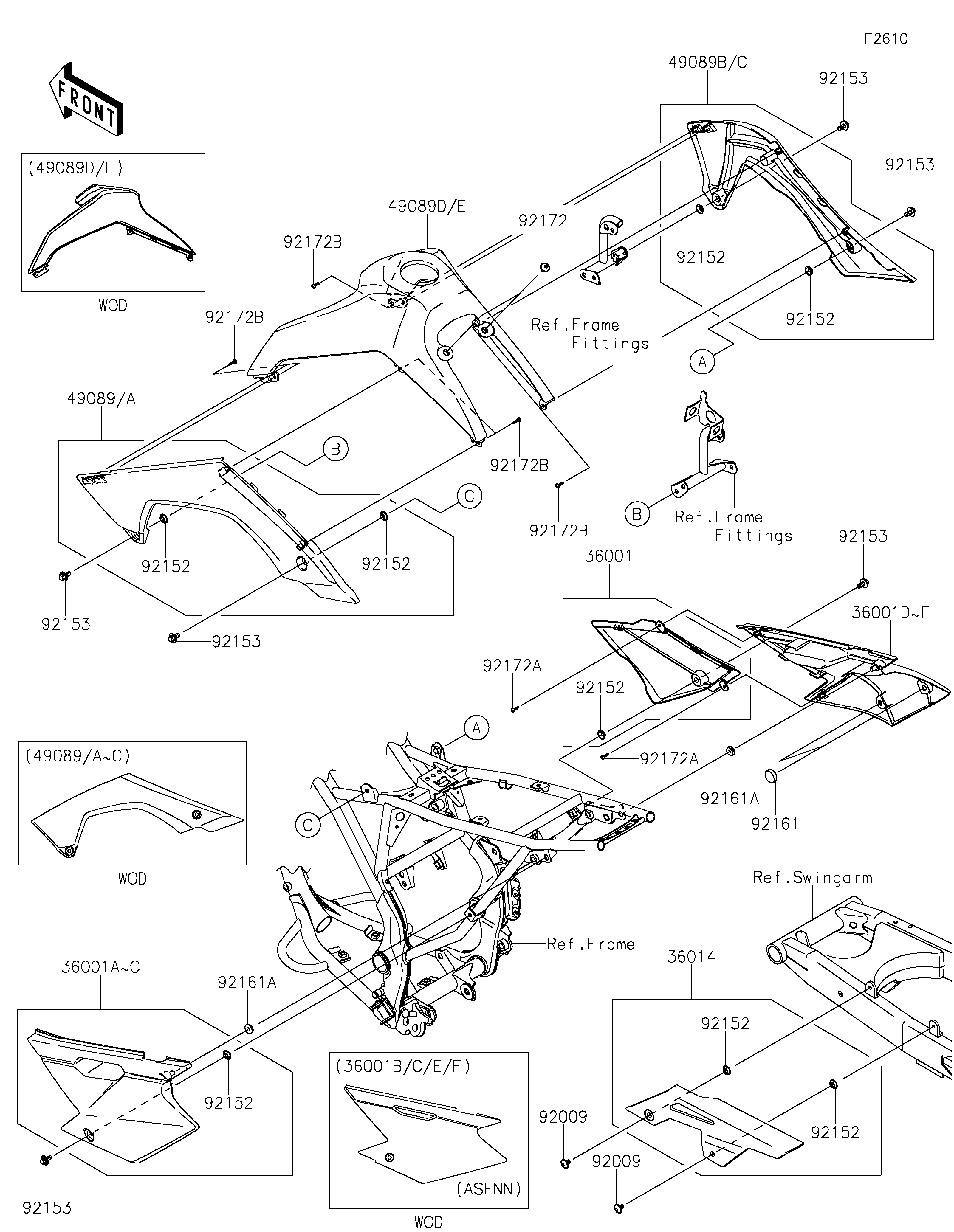

2024 KLX®140R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36001B
36001C
36001D
36001E
36001F
36014
49089
49089A
49089B
49089C
49089D
49089E
92009
92009
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92161
92161A
92161A
92172
92172A
92172A
92172B
92172B
92172B
92172B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,FR,RH,EBONY 36001 36001-0125-6C 1
COVER-SIDE,RR,LH,B.WHITE 36001A 36001-0154-266 1
COVER-SIDE,RR,LH,L.GREEN 36001B 36001-0154-290 1
COVER-SIDE,RR,LH,B.GRAY 36001C 36001-0154-67A 1
COVER-SIDE,RR,RH,B.WHITE 36001D 36001-0156-266 1
COVER-SIDE,RR,RH,L.GREEN 36001E 36001-0156-290 1
COVER-SIDE,RR,RH,B.GRAY 36001F 36001-0156-67A 1
CASE-CHAIN 36014 36014-0044 1
SHROUD-ENGINE,LH,L.GREEN 49089 49089-0053-290 1
SHROUD-ENGINE,LH,B.GRAY 49089A 49089-0053-67A 1
SHROUD-ENGINE,RH,L.GREEN 49089B 49089-0054-290 1
SHROUD-ENGINE,RH,B.GRAY 49089C 49089-0054-67A 1
SHROUD-ENGINE,UPP,L.GREEN 49089D 49089-0954-290 1
SHROUD-ENGINE,UPP,B.GRAY 49089E 49089-0954-67A 1
SCREW,6X10 92009 92009-1729 2
COLLAR,8.8X11.2X4 92152 92152-0909 8
BOLT,FLANGED,6X14 92153 92153-0936 6
DAMPER 92161 92161-0336 2
DAMPER 92161A 92161-0631 2
SCREW,6X10 92172 92172-0098 2
SCREW,TAPPING,4X12 92172A 92172-0233 2
SCREW,TAPPING,4X12 92172B 92172-1451 8
