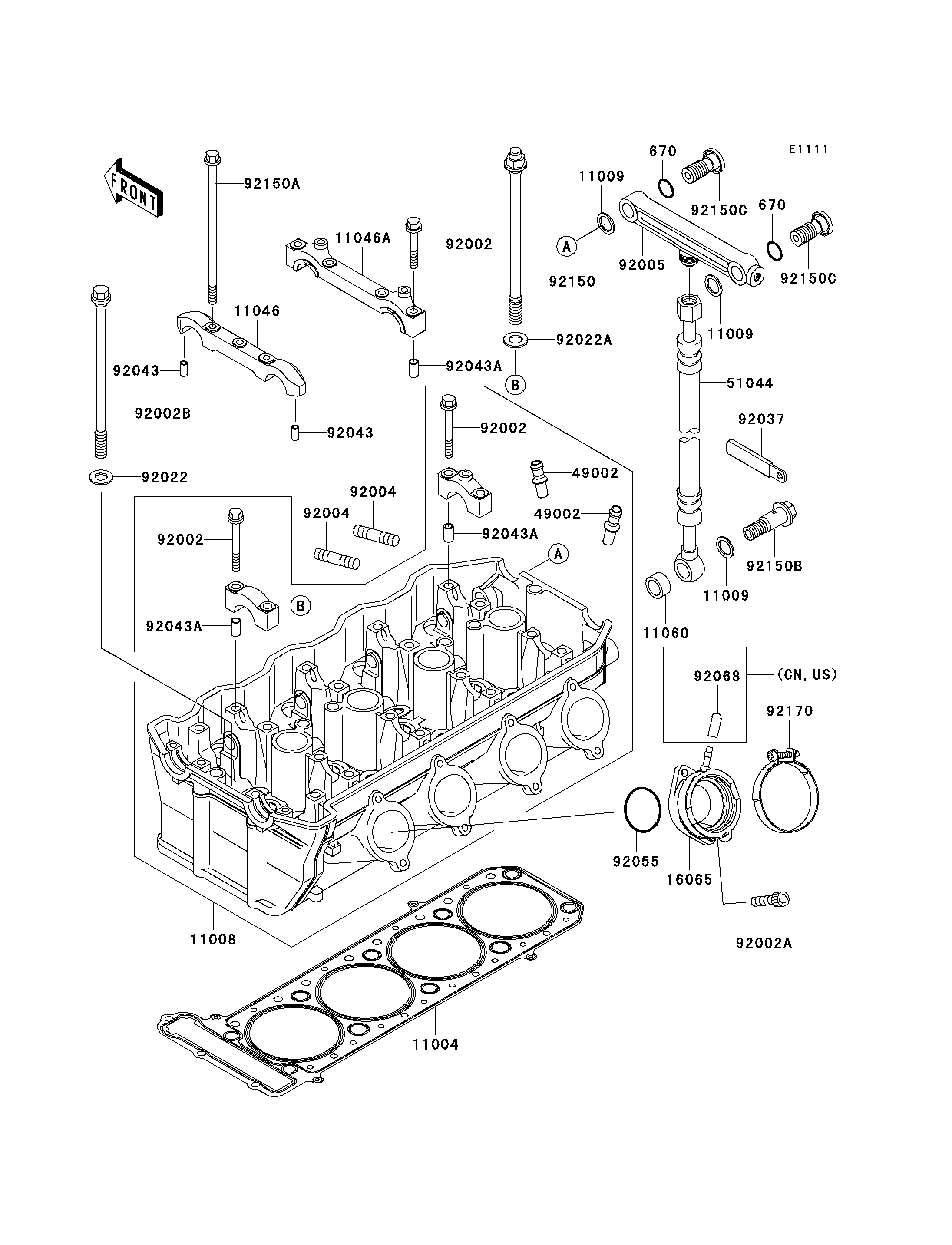

1996 Ninja® ZX™-11 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
670
670
11004
11008
11009
11009
11009
11046
11046A
11060
16065
49002
49002
51044
92002
92002
92002
92002A
92002B
92004
92004
92005
92022
92022A
92037
92043
92043
92043A
92043A
92043A
92055
92150
92150A
92150B
92150C
92150C
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,15MM 670 670B2015 2
GASKET-HEAD 11004 11004-1248 1
HEAD-COMP-CYLINDER 11008 11008-1281 1
GASKET,14X19.5X1.4 11009 11009-1461 3
BRACKET,CAMSHAFT,#9 11046 11046-1150 1
BRACKET,CAMSHAFT,#10 11046A 11046-1151 1
GASKET 11060 11060-1369 1
HOLDER-CARBURETOR 16065 16065-1210 4
GUIDE-VALVE 49002 49002-1097 AR
TUBE-ASSY 51044 51044-1094 1
BOLT,6X40 92002 92002-1756 18
BOLT,SOCKET,6X16 92002A 92002-1778 8
BOLT,10X164 92002B 92002-1943 4
STUD,8X22 92004 92004-1181 8
FITTING 92005 92005-1168 1
WASHER,10.5X20X1.6 92022 92022-1591 4
WASHER,11.5X20.5X1.6 92022A 92022-1720 6
CLAMP 92037 92037-1997 1
PIN,4.2X6X12 92043 92043-1262 2
PIN,6.2X8X14 92043A 92043-1263 18
RING-O,43.7X1.9 92055 92055-1401 4
BOLT,11X164 92150 92150-1075 6
BOLT,6X148 92150A 92150-1076 2
BOLT,BANJO,12X40.5 92150B 92150-1077 1
BOLT 92150C 92150-1078 2
CLAMP 92170 92170-1160 4
PLUG,12X25 92068 92068-006 2 CNUS
