Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

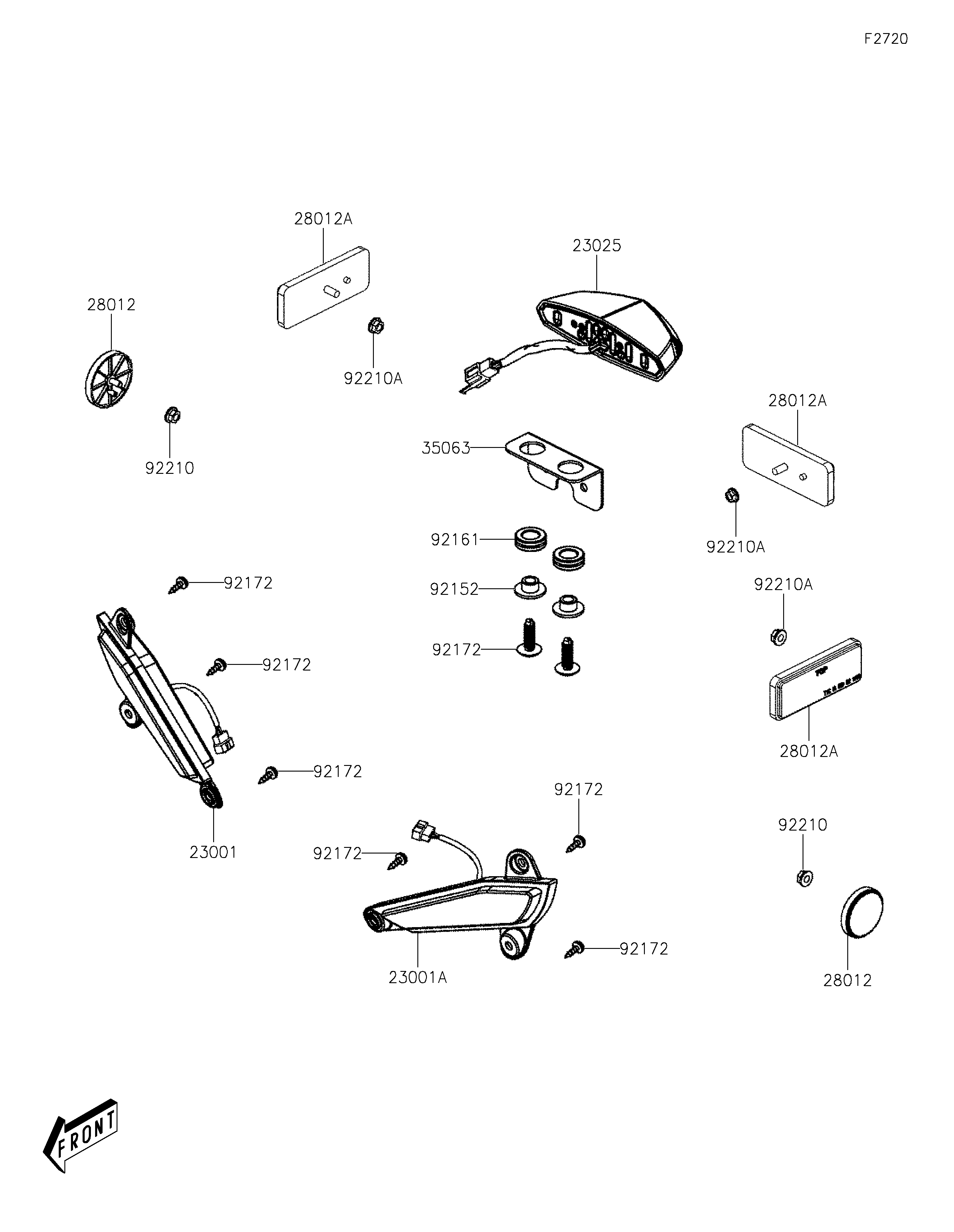

23001
23001A
23025
28012
28012
28012A
28012A
28012A
35063
92152
92161
92172
92172
92172
92172
92172
92172
92172
92210
92210
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP-ASSY-HEAD,LED,RH | 23001 | 23001-Y002 | 1 | ||
| LAMP-ASSY-HEAD,LED,LH | 23001A | 23001-Y003 | 1 | ||
| LAMP-TAIL,LED | 23025 | 23025-Y011 | 1 | ||
| REFLECTOR-REFLEX | 28012 | 28012-Y002 | 2 | ||
| REFLECTOR-REFLEX | 28012A | 28012-Y003 | 3 | ||
| STAY,TAIL LIGHT | 35063 | 35063-Y047 | 1 | ||
| COLLAR | 92152 | 92152-Y077 | 2 | ||
| DAMPER | 92161 | 92161-Y058 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-Y020 | 8 | ||
| NUT,6MM | 92210 | 92210-Y026 | 2 | ||
| NUT,FLANGE,5MM | 92210A | 92210-Y053 | 3 |
