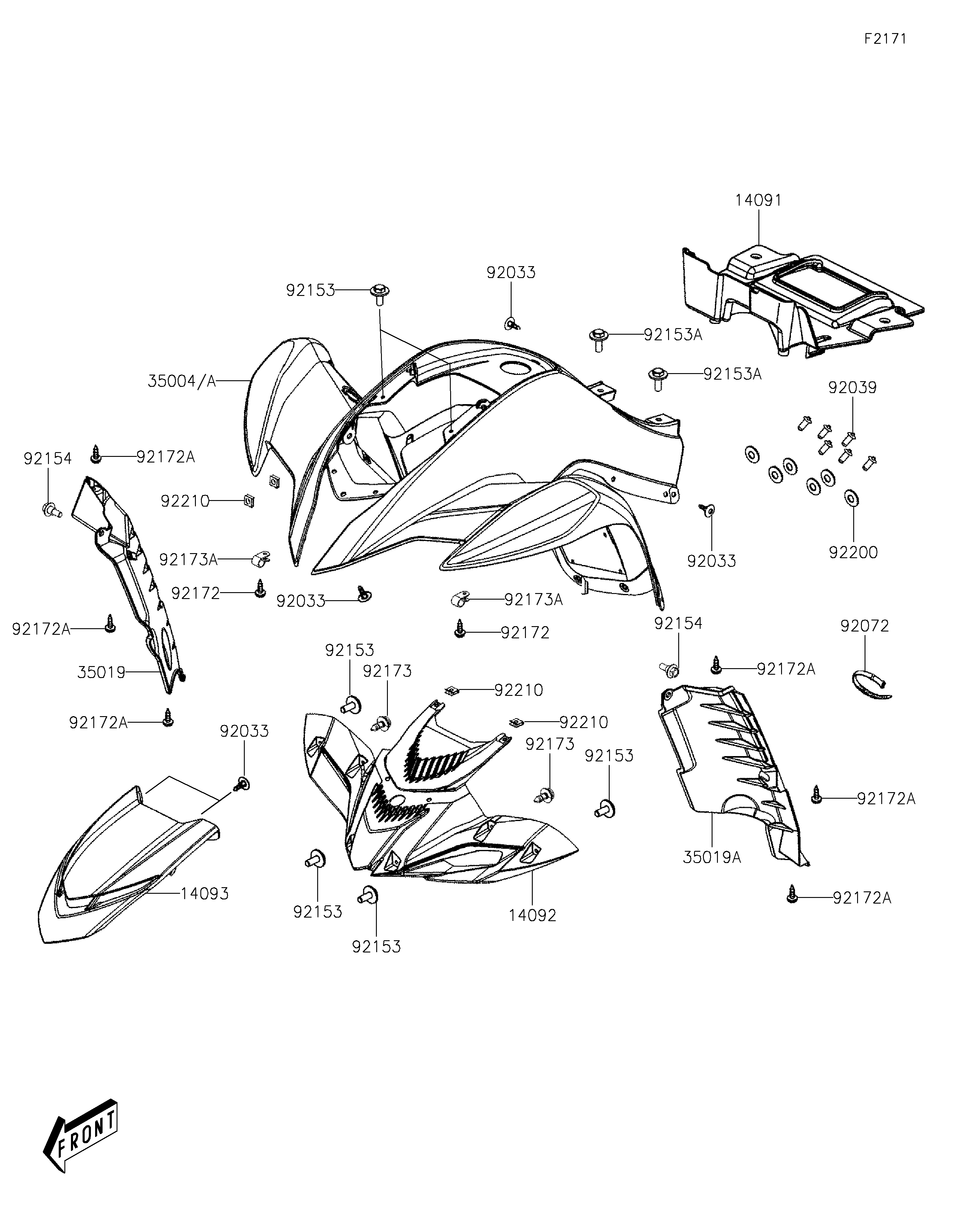

2025 KFX90 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14091
14092
14093
35004
35004A
35019
35019A
92033
92033
92033
92033
92039
92072
92153
92153
92153
92153
92153
92153A
92153A
92154
92154
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92173A
92173A
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,INNER,BLACK 14091 14091-Y013-933 1
COVER,HEAD LAMP,S.BLACK 14092 14092-Y067-933 1
COVER,CENTER,S.BLACK 14093 14093-Y060-933 1
FENDER-FRONT,L.GREEN 35004 35004-Y014-930 1
FENDER-FRONT,GRAY 35004A 35004-Y014-985 1
FLAP,MUDGUARD,RH,S.BLACK 35019 35019-Y006-933 1
FLAP,MUDGUARD,LH,S.BLACK 35019A 35019-Y007-933 1
RIVET 92033 92033-Y010 7
RIVET,3.2X9.8 92039 92039-Y001 6
BAND 92072 92072-Y003 1
BOLT,5X16 92153 92153-Y013 6
BOLT,6X16 92153A 92153-Y018 2
BOLT,FLANGE,6MM 92154 92154-Y181 2
SCREW,4X12 92172 92172-Y019 2
SCREW,TAPPING,5X16 92172A 92172-Y020 6
CLAMP 92173 92173-Y019 2
CLAMP 92173A 92173-Y088 2
WASHER,3MM 92200 92200-Y017 6
NUT,5MM 92210 92210-Y016 6
