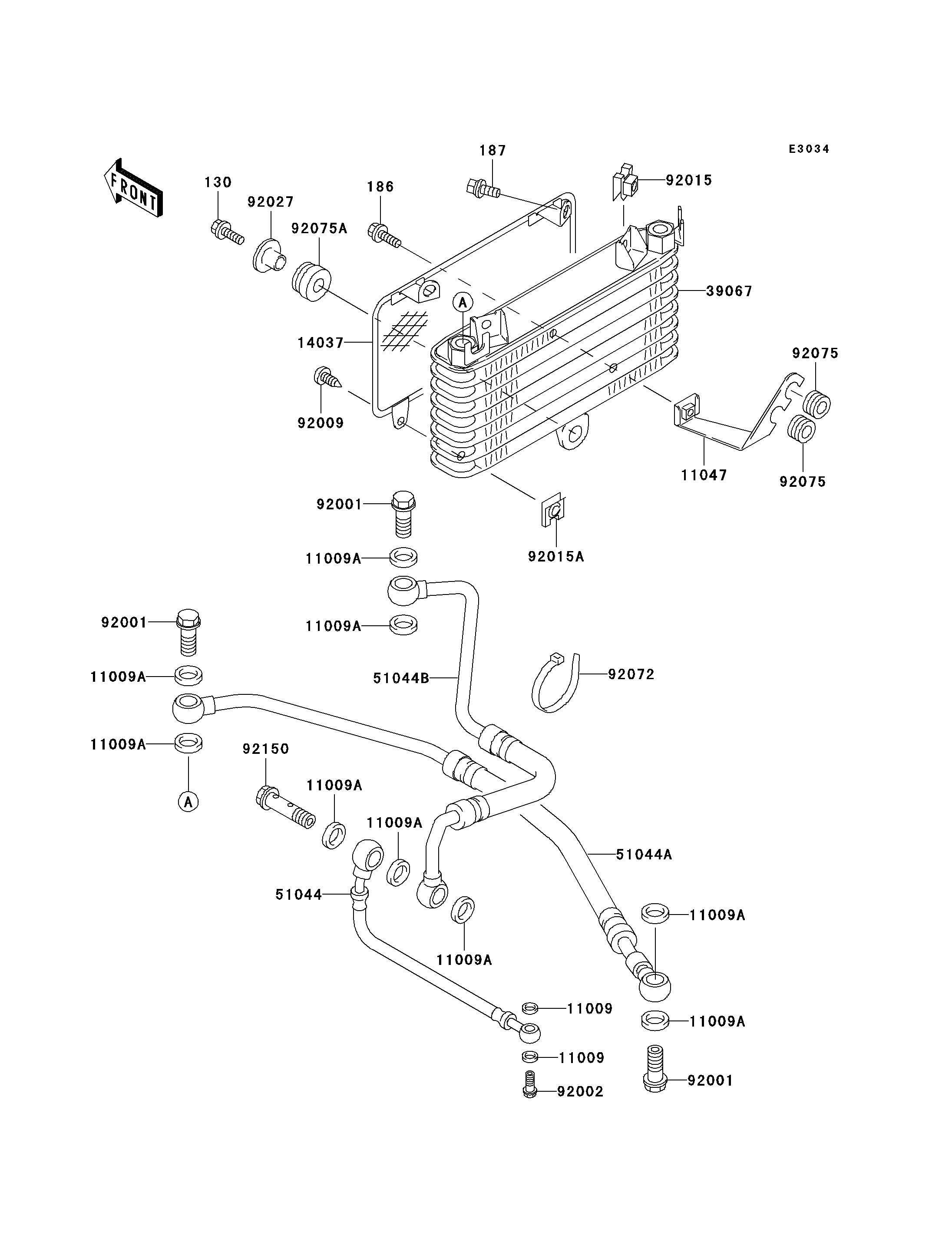

1996 Ninja® ZX™-11 - Oil Cooler

DOWNLOAD PDF
SELECT A NEW PART
130
186
187
11009
11009
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11047
14037
39067
51044
51044A
51044B
92001
92001
92001
92002
92009
92015
92015A
92027
92072
92075
92075
92075A
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 1
BOLT-UPSET-WP 186 186G0612 1
BOLT-UPSET-WSP 187 187G0616 2
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 2
GASKET,14X19.5X1.4 11009A 11009-1461 9
BRACKET,OIL TUBE 11047 11047-1888 1
SCREEN,OIL COOLER 14037 14037-1173 1
COOLER-OIL 39067 39067-1060 1
TUBE-ASSY,OIL 51044 51044-1130 1
TUBE-ASSY,LH 51044A 51044-1152 1
TUBE-ASSY,RH 51044B 51044-1153 1
BOLT,14X28.5 92001 92001-1930 3
BOLT,BANJO,8X20 92002 92002-1429 1
SCREW,TAPPING,6MM 92009 92009-1261 1
NUT 92015 92015-1487 2
NUT,6MM 92015A 92015-1758 1
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 1
BAND,L=250 92072 92072-1237 1
DAMPER,OIL COOLER 92075 92075-1942 2
DAMPER 92075A 92075-277 1
BOLT,BANJO,14X46 92150 92150-1324 1
