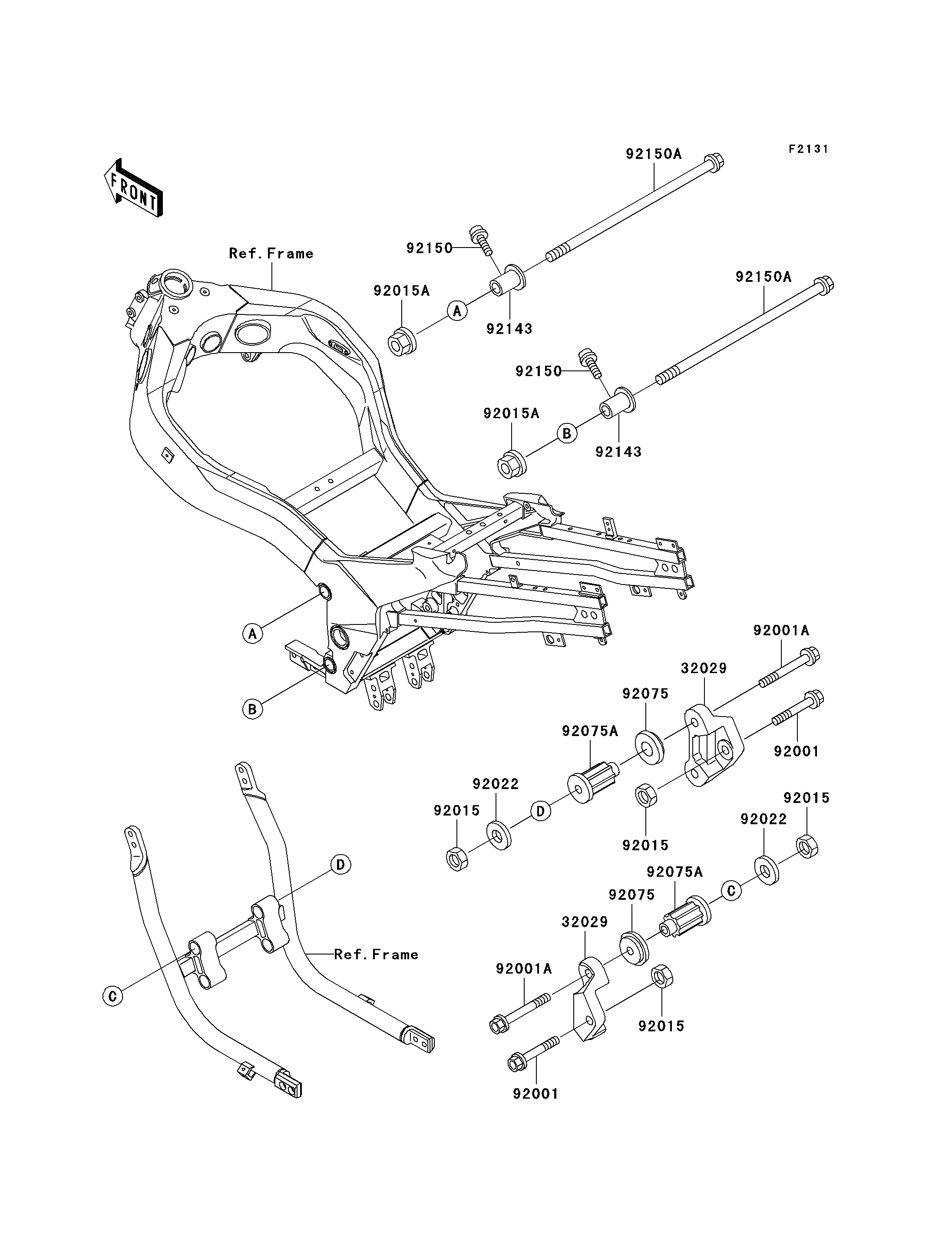

1996 Ninja® ZX™-11 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
32029
32029
92001
92001
92001A
92001A
92015
92015
92015
92015
92015A
92015A
92022
92022
92075
92075
92075A
92075A
92143
92143
92150
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE 32029 32029-1615 2
BOLT,FLANGED,10X60 92001 92001-1617 2
BOLT,FLANGED,10X85 92001A 92001-1619 4
NUT,LOCK,10MM 92015 92015-1429 6
NUT,LOCK,10MM 92015A 92015-1522 2
WASHER,10.5X37X1.6 92022 92022-1246 4
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 4
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1377 4
COLLAR,ENGINE MOUNT,L=26.5 92143 92143-1615 2
BOLT,SOCKET,8X30 92150 92150-1156 2
BOLT,FLANGED,10X235 92150A 92150-1263 2
