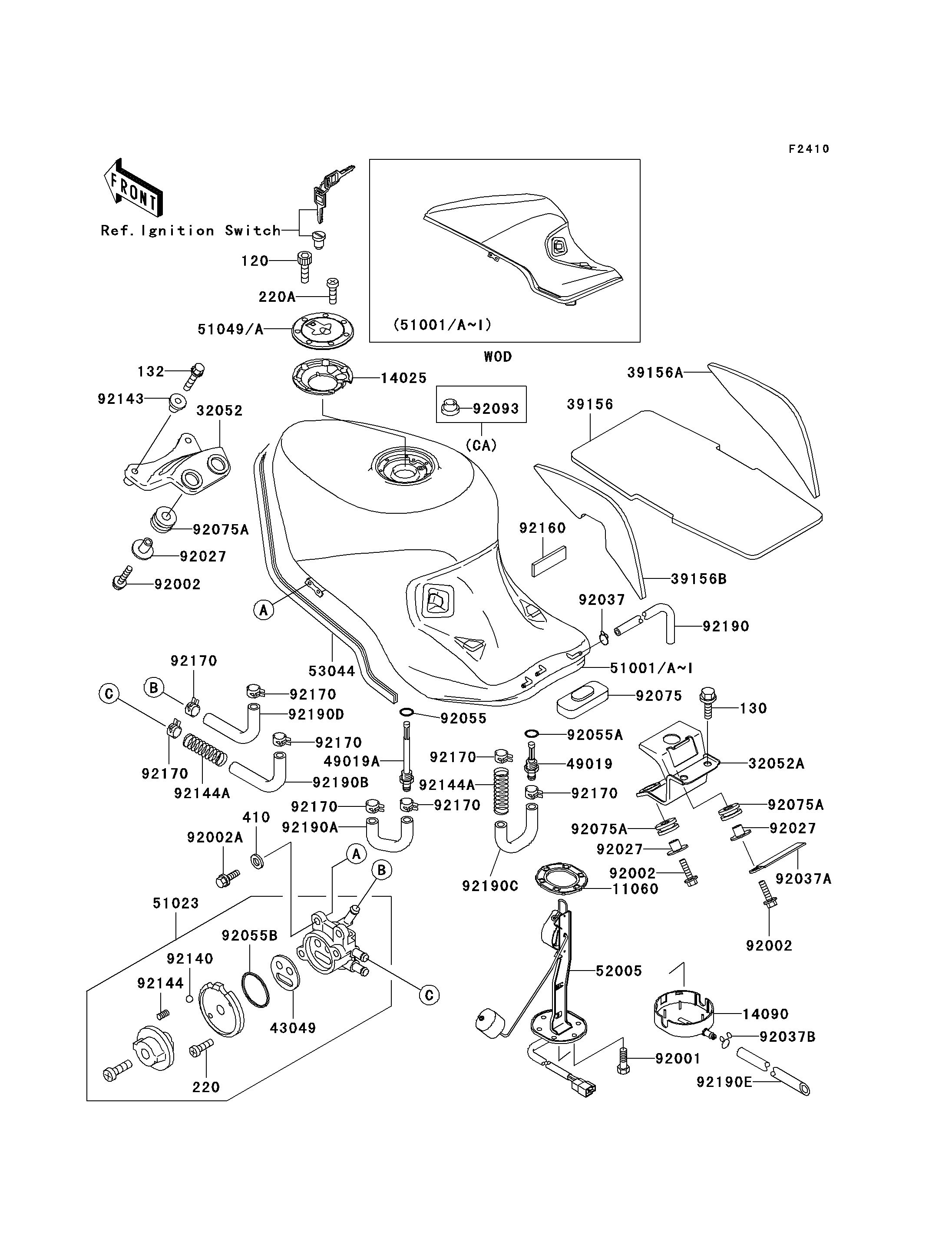

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11060
11060
11060
14025
14025
14025
14090
14090
14090
32052
32052
32052
32052A
32052A
32052A
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
43049
43049
43049
49019
49019
49019
49019A
49019A
49019A
51023
51023
51023
51049A
51049A
51049A
120
120
120
130
130
130
132
132
132
220
220
220
52005
52005
52005
53044
53044
53044
92001
92001
92001
92002
92002
92002
92002
92002
92002
92002
92002
92002
92002A
92002A
92002A
92027
92027
92027
92027
92027
92027
92027
92027
92027
92037
92037
92037
92037A
92037A
92037A
92037B
92037B
92037B
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92140
92140
92140
92143
92143
92143
92144
92144
92144
92144A
92144A
92144A
92144A
92144A
92144A
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190
92190
92190A
92190A
92190A
92190B
92190B
92190B
92190C
92190C
92190C
92190D
92190D
92190D
92190E
92190E
92190E
220A
220A
220A
410
410
410
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL GAUGE | 11060 | 11060-1337 | 1 | ||
COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
COVER,FUEL GAUGE | 14090 | 14090-1310 | 1 | ||
BRACKET-TANK,FR | 32052 | 32052-1370 | 1 | ||
BRACKET-TANK,RR | 32052A | 32052-1371 | 1 | ||
PAD,FUEL TANK,CNT | 39156 | 39156-1334 | 1 | ||
PAD,FUEL TANK,RH | 39156A | 39156-1335 | 1 | ||
PAD,FUEL TANK,LH | 39156B | 39156-1336 | 1 | ||
PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
FILTER-FUEL | 49019 | 49019-1070 | 1 | ||
FILTER-FUEL,"ON" | 49019A | 49019-1076 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1195 | 1 | ||
CAP-TANK,FUEL | 51049A | 51049-1091 | 1 | ||
BOLT-SOCKET | 120 | 120S0512 | 7 | ||
BOLT-FLANGED,8X20 | 130 | 130J0820 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132J0635 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
GAUGE,FUEL | 52005 | 52005-1114 | 1 | ||
TRIM,L=1930 | 53044 | 53044-1268 | 1 | ||
BOLT,FUEL GAUGE | 92001 | 92001-1069 | 6 | ||
BOLT,6X20 | 92002 | 92002-1237 | 4 | ||
BOLT,6X14 | 92002A | 92002-1700 | 2 | ||
COLLAR,L=13.1 | 92027 | 92027-251 | 4 | ||
CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
CLAMP,WIRING HARNESS,L=60 | 92037A | 92037-1069 | 1 | ||
CLAMP,TUBE | 92037B | 92037-147 | 1 | ||
RING-O,ID=9.5 | 92055 | 92055-1386 | 1 | ||
RING-O,11.5X1.5 | 92055A | 92055-1387 | 1 | ||
RING-O,TAP LEVER | 92055B | 92055-1419 | 1 | ||
DAMPER,FUEL TANK,RR | 92075 | 92075-1114 | 1 | ||
DAMPER | 92075A | 92075-1690 | 4 | ||
BALL,STAINLESS,5/32" | 92140 | 92140-1051 | 1 | ||
COLLAR,L=6.6 | 92143 | 92143-1088 | 2 | ||
SPRING,FUEL TAP KNOB | 92144 | 92144-1212 | 1 | ||
SPRING,TUBE PROTECTOR | 92144A | 92144-1722 | 2 | ||
DAMPER | 92160 | 92160-3720 | 1 | ||
CLAMP | 92170 | 92170-1492 | 8 | ||
TUBE,5X8X230 | 92190 | 92190-1365 | 1 | ||
TUBE,"ON",FILTER-TANK | 92190A | 92190-1424 | 1 | ||
TUBE,"ON",TANK-TAP | 92190B | 92190-1425 | 1 | ||
TUBE,"RES",FILTER-TANK | 92190C | 92190-1426 | 1 | ||
TUBE,"RES",TANK-TAP | 92190D | 92190-1427 | 1 | ||
TUBE,7X10X230 | 92190E | 92190-1434 | 1 | ||
SCREW-PAN-CROS | 220A | 220C0508 | 1 | ||
WASHER-PLAIN-SMALL,6MM,BLACK | 410 | 410F0600 | 2 | ||
TANK-COMP-FUEL,L.W.GREEN | 51001 | 51001-1400-DS | 1 | CN | |
TANK-COMP-FUEL,C.W.RED | 51001B | 51001-1400-TF | 1 | US | |
TANK-COMP-FUEL,L.W.GREEN | 51001E | 51001-1400-24 | 1 | US | |
TANK-COMP-FUEL,C.W.RED | 51001G | 51001-1494-TF | 1 | CA | |
TANK-COMP-FUEL,L.W.GREEN | 51001I | 51001-1494-24 | 1 | CA | |
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA |
GASKET,FUEL GAUGE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,TANK CAP | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FUEL GAUGE | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TANK,FR | |
REF # | 32052 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-TANK,RR | |
REF # | 32052A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,CNT | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,RH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,LH | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,TAP VALVE | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL | |
REF # | 49019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL,"ON" | |
REF # | 49019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GAUGE,FUEL | |
REF # | 52005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=1930 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FUEL GAUGE | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=13.1 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS,L=60 | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ID=9.5 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,11.5X1.5 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,TAP LEVER | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,RR | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BALL,STAINLESS,5/32" | |
REF # | 92140 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=6.6 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,FUEL TAP KNOB | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,TUBE PROTECTOR | |
REF # | 92144A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
TUBE,5X8X230 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"ON",FILTER-TANK | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"ON",TANK-TAP | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"RES",FILTER-TANK | |
REF # | 92190C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"RES",TANK-TAP | |
REF # | 92190D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,7X10X230 | |
REF # | 92190E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM,BLACK | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,L.W.GREEN | |
REF # | 51001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
TANK-COMP-FUEL,C.W.RED | |
REF # | 51001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
TANK-COMP-FUEL,L.W.GREEN | |
REF # | 51001E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
TANK-COMP-FUEL,C.W.RED | |
REF # | 51001G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TANK-COMP-FUEL,L.W.GREEN | |
REF # | 51001I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
