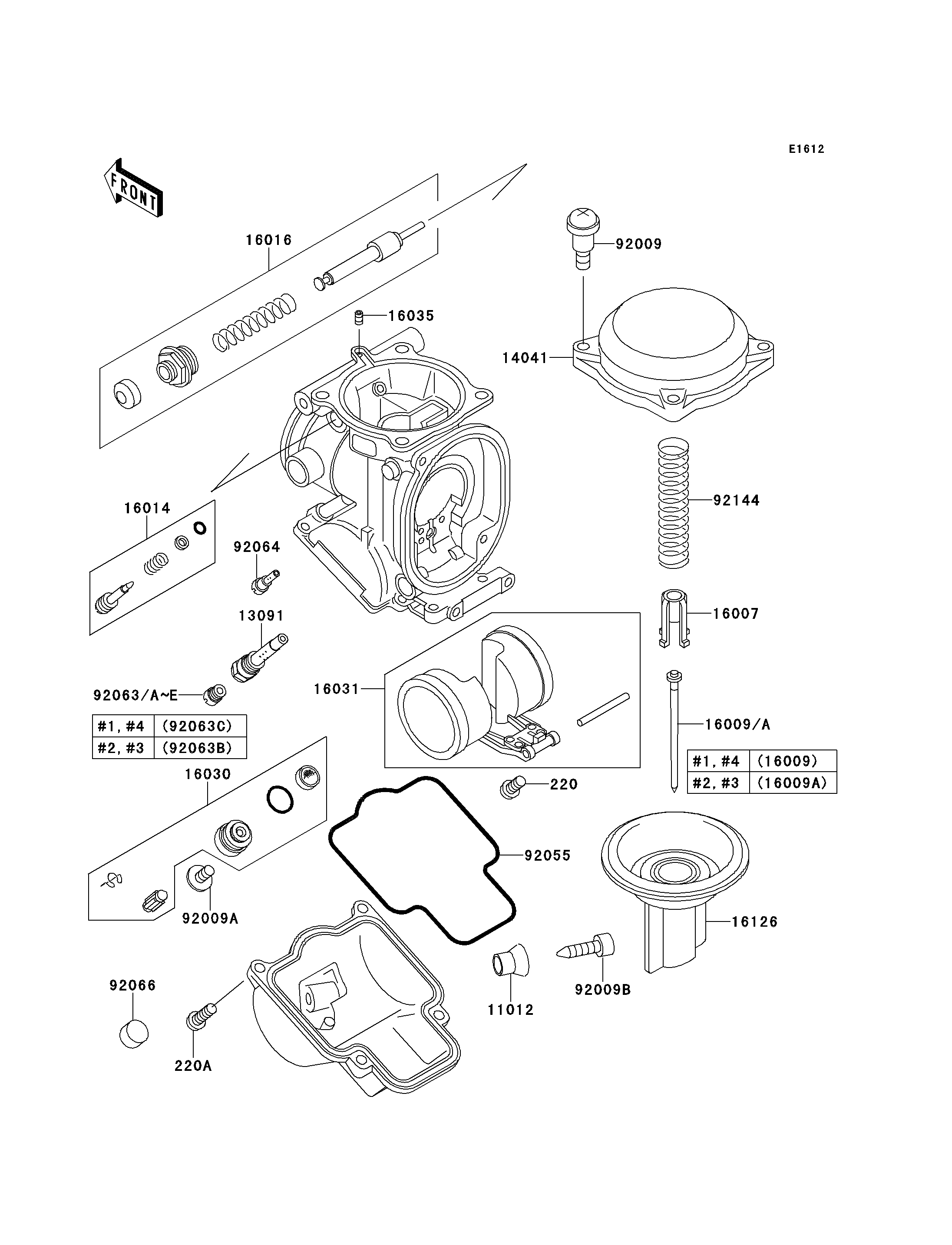

2001 Ninja® ZX™-11 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
220A
11012
13091
14041
16007
16009
16009A
16014
16016
16030
16031
16035
16126
92009
92009A
92009B
92055
92063
92063A
92063B
92063C
92063D
92063E
92064
92066
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0408 4
SCREW-PAN-CROS 220A 220D0414 16
CAP,DRAIN SCREW 11012 11012-1675 4
HOLDER,NEEDLE JET 13091 13091-1698 4
COVER-COMP,MIXING 14041 14041-1100 4
SEAT-SPRING,VALVE 16007 16007-1117 4
NEEDLE-JET,N96K 16009 16009-1671 2
NEEDLE-JET,N5AK 16009A 16009-1969 2
SCREW-PILOT AIR 16014 16014-1086 4
PLUNGER,STARTER 16016 16016-1090 4
VALVE-FLOAT 16030 16030-1077 4
FLOAT 16031 16031-1080 4
JET-AIR,LEAK 16035 16035-1055 4
VALVE,VACUMM 16126 16126-1345 4
SCREW,4X4.4 92009 92009-1549 15
SCREW,4X8 92009A 92009-1550 4
SCREW,DRAIN,M6X0.75 92009B 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1426 4
JET-MAIN,#152 92063 92063-1331 4 (RACING USE ONLY)
JET-MAIN,#155 92063A 92063-1332 4 (RACING USE ONLY)
JET-MAIN,#158 92063B 92063-1344 2
JET-MAIN,#160 92063C 92063-1345 2
JET-MAIN,#162 92063D 92063-1346 4 (RACING USE ONLY)
JET-MAIN,#165 92063E 92063-1347 4 (RACING USE ONLY)
JET-PILOT,#38 92064 92064-1119 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,THROTTLE VALVE 92144 92144-1535 4
