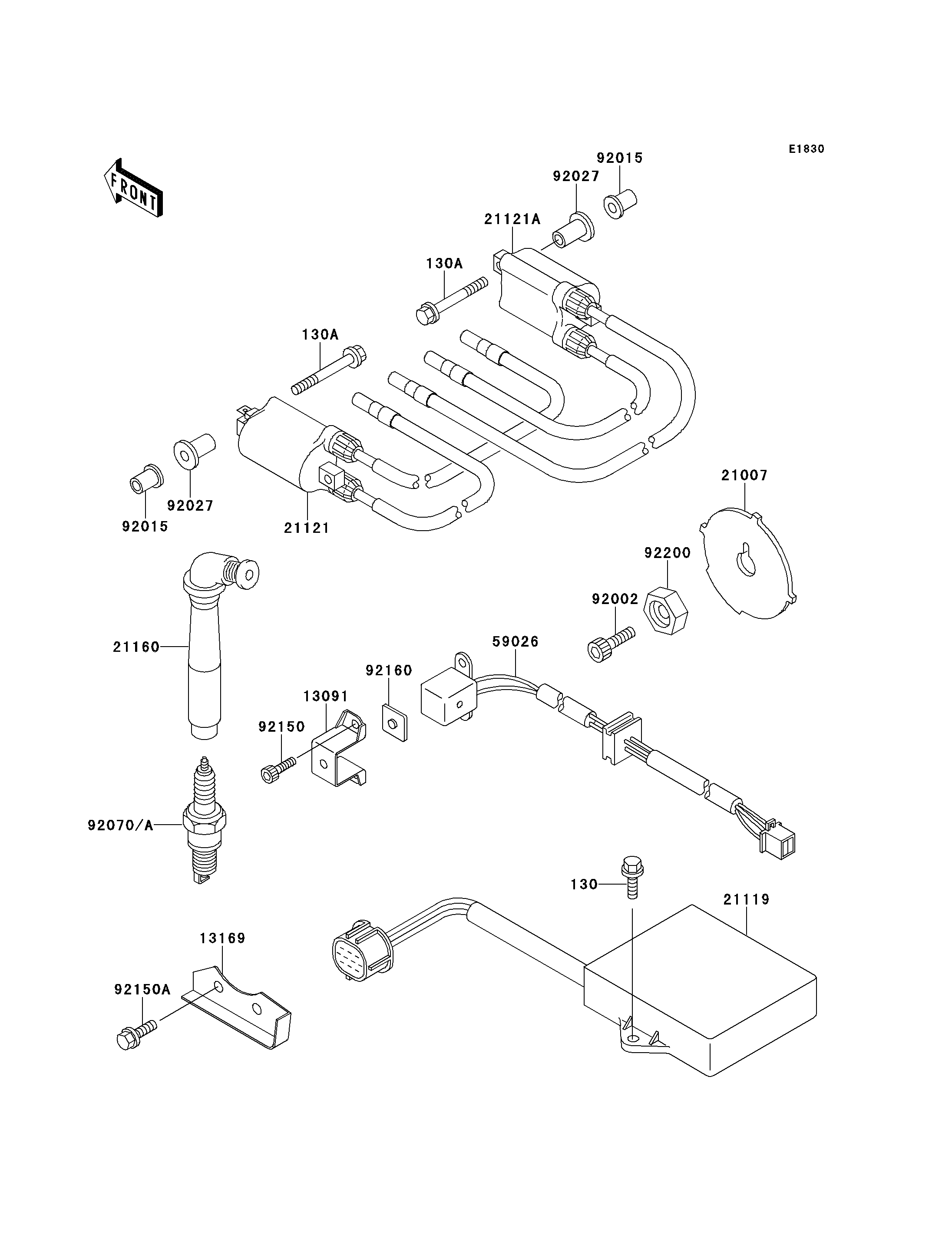

2001 Ninja® ZX™-11 - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
13091
13169
21007
21119
21121
21121A
21160
59026
92002
92015
92015
92027
92027
92070
92070A
92150
92150A
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130G0612 2
BOLT-FLANGED,6X45 130A 130G0645 4
HOLDER 13091 13091-1562 1
PLATE,CHAIN GUIDE 13169 13169-1748 1
ROTOR,PULSING 21007 21007-1214 1
IGNITER 21119 21119-1386 1
COIL-IGNITION,#1&#4 21121 21121-1220 1
COIL-IGNITION,#2&#3 21121A 21121-1221 1
CAP-ASSY-PLUG 21160 21160-1098 4
COIL-PULSING 59026 59026-1118 1
BOLT,SOCKET,8X25 92002 92002-1442 1
NUT 92015 92015-1700 4
COLLAR,L=21 92027 92027-195 4
PLUG-SPARK,U27ESR-N(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,CR9E(NGK) 92070A 92070-1266 4
BOLT,SOCKET,5X14 92150 92150-1180 2
BOLT,6X12 92150A 92150-1841 2
DAMPER 92160 92160-1091 1
WASHER,ROTOR 92200 92200-1173 1
