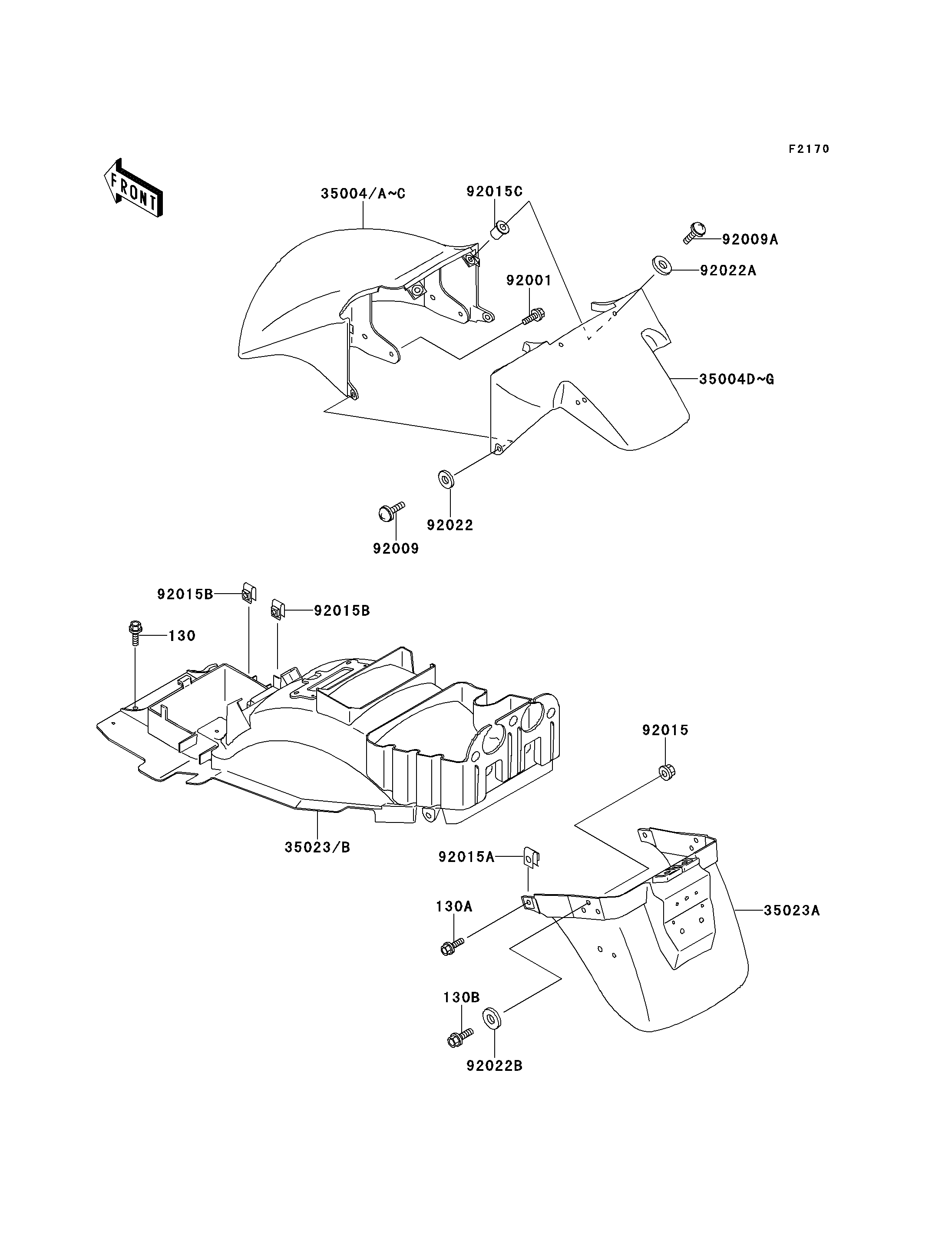

Parts Diagrams |
130
130A
130B
35004C
35004G
35023A
92001
92009
92009A
92015
92015A
92015B
92015B
92015C
92022
92022A
92022B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0612 | 2 | ||
BOLT-FLANGED,6X14,BLACK | 130A | 130J0614 | 2 | ||
BOLT-FLANGED | 130B | 130J0620 | 2 | ||
FENDER-FRONT,FR,L.V.RED | 35004C | 35004-1309-2T | 1 | ||
FENDER-FRONT,RR,L.V.RED | 35004G | 35004-1310-2T | 1 | ||
FENDER-REAR,RR | 35023A | 35023-1349 | 1 | ||
BOLT,W/SP,6X16 | 92001 | 92001-1763 | 4 | ||
SCREW,6X14 | 92009 | 92009-1611 | 2 | ||
SCREW,5X18 | 92009A | 92009-1655 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 2 | ||
NUT,6MM | 92015A | 92015-1094 | 2 | ||
NUT,6MM | 92015B | 92015-1671 | 2 | ||
NUT,WELL,5MM | 92015C | 92015-1757 | 2 | ||
WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 2 | ||
WASHER,6.5X16X2 | 92022B | 92022-1565 | 2 | ||
FENDER-REAR,FR | 35023 | 35023-1343 | 1 | US | |
FENDER-REAR,FR | 35023B | 35023-1351 | 1 | CA |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X14,BLACK | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FENDER-FRONT,FR,L.V.RED | |
REF # | 35004C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-FRONT,RR,L.V.RED | |
REF # | 35004G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FENDER-REAR,RR | |
REF # | 35023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,W/SP,6X16 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X18 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,WELL,5MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5X1.5 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X2 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FENDER-REAR,FR | |
REF # | 35023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | US |
REMARKS |
FENDER-REAR,FR | |
REF # | 35023B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
