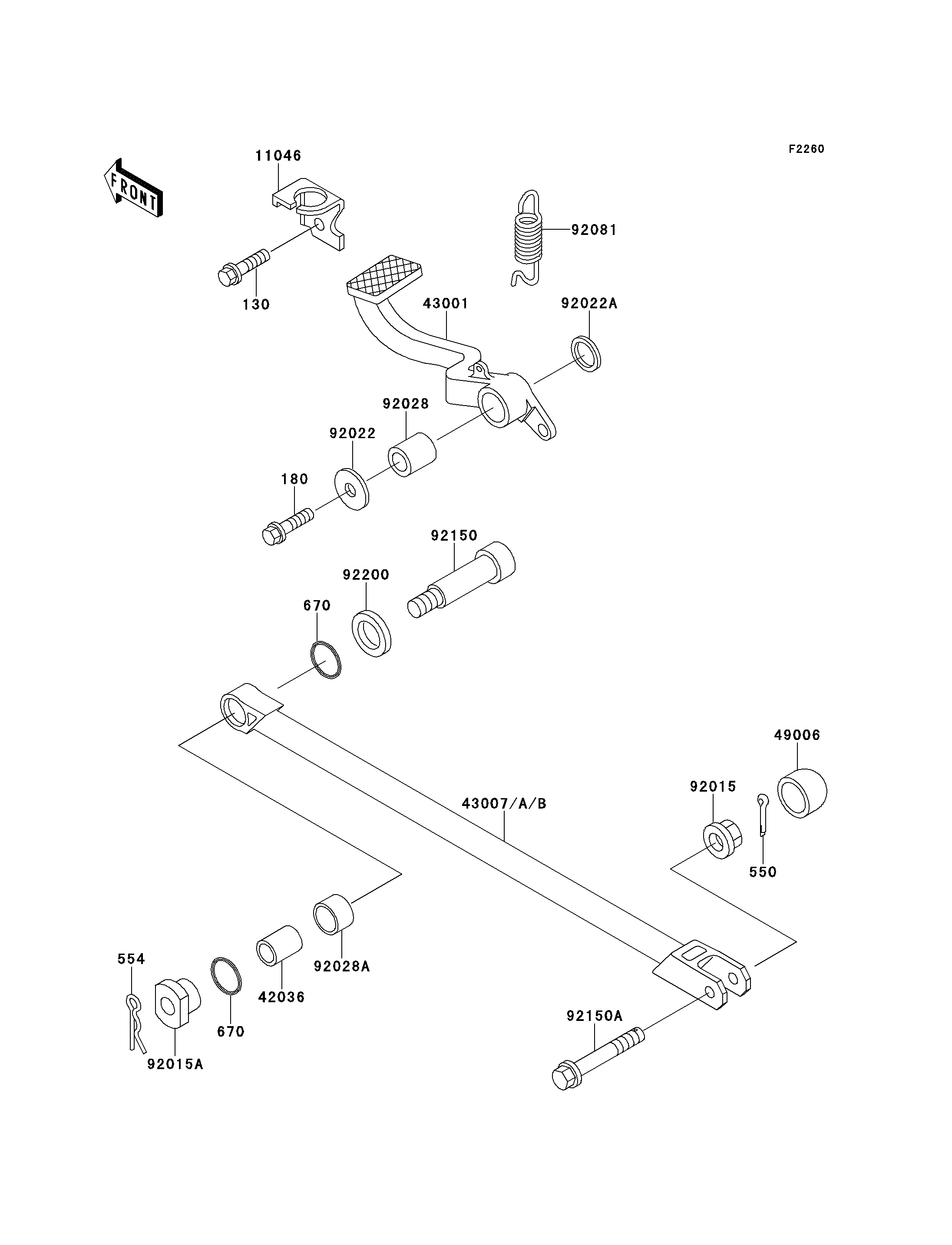

2001 Ninja® ZX™-11 - Brake Pedal/Torque Link

DOWNLOAD PDF
SELECT A NEW PART
130
180
550
554
670
670
11046
42036
43001
43007
49006
92015
92015A
92022
92022A
92028
92028A
92081
92150
92150A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130H0610 1
BOLT-UPSET-WS 180 180H0614 1
PIN-COTTER,2.0X15 550 550D2015 1
PIN-SNAP,8MM 554 554A0800 1
O RING,16MM 670 670B2016 2
BRACKET,REAR BRAKE SWITCH 11046 11046-1252 1
SLEEVE,10.1X16X20 42036 42036-1242 1
LEVER-BRAKE,PEDAL 43001 43001-1292 1
ROD-TORQUE,P.C.GRAY 43007 43007-1165-CQ 1
BOOT 49006 49006-1218 1
NUT,8MM 92015 92015-1432 1
NUT,8MM 92015A 92015-1747 1
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,15.3X24X1 92022A 92022-326 1
BUSHING,BRAKE PEDAL 92028 92028-1282 1
BUSHING 92028A 92028-1468 1
SPRING,BRAKE PEDAL 92081 92081-1833 1
BOLT,SOCKET,8X61 92150 92150-1167 1
BOLT,FLANGED,8X47 92150A 92150-1539 1
WASHER,10MM 92200 92200-1313 1
