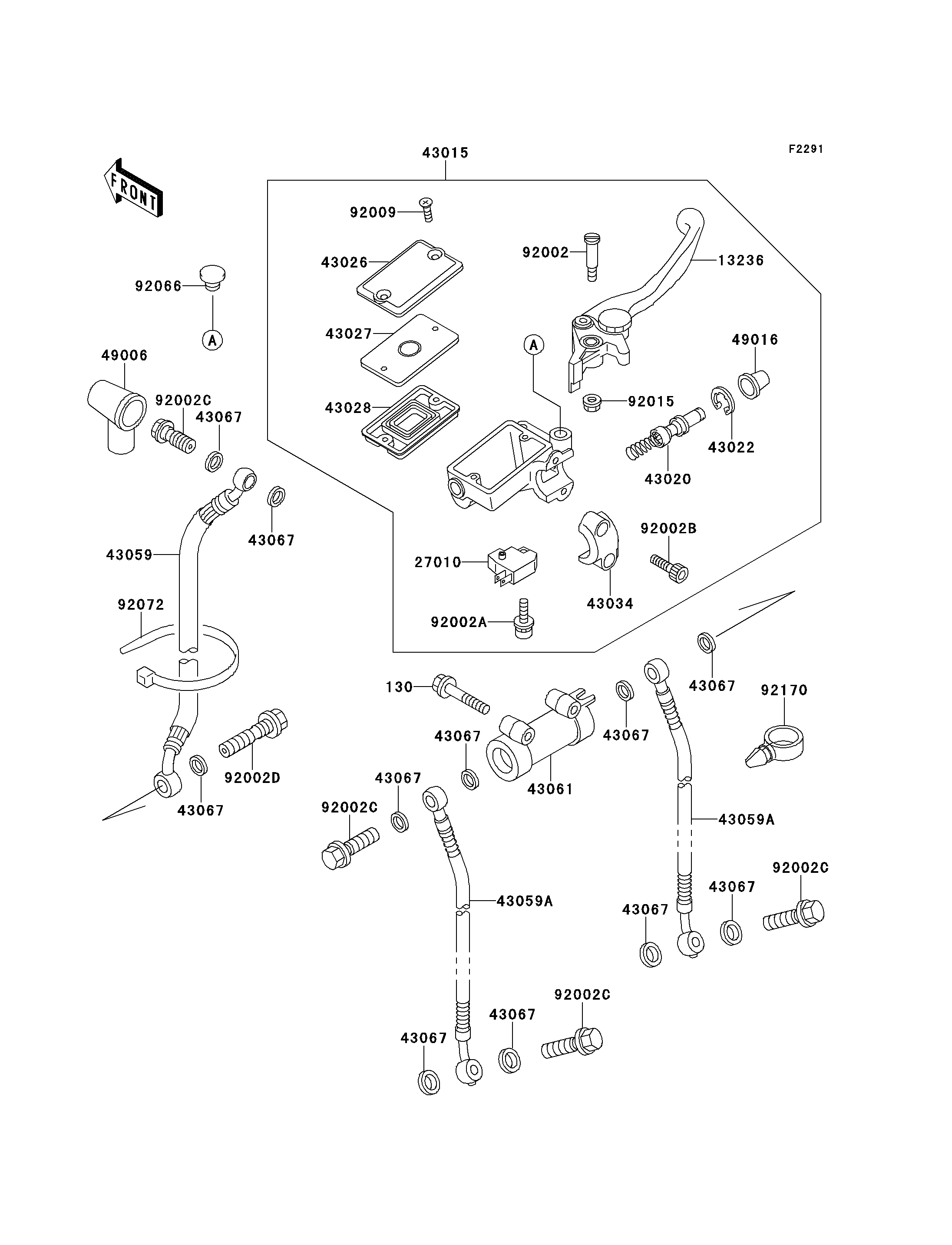

2001 Ninja® ZX™-11 - Front Master Cylinder
130
13236
27010
43015
43020
43022
43026
43027
43028
43034
43059
43059A
43059A
43061
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
49006
49016
92002
92002A
92002B
92002C
92002C
92002C
92002C
92002D
92009
92015
92066
92072
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X35 | 130 | 130J0635 | 2 | ||
LEVER-COMP,FRONT BRAKE | 13236 | 13236-1185 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1498 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1076 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1055 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | ||
HOSE-BRAKE,FR,UPP | 43059 | 43059-1832 | 1 | ||
HOSE-BRAKE,FR,LWR | 43059A | 43059-1833 | 2 | ||
JOINT-BRAKE | 43061 | 43061-1002 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 11 | ||
BOOT,DUST | 49006 | 49006-1040 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | ||
BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
BOLT,SOCKET,6X20,BLACK | 92002B | 92002-1324 | 2 | ||
BOLT,OIL,L=23 | 92002C | 92002-1888 | 4 | ||
BOLT,OIL,L=37 | 92002D | 92002-1909 | 1 | ||
SCREW,4MM | 92009 | 92009-1458 | 2 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | ||
BAND,L=365 | 92072 | 92072-1197 | 2 | ||
CLAMP | 92170 | 92170-1067 | 1 |
