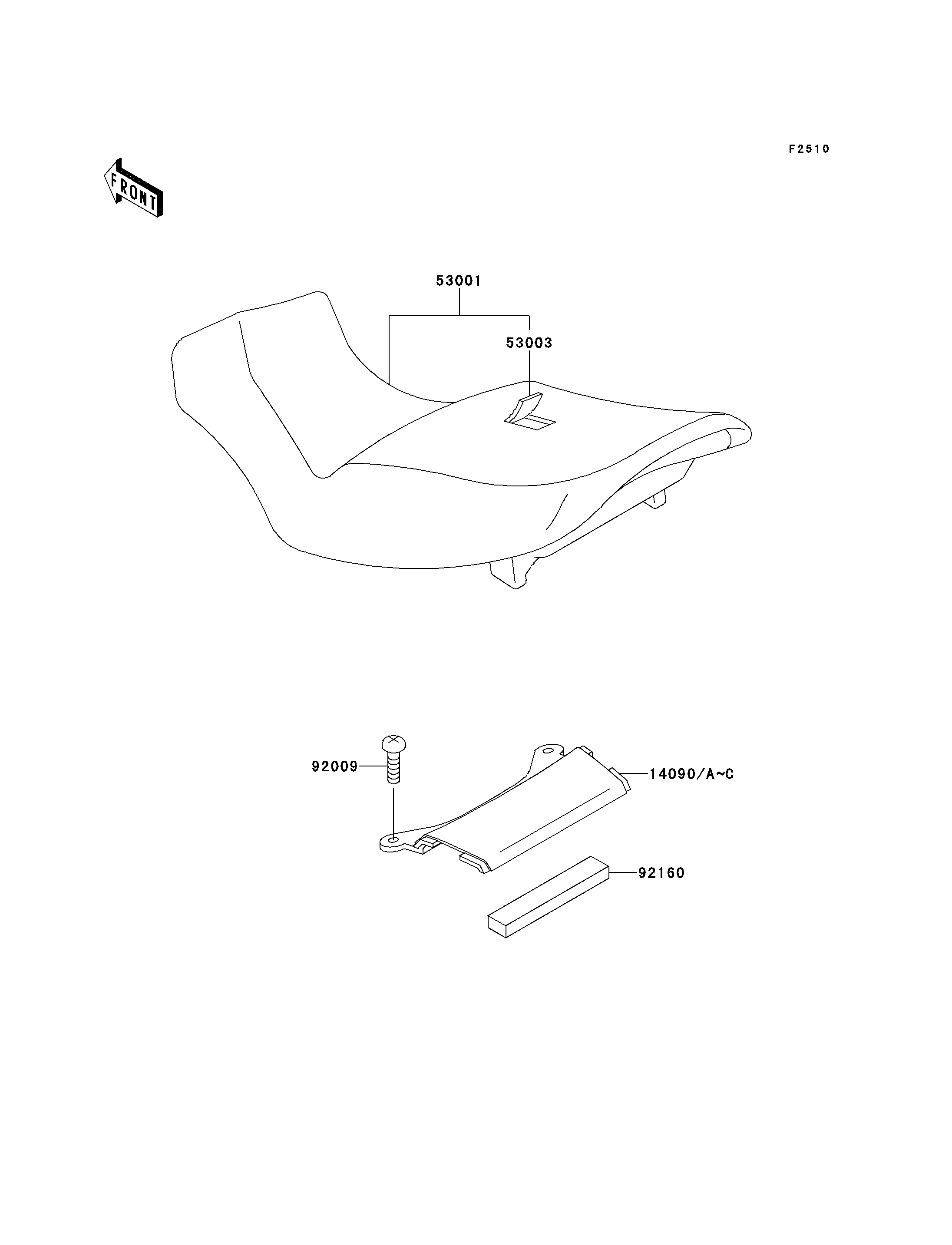

53001
53003
92009
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,DUAL,BLACK 53001 53001-1690-MA 1
LEATHER,SEAT,BLACK 53003 53003-1271-MA 1
SCREW,6X18,BLACK 92009 92009-1181 2
DAMPER 92160 92160-1430 1
COVER,TAIL,C.W.RED 14090 14090-1280-H3 1 CN
COVER,TAIL,EBONY 14090A 14090-1280-H8 1 CN
COVER,TAIL,C.W.RED 14090B 14090-1280-TF 1 CAUS
