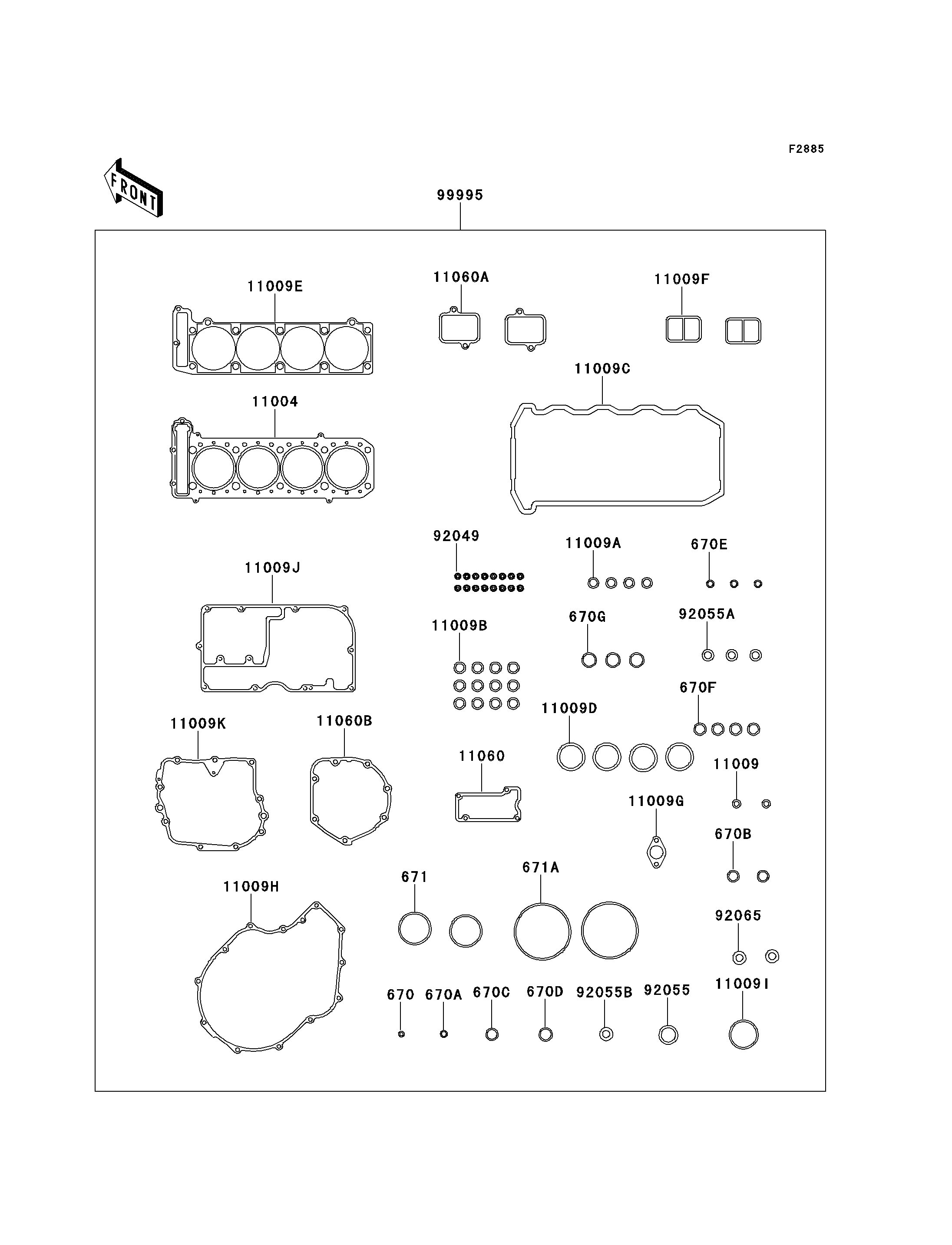

2001 Ninja® ZX™-11 - Gasket Kit

DOWNLOAD PDF
SELECT A NEW PART
670
670A
670B
670C
670D
670E
670F
670G
671
671A
11004
11009
11009A
11009B
11009C
11009D
11009E
11009F
11009G
11009H
11009I
11009J
11009K
11060
11060A
11060B
92049
92055
92055A
92055B
92065
99995
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,6MM 670 670B1506 1
O RING,8MM 670A 670B1508 1
O RING,15MM 670B 670B2015 2
O RING,16MM 670C 670B2016 1
O RING,18MM 670D 670B2018 1
O RING,9MM 670E 670D1509 3
O RING,16MM 670F 670D2016 4
O RING,20MM 670G 670D2020 3
O RING,25MM 671 671B2525 2
O RING,90MM 671A 671B2590 2
GASKET-HEAD 11004 11004-1248 1
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 2
GASKET,12.4X17X1.5 11009A 11009-1376 4
GASKET,14X19.5X1.4 11009B 11009-1461 12
GASKET,HEAD COVER 11009C 11009-1724 1
GASKET,EXHAUST PIPE HOLDER 11009D 11009-1840 4
GASKET,CYLINDER BASE 11009E 11009-1847 1
GASKET,REED VALVE 11009F 11009-1857 2
GASKET,TENSIONER 11009G 11009-1858 1
GASKET,CLUTCH COVER 11009H 11009-1860 1
GASKET,MUFFLER CONNECTING 11009I 11009-1888 1
GASKET,OIL PAN 11009J 11009-1981 1
GASKET,TRANSMISSION COVER 11009K 11009-1982 1
GASKET,BREATHER BODY 11060 11060-1339 1
GASKET,REED VALVE CAP 11060A 11060-1688 2
GASKET,PULSING COVER 11060B 11060-1695 1
SEAL-OIL,VSB58.558 92049 92049-1218 16
RING-O,31.7X2.4 92055 92055-049 1
RING-O,19.5MM 92055A 92055-077 3
RING-O 92055B 92055-1146 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 2
GASKET-SET,ZX1100D/E/F 99995 99995-1396 1
