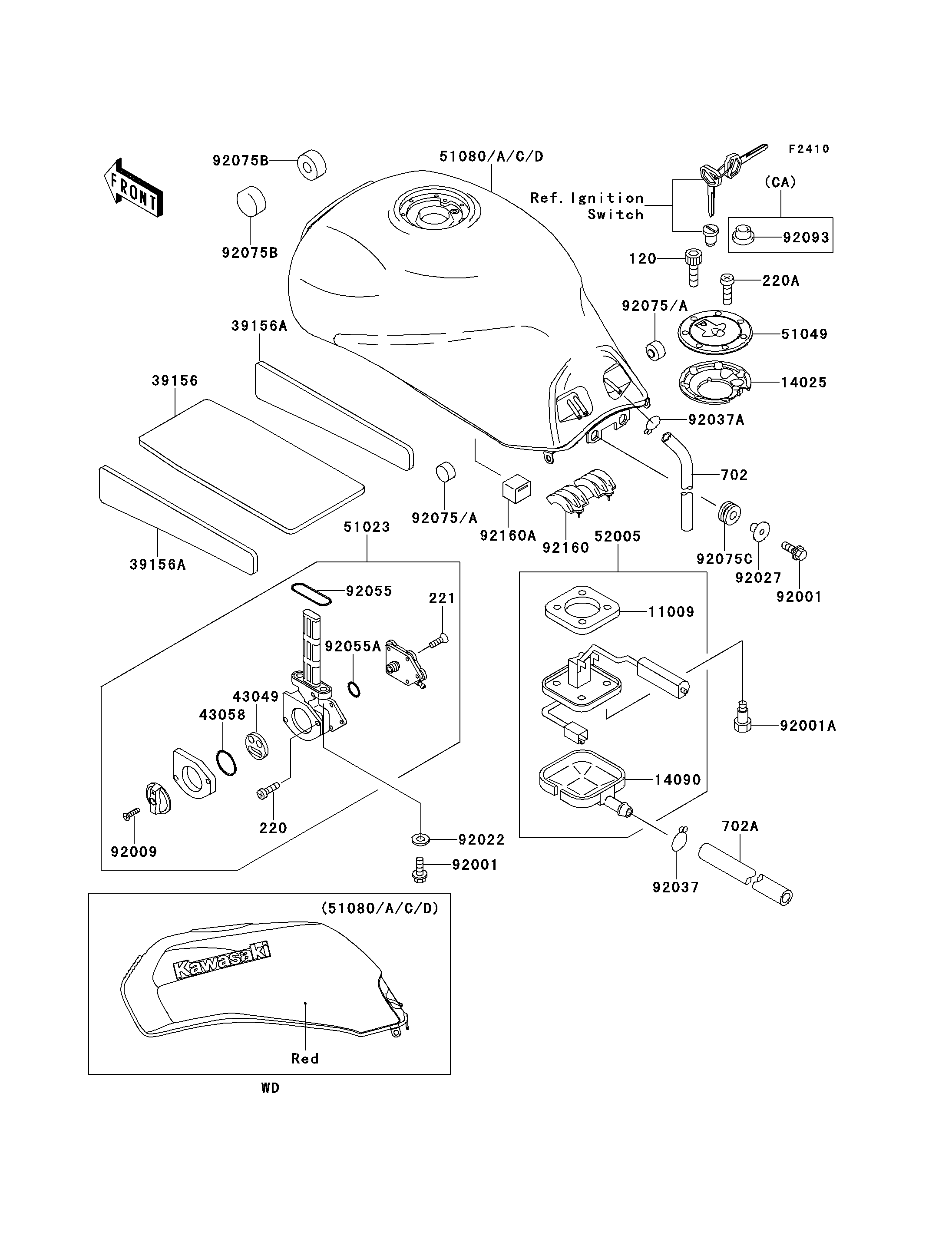

1995 GPZ 1100 - Fuel Tank(ZX1100-E1)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
14025
14025
14090
14090
39156
39156
39156A
39156A
39156A
39156A
43049
43049
43058
43058
51023
51023
51049
51049
52005
52005
92001
92001
92001
92001
92001A
92001A
92009
92009
92022
92022
92027
92027
92037
92037
92037A
92037A
92055
92055
92055A
92055A
120
120
220
220
220A
220A
221
221
702
702
702A
702A
92075B
92075B
92075B
92075B
92075C
92075C
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,TANK CAP 14025 14025-1913 1
COVER,FUEL GAUGE 14090 14090-1624 1
PAD,FUEL TANK,CNT 39156 39156-1482 1
PAD,FUEL TANK 39156A 39156-1483 2
PACKING,TAP VALVE 43049 43049-1075 1
RING,TAP LEVER 43058 43058-1083 1
TAP-ASSY,FUEL 51023 51023-1219 1
CAP-TANK,FUEL 51049 51049-1091 1
GAUGE,FUEL 52005 52005-1111 1
BOLT,6X25 92001 92001-1524 4
BOLT,FUEL GAUGE 92001A 92001-1705 4
SCREW,4X12 92009 92009-1742 1
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1712 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O 92055A 92055-1539 1
BOLT-SOCKET 120 120S0512 7
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
TUBE-RUBBER,7X10X600 702 702A07600 1
TUBE-RUBBER,7X10X860 702A 702A07860 1
DAMPER,FUEL TANK 92075B 92075-101 2
DAMPER 92075C 92075-1690 2
DAMPER,FUEL TANK,CNT 92160 92160-1577 1
DAMPER 92160A 92160-1626 1
TANK-COMP-FIEL,C.P.RED 51080 51080-5171-A5 1 CNUS ( - JKAZXBE1 SA004333)
TANK-COMP-FUEL,C.P.RED 51080A 51080-5172-A5 1 CA ( - JKAZXBE1 SA004333)
TANK-COMP-FUEL,C.P.RED 51080C 51080-5205-A5 1 CNUS (JKAZXBE1 SA004334 - )
TANK-COMP-FUEL,C.P.RED 51080D 51080-5206-A5 1 CA (JKAZXBE1 SA004334 - )
DAMPER 92075 92075-021 2 CA (JKAZXBE1 SA004334 - )
DAMPER 92075A 92075-021 2 CNUS (JKAZXBE1 SA004334 - )
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
