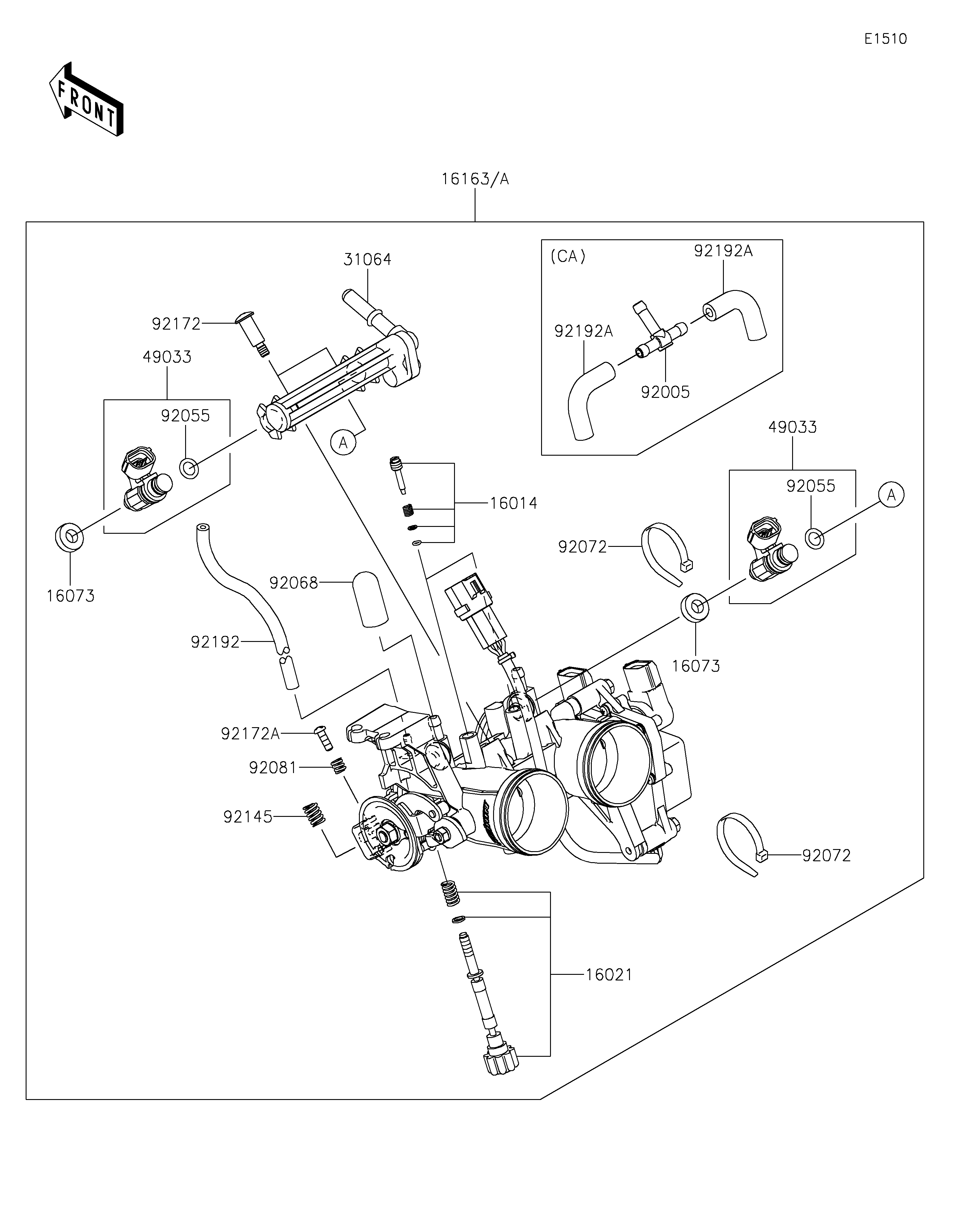

2022 Versys-X 300 ABS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
16014
16021
16073
16073
16163A
31064
49033
49033
92005
92055
92055
92072
92072
92081
92145
92172
92172A
92192
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PILOT AIR 16014 16014-0002 2
SCREW-THROTTLE STOP 16021 16021-0027 1
INSULATOR 16073 16073-0129 2
THROTTLE-ASSY 16163A 16163-0750 1 CA
PIPE-COMP,FUEL 31064 31064-0164 1
NOZZLE-INJECTION 49033 49033-0558 2
FITTING,3WAY 92005 92005-0730 1 CA
RING-O,INJECTION NOZZLE 92055 92055-0124 2
BAND,SUB-HARNESS 92072 92072-0012 2
SPRING 92081 92081-1620 1
SPRING 92145 92145-0656 1
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0129 1
TUBE,3X7X200 92192 92192-1170 1
TUBE 92192A 92192-1918 2 CA
THROTTLE-ASSY,TTK32 16163 16163-0746 1 CN,US
PLUG,12X25 92068 92068-006 2 CN,US
