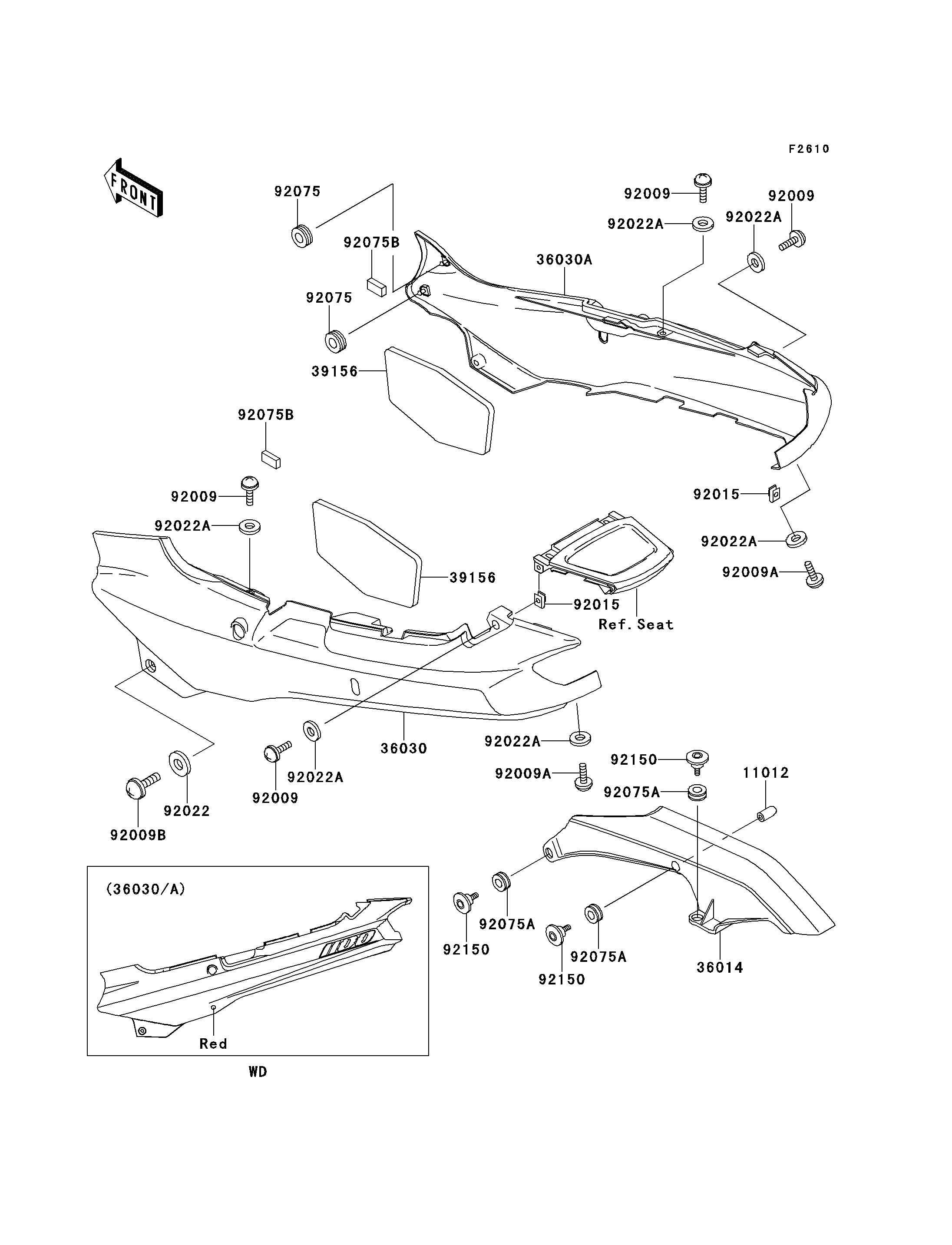

1995 GPZ 1100 - Side Covers/Chain Cover(ZX1100-E1)
11012
36014
36030
36030A
39156
39156
92009
92009
92009
92009
92009A
92009A
92009B
92015
92015
92022
92022A
92022A
92022A
92022A
92022A
92022A
92075
92075
92075A
92075A
92075A
92075B
92075B
92150
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1438 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1197 | 1 | ||
| COVER-SIDE,LH,C.P.RED | 36030 | 36030-5477-A5 | 1 | ||
| COVER-SIDE,RH,C.P.RED | 36030A | 36030-5478-A5 | 1 | ||
| PAD,SIDE,COVER | 39156 | 39156-1442 | 2 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 4 | ||
| SCREW,5X20 | 92009A | 92009-1656 | 2 | ||
| SCREW,6X14 | 92009B | 92009-1662 | 2 | ||
| NUT,5MM | 92015 | 92015-1798 | 4 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 6 | ||
| DAMPER | 92075 | 92075-1629 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 3 | ||
| DAMPER | 92075B | 92075-1867 | 2 | ( - JKAZXBE1 SA004333) | |
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 3 |
