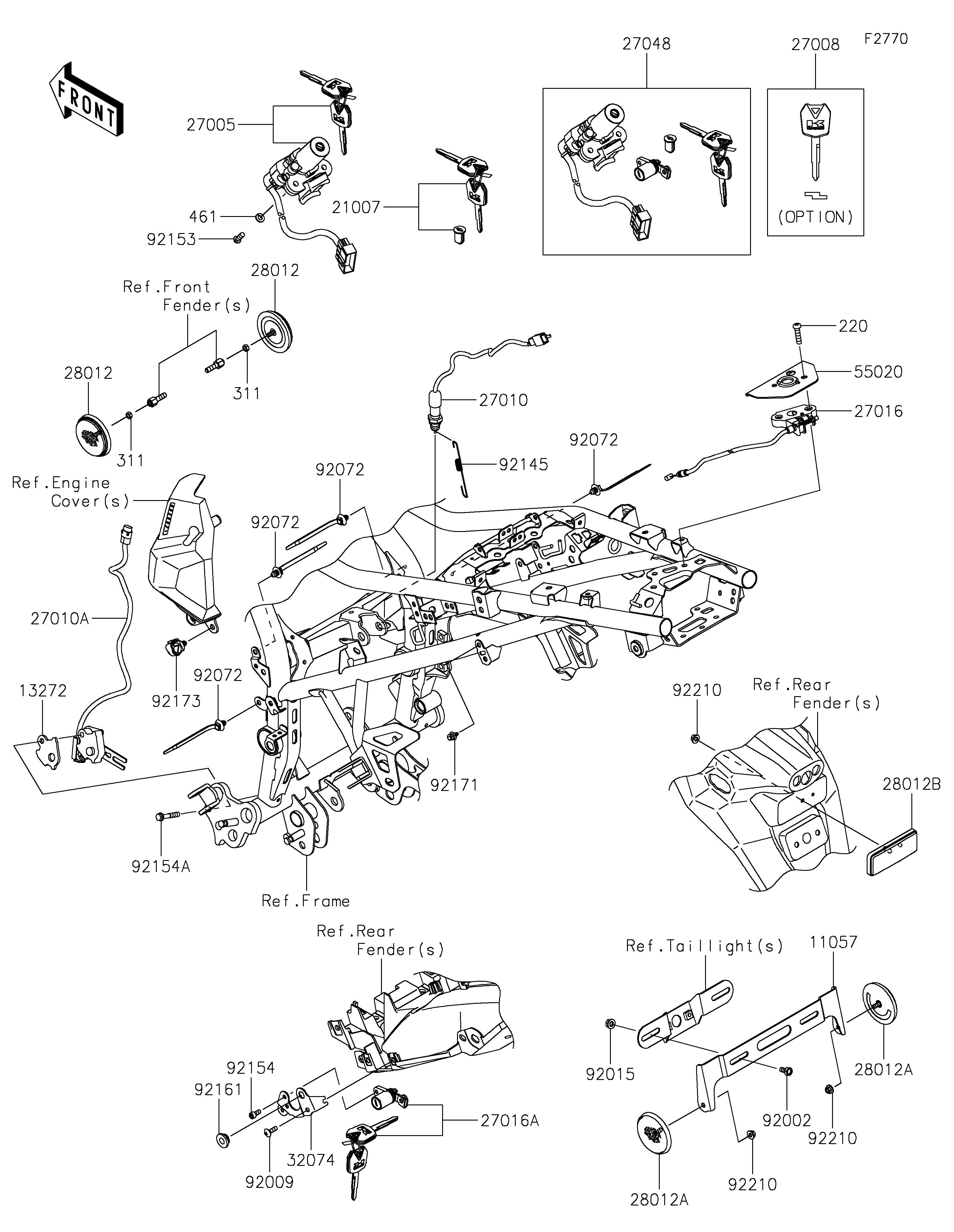

2022 Versys-X 300 ABS - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
11057
13272
21007
27005
27008
27010
27010A
27016
27016A
27048
28012
28012
28012A
28012A
28012B
32074
55020
92002
92009
92015
92072
92072
92072
92072
92145
92153
92154
92154A
92161
92171
92173
92210
92210
92210
220
311
311
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11057 11057-0641 1
PLATE 13272 13272-1330 1
ROTOR,LOCK,TANK CAP 21007 21007-5082 1
SWITCH-ASSY-IGNITION 27005 27005-5162 1
KEY-LOCK,BLANK 27008 27008-0053 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0726 1
SWITCH,SIDE STAND 27010A 27010-0845 1
LOCK-ASSY,SEAT LEVER 27016 27016-0089 1
LOCK-ASSY,SEAT 27016A 27016-5398 1
SWITCH-ASSY 27048 27048-5139 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BRACKET-LOCK 32074 32074-0022 1
GUARD 55020 55020-1987 1
BOLT,6X12 92002 92002-1132 2
SCREW,5X16,BLACK 92009 92009-1654 2
NUT,FLANGED,6MM 92015 92015-1367 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 4
SPRING,REAR BRAKE SWITCH 92145 92145-0144 1
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,SOCKET,5X12 92154 92154-0933 2
BOLT,FLANGED,6X35 92154A 92154-1009 1
DAMPER 92161 92161-1531 1
CLAMP 92171 92171-0939 1
CLAMP,12MM DIA. 92173 92173-0736 1
NUT,FLANGED,5MM 92210 92210-0007 3
SCREW-PAN-CROS,6X25 220 220AA0625 2
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
