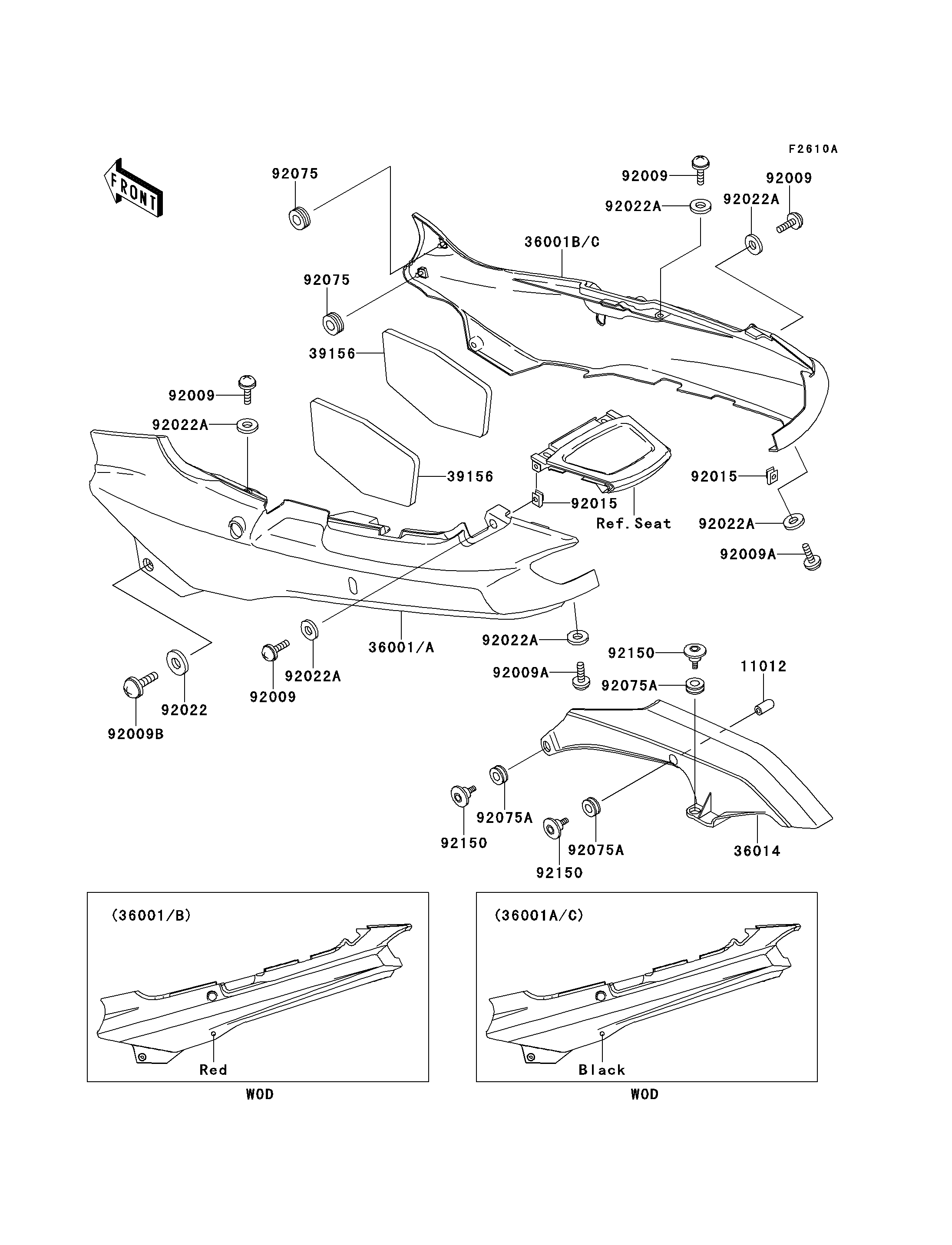

1997 GPZ 1100 - Side Covers/Chain Cover(ZX1100-E2/E3)
11012
36001A
36001C
36014
39156
39156
92009
92009
92009
92009
92009A
92009A
92009B
92015
92015
92022
92022A
92022A
92022A
92022A
92022A
92022A
92075
92075
92075A
92075A
92075A
92150
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1438 | 1 | ||
| COVER-SIDE,LH,P.G.BLACK | 36001A | 36001-1546-RL | 1 | ||
| COVER-SIDE,RH,P.G.BLACK | 36001C | 36001-1547-RL | 1 | ||
| CASE-CHAIN | 36014 | 36014-1197 | 1 | ||
| PAD,SIDE,COVER | 39156 | 39156-1442 | 2 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 4 | ||
| SCREW,5X20 | 92009A | 92009-1656 | 2 | ||
| SCREW,6X14 | 92009B | 92009-1662 | 2 | ||
| NUT,5MM | 92015 | 92015-1798 | 4 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 6 | ||
| DAMPER | 92075 | 92075-1629 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 3 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 3 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,P.G.BLACK | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,P.G.BLACK | |
| REF # | 36001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE,COVER | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
