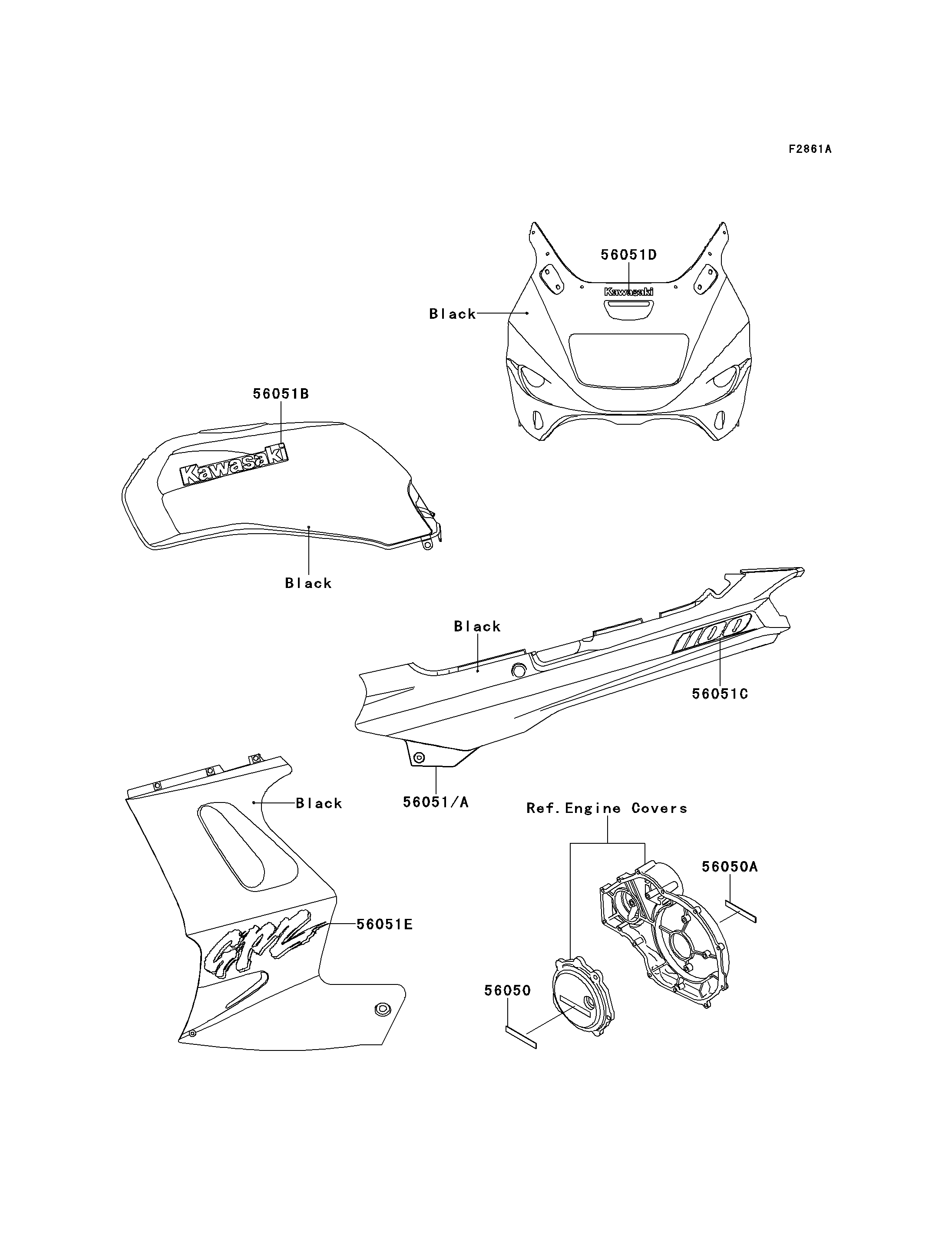

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,ENGINE COVER,LH 56050 56050-1094 1 CAUS
MARK,ENGINE COVER,RH 56050A 56050-1095 1 CAUS
MARK,SIDE COVER,LH 56051 56051-1269 1 CAUS
MARK,SIDE COVER,RH 56051A 56051-1270 1 CAUS
MARK,FUEL TANK,KAWASAKI 56051B 56051-1345 2 CAUS
MARK,SIDE COVER,1100 56051C 56051-1346 2 CAUS
MARK,KAWASAKI 56051D 56051-1347 1 CAUS
MARK,LWR COWLING,GPZ 56051E 56051-1349 2 CAUS
