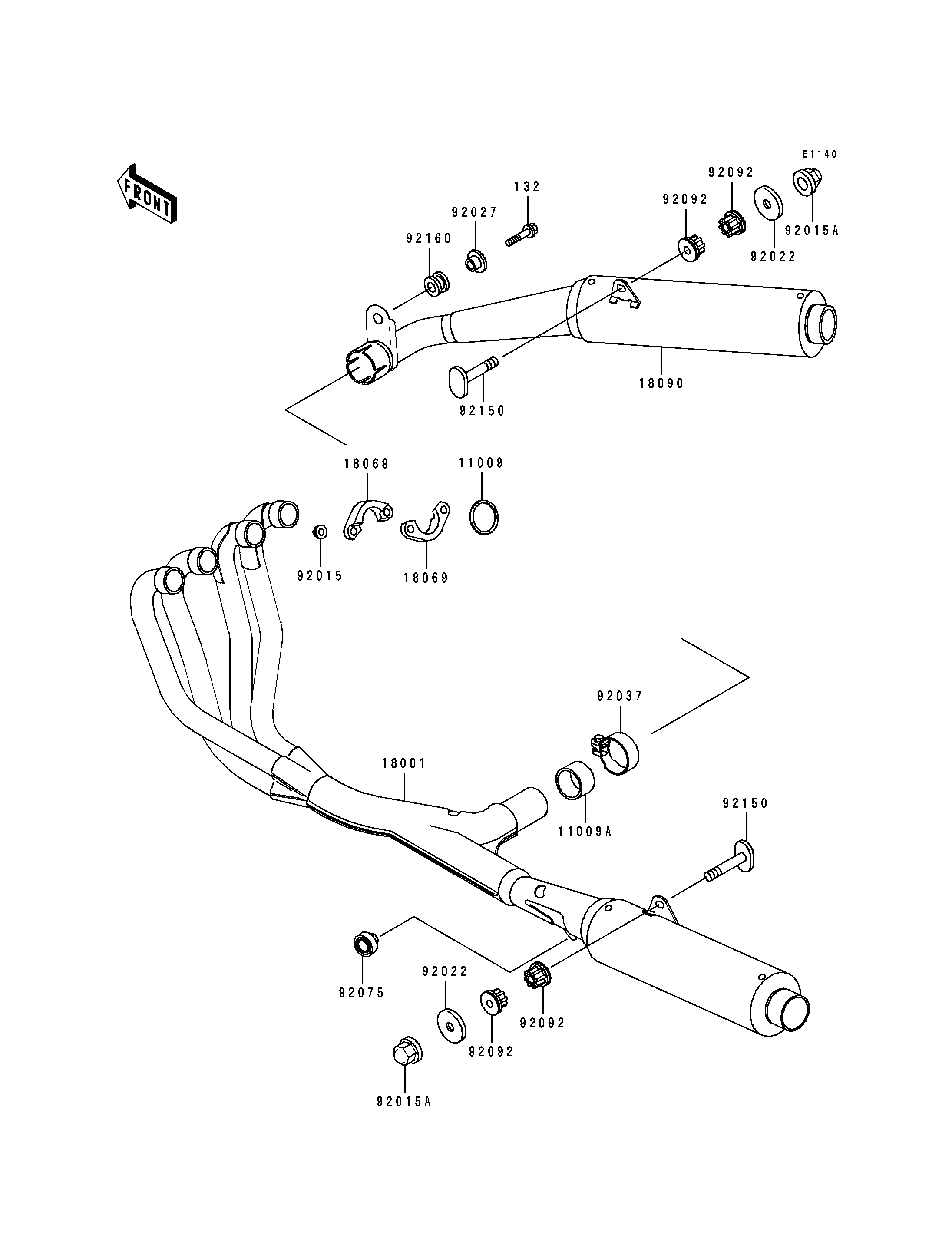

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11009 11009-1840 4
GASKET,MUFFLER CONNECTING 11009A 11009-1888 1
MUFFLER,LH 18001 18001-1911 1
HOLDER-EXHAUST PIPE 18069 18069-1122 8
BODY-COMP-MUFFLER,RH 18090 18090-1448 1
NUT,LOCK,8MM 92015 92015-1380 8
NUT,10MM 92015A 92015-1649 2
WASHER 92022 92022-289 2
COLLAR,L=14 92027 92027-1134 1
CLAMP,POWER CHAMBER 92037 92037-1537 1
DAMPER 92075 92075-015 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
BOLT,10X55 92150 92150-1792 2
DAMPER 92160 92160-1007 1
BOLT-FLANGED-SMALL 132 132G0835 1
