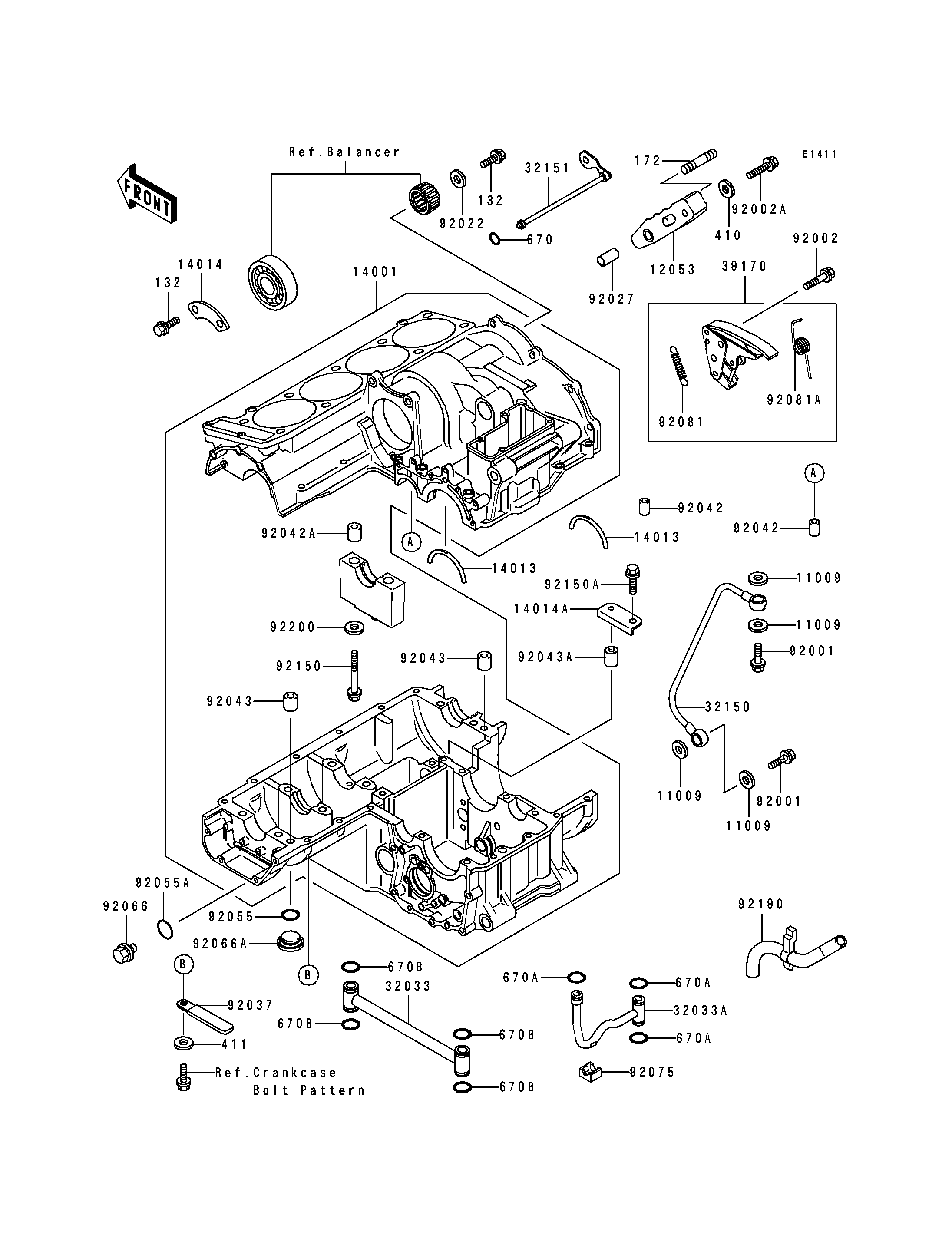

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,12.4X17X1.5 | 11009 | 11009-1376 | 4 | ||
GUIDE-CHAIN | 12053 | 12053-1189 | 1 | ||
SET-CRANKCASE | 14001 | 14001-1103 | 1 | ||
RING-POSITION,T=1.98 | 14013 | 14013-1005 | 2 | ||
PLATE-POSITION | 14014 | 14014-1056 | 1 | ||
PLATE-POSITION | 14014A | 14014-1101 | 1 | ||
PIPE,MAIN GALLARY | 32033 | 32033-1201 | 1 | ||
PIPE | 32033A | 32033-1202 | 1 | ||
PIPE | 32150 | 32150-1033 | 1 | ||
PIPE,OIL | 32151 | 32151-1482 | 1 | ||
TENSIONER-COMP | 39170 | 39170-1059 | 1 | ||
BOLT,BANJO,12X23 | 92001 | 92001-1871 | 2 | ||
BOLT,6X30 | 92002 | 92002-1534 | 2 | ||
BOLT,6X25 | 92002A | 92002-1609 | 1 | ||
WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
COLLAR,6.2X8.1X15 | 92027 | 92027-1079 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1539 | 1 | ||
PIN,DOWEL,6X16 | 92042 | 92042-016 | 2 | ||
PIN,DOWEL,12X14 | 92042A | 92042-031 | 2 | ||
PIN,DOWEL,10X14 | 92043 | 92043-1037 | 2 | ||
PIN,BALANCER | 92043A | 92043-1281 | 1 | ||
RING-O,25.7X2.4 | 92055 | 92055-1136 | 1 | ||
RING-O | 92055A | 92055-1146 | 1 | ||
PLUG,MAIN GALLERY,18X9,BLACK | 92066 | 92066-1096 | 1 | ||
PLUG,25X8 | 92066A | 92066-1161 | 1 | ||
DAMPER,PIPE | 92075 | 92075-1785 | 1 | ||
SPRING | 92081 | 92081-1668 | 1 | ||
SPRING | 92081A | 92081-1971 | 1 | ||
BOLT,9X90 | 92150 | 92150-1364 | 2 | ||
BOLT,6X12 | 92150A | 92150-1868 | 1 | ||
TUBE,BREATHER | 92190 | 92190-1118 | 1 | ||
WASHER,9.5X18X1.2 | 92200 | 92200-1037 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 3 | ||
BOLT-STUD,6X16 | 172 | 172G0616 | 1 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 1 | ||
O RING,6MM | 670 | 670B1506 | 1 | ||
O RING,9MM | 670A | 670D1509 | 3 | ||
O RING,16MM | 670B | 670D2016 | 4 |
