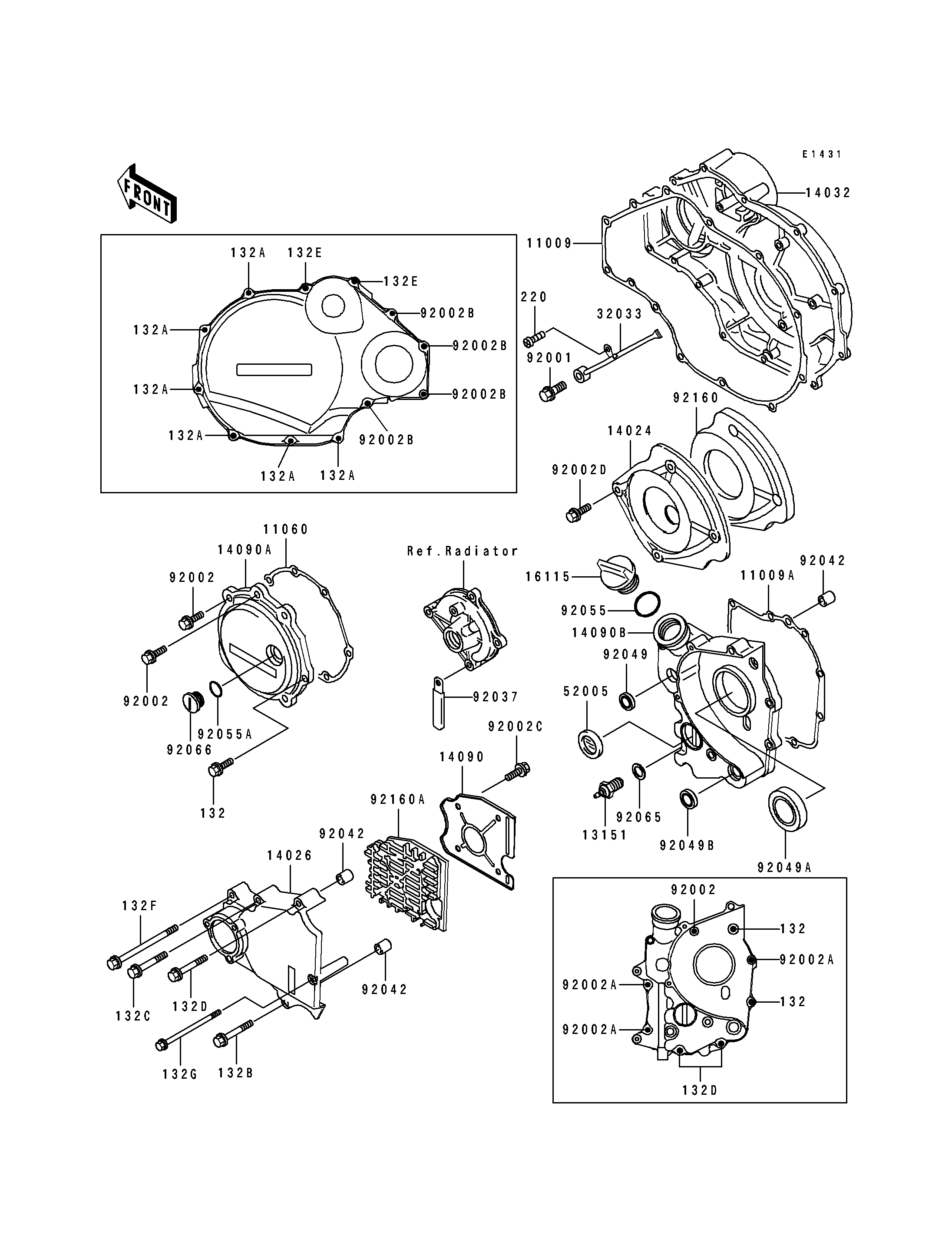

1996 GPZ 1100 ABS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11009 11009-1860 1
GASKET,TRANSMISSION COVER 11009A 11009-1982 1
GASKET,PULSING COVER 11060 11060-1695 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
COVER,SOUND ARRESTER 14024 14024-1925 1
COVER-CHAIN 14026 14026-1214 1
COVER-CLUTCH 14032 14032-1402 1
COVER,SOUND ARRESTER 14090 14090-1527 1
COVER,PULSING 14090A 14090-1537 1
COVER,TRANSMISSION 14090B 14090-1538 1
CAP-OIL FILLER 16115 16115-1009 1
PIPE,CLUTCH COVER 32033 32033-1204 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,BANJO,8X20 92001 92001-1855 1
BOLT,6X20 92002 92002-1343 3
BOLT,6X25 92002A 92002-1344 3
BOLT,6X40 92002B 92002-1345 4
BOLT,6X10 92002C 92002-1449 4
BOLT,6X10 92002D 92002-1541 4
CLAMP,WIRING HARNESS 92037 92037-1069 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,AE2343F0 92049A 92049-1070 1
SEAL-OIL,TB13205 92049B 92049-1186 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O 92055A 92055-1146 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,COVER 92066 92066-1163 1
DAMPER,SOUND ARRESTER 92160 92160-1567 1
DAMPER,SOUND ARRESTER 92160A 92160-1568 1
BOLT-FLANGED-SMALL 132 132J0620 7
BOLT-FLANGED-SMALL 132A 132J0625 6
BOLT-FLANGED-SMALL 132B 132J0635 1
BOLT-FLANGED-SMALL,6X40 132C 132J0640 1
BOLT-FLANGED-SMALL 132D 132J0650 3
BOLT-FLANGED-SMALL,6X55 132E 132J0655 2
BOLT-FLANGED-SMALL 132F 132J0665 1
BOLT-FLANGED-SMALL 132G 132J0680 1
SCREW-PAN-CROS 220 220B0510 1
