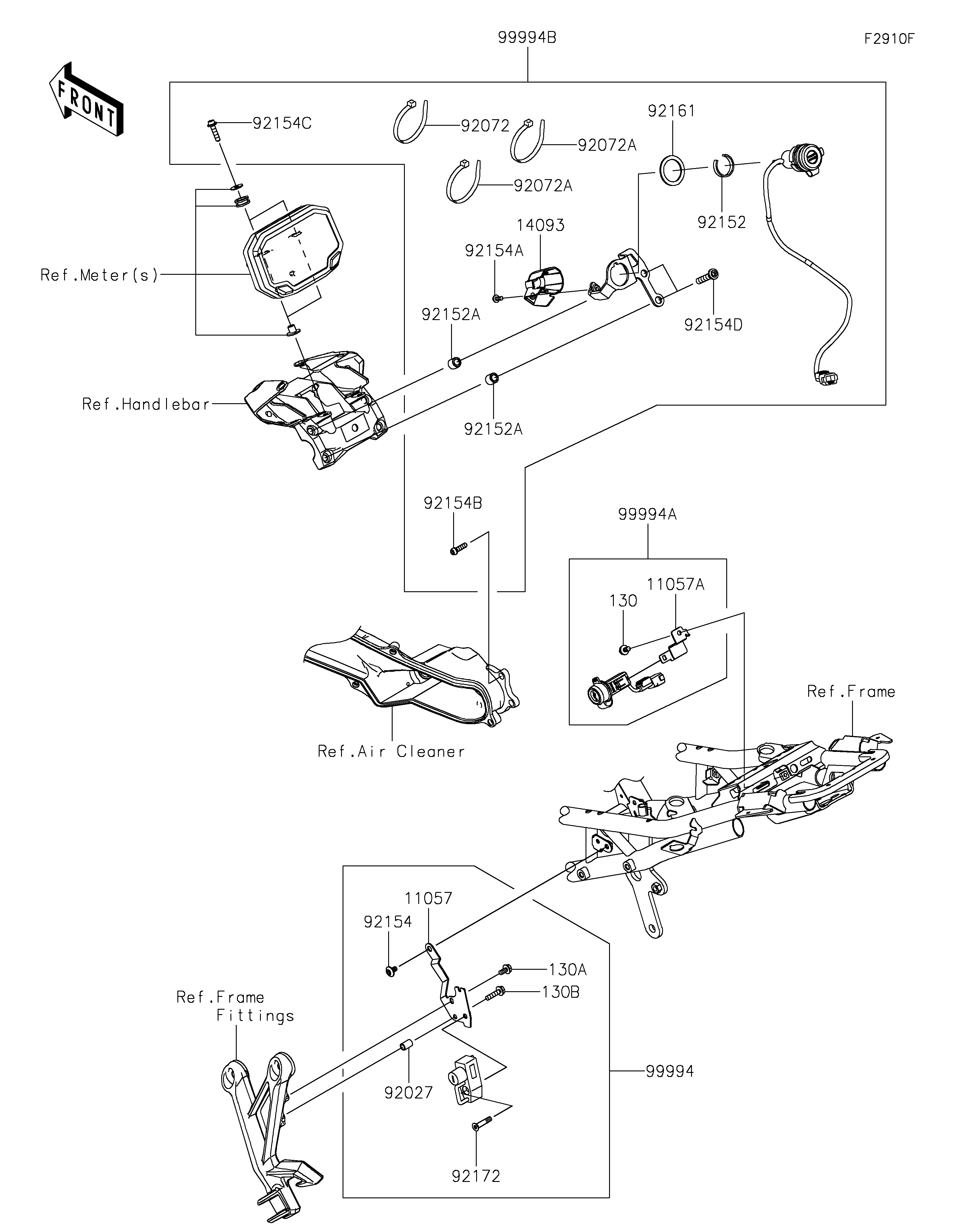

2022 Z H2 SE - Accessory(Helmet Lock and DC Socket)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
92027
92072
92072A
92072A
92152
92152A
92152A
92154
92154A
92154B
92154C
92154D
92161
92172
99994
99994A
99994B
130
130A
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-3791 1
BRACKET 11057A 11057-3792 1
COVER,SOCKET 14093 14093-0212 1
COLLAR,6.8X10X15 92027 92027-1941 1
BAND 92072 92072-0904 1
BAND,L=365 92072A 92072-1197 2
COLLAR 92152 92152-2135 1
COLLAR 92152A 92152-2649 2
BOLT,SOCKET,6X10 92154 92154-0774 1
BOLT,SOCKET,5X12 92154A 92154-0917 1
BOLT,SOCKET,6X22,MEC 92154B 92154-2736 3
BOLT,SOCKET,6X25 92154C 92154-2826 2
BOLT,SOCKET 92154D 92154-4086 2
DAMPER 92161 92161-1789 1
SCREW,HEXLOBE,6X30 92172 92172-1378 1
HELMET LOCK 99994 99994-1436 1
USB SOCKET 99994A 99994-1437 1
12V OUTPUT SOCKET 99994B 99994-1668 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130CB0612 1
BOLT-FLANGED,6X25 130B 130CB0625 1
