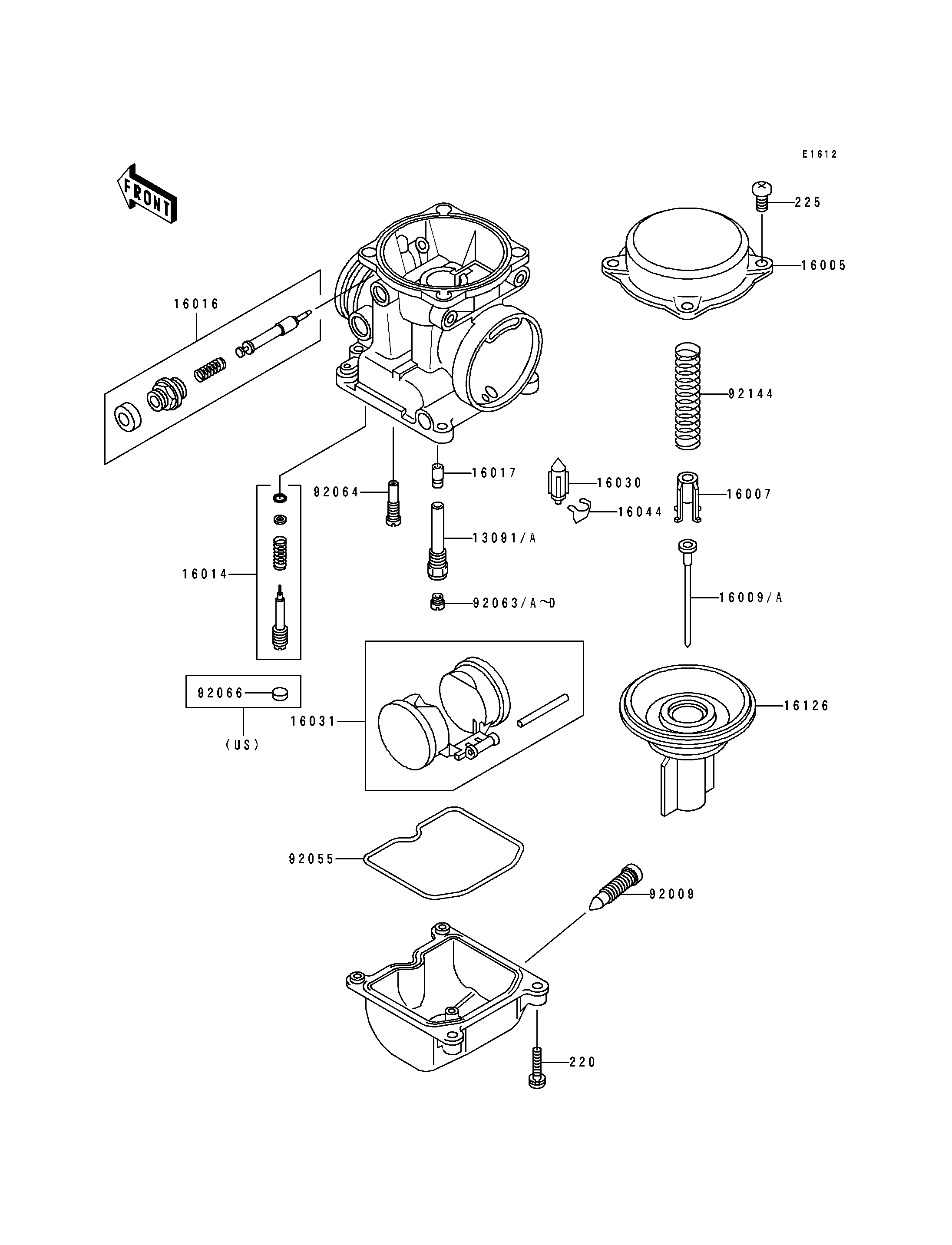

1996 GPZ 1100 ABS - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1425 2
HOLDER,NEEDLE JET,#1,#4 13091A 13091-1925 2
TOP-CHAMBER,MIXING 16005 16005-1054 4
SEAT-SPRING,VALVE 16007 16007-1117 4
NEEDLE-JET,N2LB 16009 16009-1856 2
NEEDLE-JET,N2LC 16009A 16009-1857 2
SCREW-PILOT AIR 16014 16014-1080 4
PLUNGER,STARTER 16016 16016-1090 4
JET-NEEDLE 16017 16017-1265 4
VALVE-FLOAT 16030 16030-1057 4
FLOAT 16031 16031-1077 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1170 4
SCREW,DRAIN,M6X0.75 92009 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1222 4
JET-MAIN,#105 92063 92063-1009 4 (RACING USE ONLY)
JET-MAIN,#110 92063A 92063-1114 4
JET-MAIN,#108 92063B 92063-1116 4 (RACING USE ONLY)
JET-MAIN,#112 92063C 92063-1117 4 (RACING USE ONLY)
JET-MAIN,#115 92063D 92063-1118 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,VACUUM VALVE 92144 92144-1219 4
SCREW-PAN-CROS 220 220D0414 16
SCREW-PAN-WSP-CROS 225 225C0418 15
