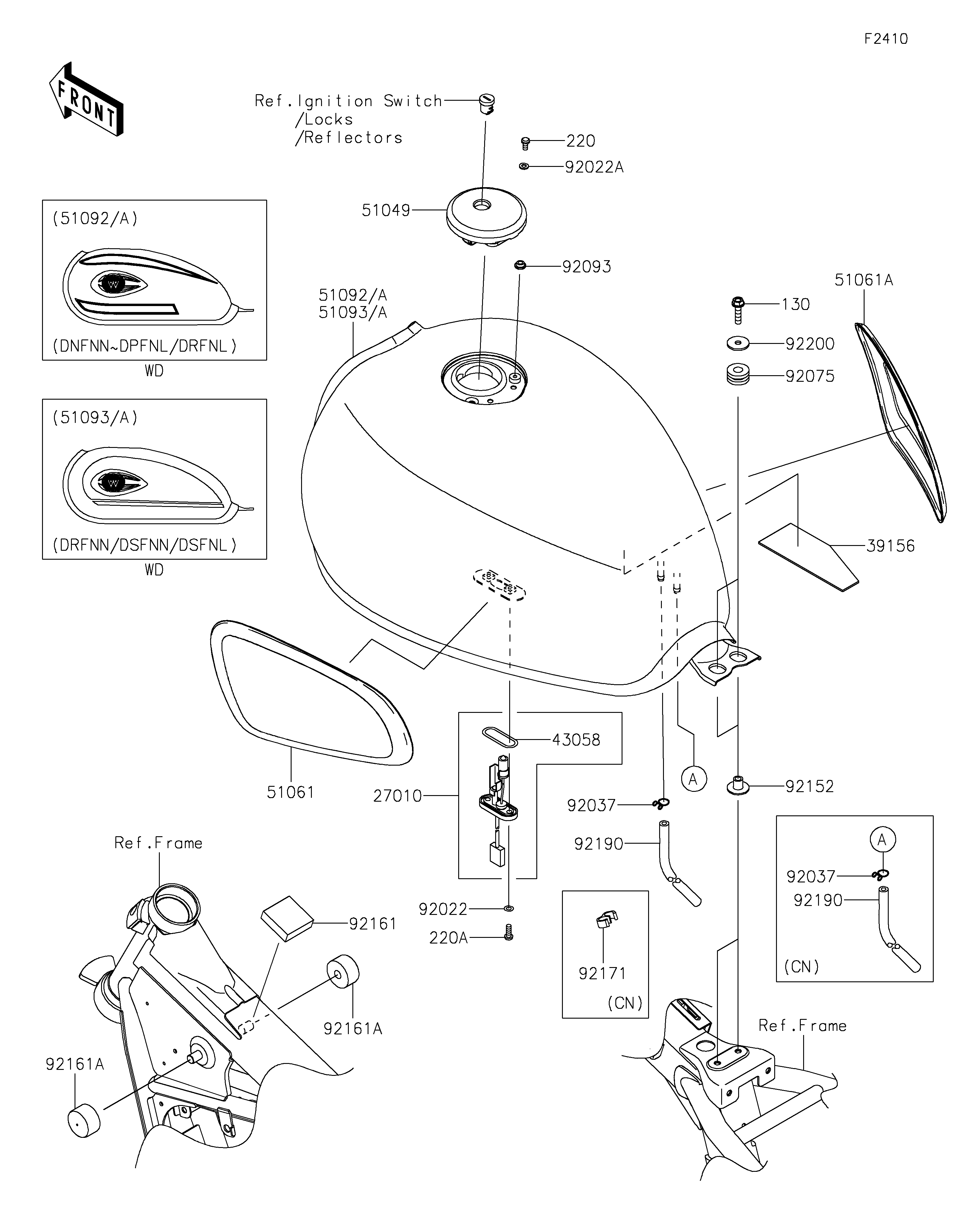

2023 W800 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
27010
39156
43058
51049
51061
51061A
51092
51092A
92022
92022A
92037
92037
92075
92093
92152
92161
92161A
92161A
92171
92190
92190
92200
130
220
220A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,FUEL LEVEL 27010 27010-0718 1
PAD,FUEL TANK,INNER 39156 39156-2550 1
RING,FUEL LEVEL SWITCH 43058 43058-1004 1
CAP-TANK,FUEL 51049 51049-0003 1
PAD-KNEE,LH 51061 51061-0006 1
PAD-KNEE,RH 51061A 51061-0007 1
TANK-COMP-FUEL,C.F.RED 51092 51092-5129-816 1
TANK-COMP-FUEL,M.S.BLUE 51092A 51092-5356-54D 1 _________________________________________CA
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,5.1X10X1.0 92022A 92022-1977 2
CLAMP,TUBE 92037 92037-147 1 CA
DAMPER,10X24X12 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR 92152 92152-0365 2
DAMPER,40X40X12 92161 92161-2147 1
DAMPER,FUEL TANK 92161A 92161-2532 2
CLAMP 92171 92171-1184 1 CN
TUBE,DRAIN 92190 92190-1453 1 CA
WASHER,6.5X24X2 92200 92200-2230 2
BOLT-FLANGED,6X25 130 130BC0625 2
SCREW-PAN-CROS,5X10 220 220AA0510 2
SCREW-PAN-CROS,5X14 220A 220AA0514 2
CLAMP,TUBE 92037 92037-147 2 CN
TUBE,DRAIN 92190 92190-1453 2 CN
