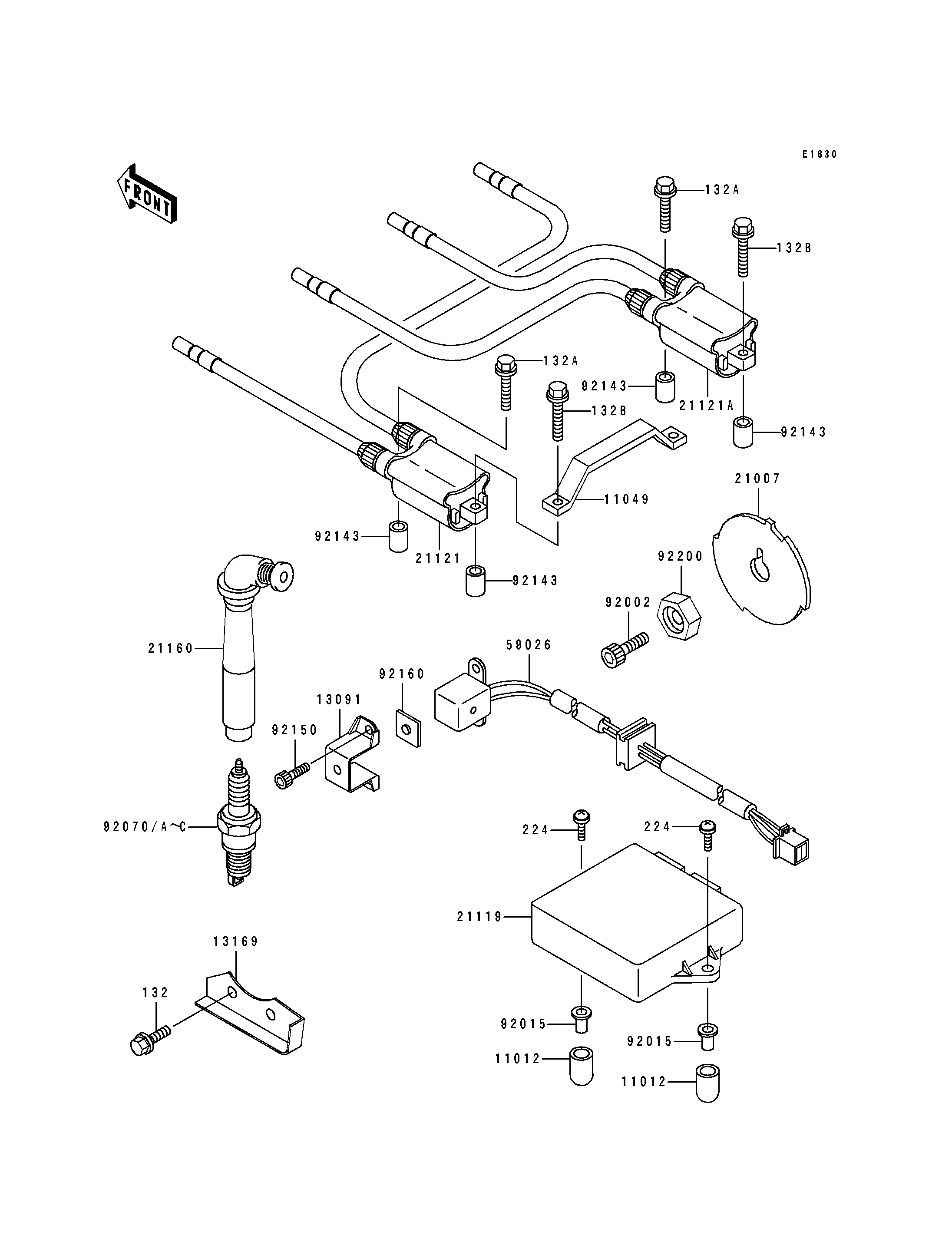

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1438 | 2 | ||
| BRACKET,IGNITION COIL | 11049 | 11049-1301 | 1 | ||
| HOLDER | 13091 | 13091-1562 | 1 | ||
| PLATE,CHAIN GUIDE | 13169 | 13169-1748 | 1 | ||
| ROTOR,PULSING | 21007 | 21007-1280 | 1 | ||
| IGNITER | 21119 | 21119-1439 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-1243 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1244 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1087 | 4 | ||
| COIL-PULSING | 59026 | 59026-1132 | 1 | ||
| BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 1 | ||
| NUT | 92015 | 92015-1700 | 2 | ||
| PLUG-SPARK,CR9EK(NGK) | 92070 | 92070-1145 | 4 | ||
| PLUG-SPARK,CR8EK(NGK) | 92070A | 92070-1158 | 4 | (OPTION) | |
| PLUG-SPARK,U27ETR(ND) | 92070B | 4 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,U24ETR(ND) | 92070C | 4 | (OPTION) | ||
| COLLAR | 92143 | 92143-1729 | 4 | ||
| BOLT,SOCKET,5X14 | 92150 | 92150-1180 | 2 | ||
| DAMPER | 92160 | 92160-1091 | 1 | ||
| WASHER,ROTOR | 92200 | 92200-1173 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
| BOLT-FLANGED-SMALL | 132A | 132Y0635 | 2 | ||
| BOLT-FLANGED-SMALL | 132B | 132Y0640 | 2 | ||
| SCREW-PAN-WP-CROS | 224 | 224C0625 | 2 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITION COIL | |
| REF # | 11049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CHAIN GUIDE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,PULSING | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#1 | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,#2 | |
| REF # | 21121A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PLUG | |
| REF # | 21160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,CR9EK(NGK) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,CR8EK(NGK) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,U27ETR(ND) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,U24ETR(ND) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,ROTOR | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
