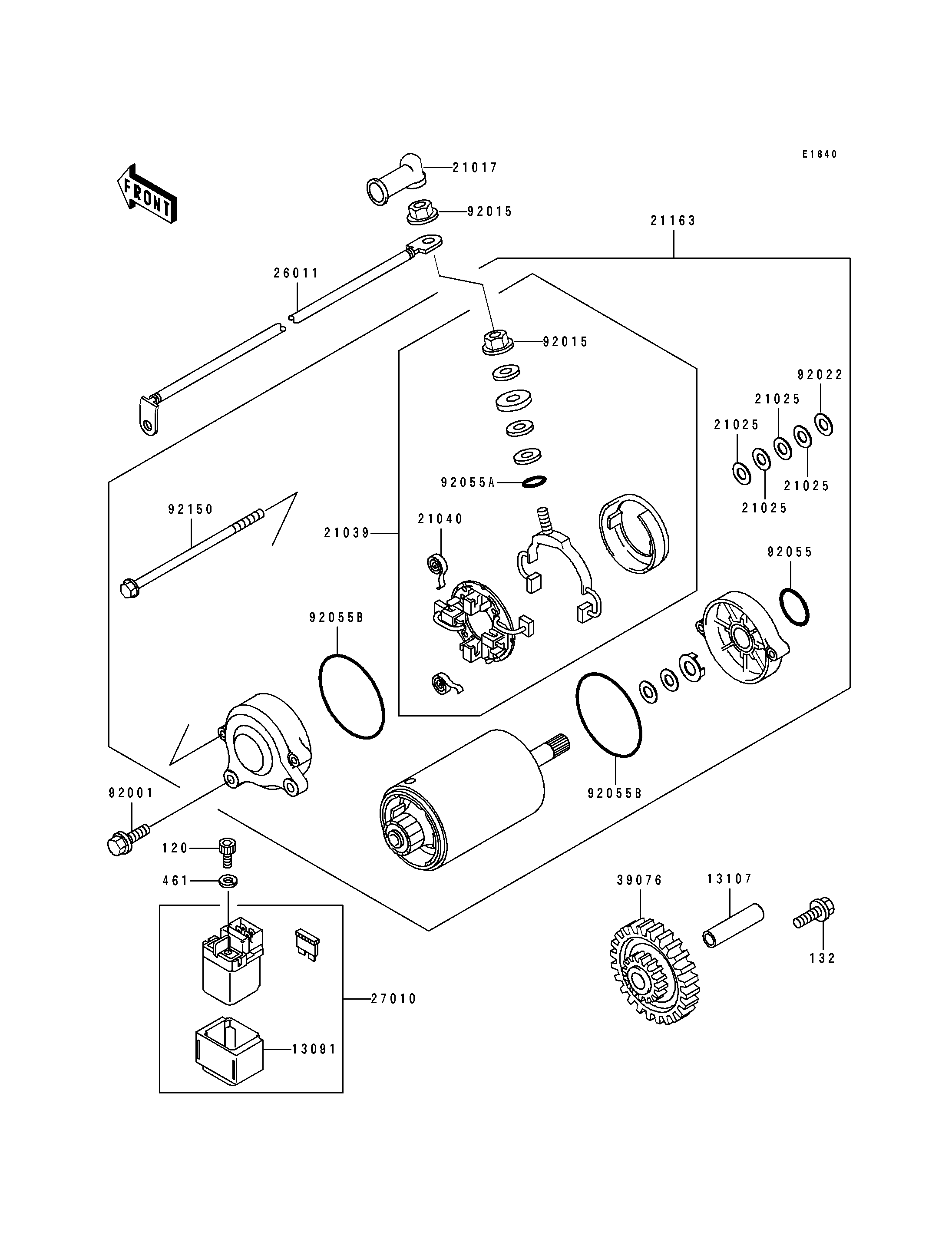

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,SWITCH 13091 13091-1883 1
SHAFT,IDLE GEAR 13107 13107-1106 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-1161 1
WIRE-LEAD 26011 26011-1613 1
SWITCH,MAGNETIC 27010 27010-1347 1
LIMITER,STARTER IDLE GEAR 39076 39076-1061 1
BOLT,6X20 92001 92001-1947 2
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT,5X110 92150 92150-1143 2
BOLT-SOCKET 120 120S0510 2
BOLT-FLANGED-SMALL 132 132G0612 1
WASHER-SPRING,5MM,BLACK 461 461K0500 2
