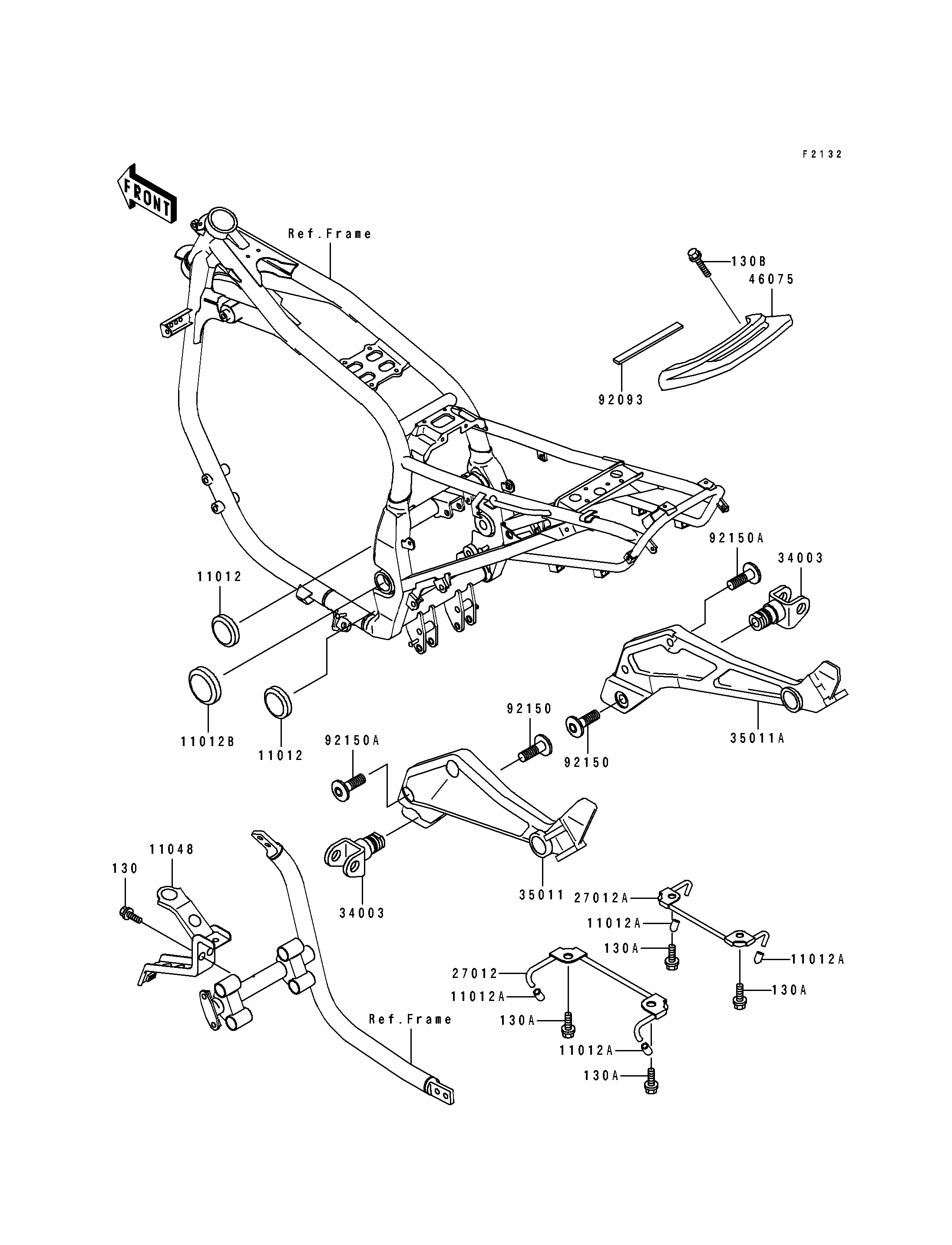

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1460 2
CAP,BUNGEE CORD HOOK 11012A 11012-1589 4
CAP 11012B 11012-1657 2
BRACKET,OIL COOLER 11048 11048-1981 1
HOOK,BUNGEE CORD,LH 27012 27012-1492 1
HOOK,BUNGEE CORD,RH 27012A 27012-1504 1
HOLDER-STEP 34003 34003-1412 2
STAY,STEP,LH 35011 35011-1721 1
STAY,STEP,RH 35011A 35011-1722 1
GRIP,TAIL,P.G.BLACK 46075 46075-1123-RL 1
SEAL,L=270 92093 92093-1393 1
BOLT,SOCKET,10X25 92150 92150-1268 2
BOLT,SOCKET,10X25 92150A 92150-1747 4
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED 130A 130J0812 4
BOLT-FLANGED,8X20 130B 130J0820 2
