Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

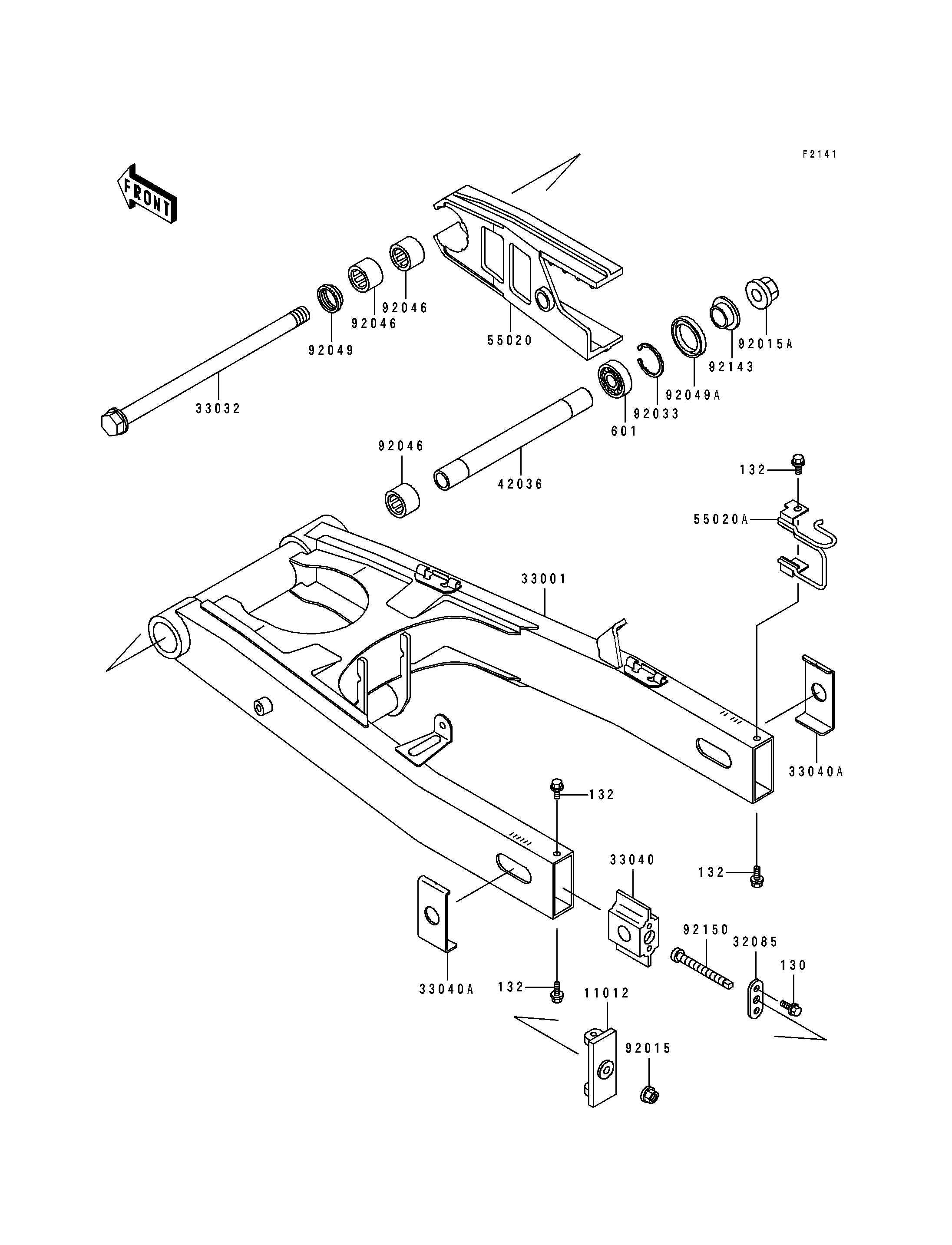

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CHAIN ADJUSTER | 11012 | 11012-1911 | 2 | ||
STOPPER,CHAIN ADJUSTER | 32085 | 32085-1408 | 2 | ||
ARM-COMP-SWING | 33001 | 33001-1486 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1170 | 1 | ||
ADJUSTER-CHAIN,INNER | 33040 | 33040-1142 | 2 | ||
ADJUSTER-CHAIN,OUTER | 33040A | 33040-1143 | 2 | ||
SLEEVE,SWING ARM,L=227.2 | 42036 | 42036-1236 | 1 | ||
GUARD,CHAIN | 55020 | 55020-1529 | 1 | ||
GUARD | 55020A | 55020-1573 | 1 | ||
NUT,FLANGED,8MM,BLACK | 92015 | 92015-1183 | 2 | ||
NUT,FLANGED,20MM | 92015A | 92015-1724 | 1 | ||
RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
BEARING-NEEDLE,BM283417 | 92046 | 92046-1111 | 3 | ||
SEAL-OIL | 92049 | 92049-1181 | 1 | ||
SEAL-OIL,TC28426.5 | 92049A | 92049-1185 | 1 | ||
COLLAR,SWING ARM,RH,L=12.5 | 92143 | 92143-1727 | 1 | ||
BOLT,CHAIN ADJUSTER | 92150 | 92150-1285 | 2 | ||
BOLT-FLANGED | 130 | 130P0616 | 4 | ||
BOLT-FLANGED-SMALL | 132 | 132J0612 | 4 | ||
BEARING-BALL,#6004 | 601 | 601A6004 | 1 |
CAP,CHAIN ADJUSTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STOPPER,CHAIN ADJUSTER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,INNER | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,OUTER | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=227.2 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,20MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM283417 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC28426.5 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,RH,L=12.5 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CHAIN ADJUSTER | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6004 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
