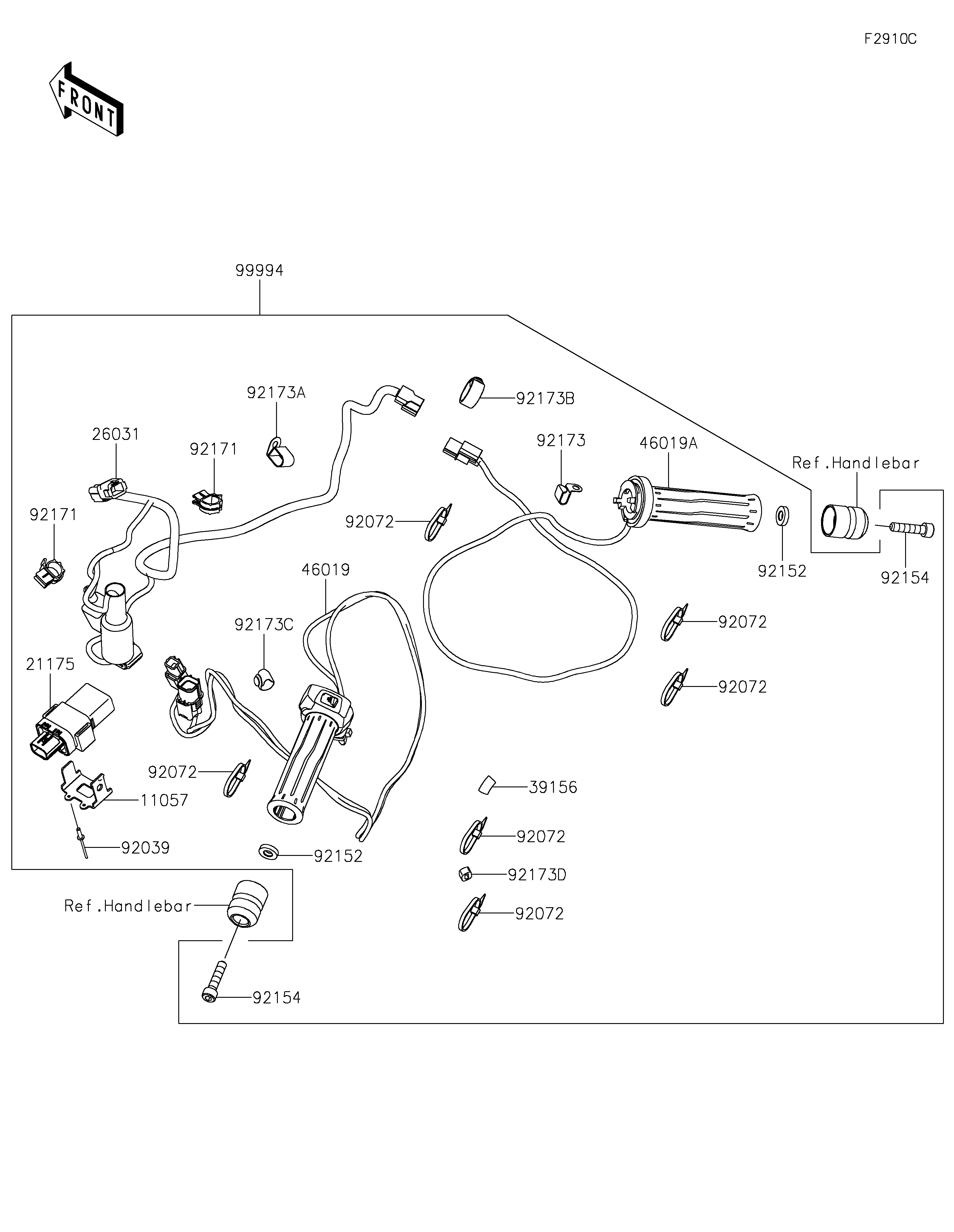

2023 Ninja® ZX-10R - Accessory(Grip Heater)
11057
21175
26031
39156
46019
46019A
92039
92072
92072
92072
92072
92072
92072
92152
92152
92154
92154
92171
92171
92173
92173A
92173B
92173C
92173D
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-4258 | 1 | ||
| CONTROL UNIT-ELECTRONIC,GH | 21175 | 21175-1329 | 1 | ||
| HARNESS | 26031 | 26031-2884 | 1 | ||
| PAD,15X25X1 | 39156 | 39156-2119 | 1 | ||
| GRIP-ASSY,HEATER,LH | 46019 | 46019-0105 | 1 | ||
| GRIP-ASSY,HEATER,RH | 46019A | 46019-0106 | 1 | ||
| RIVET | 92039 | 92039-1271 | 3 | ||
| BAND,202X3.6 | 92072 | 92072-0782 | 6 | ||
| COLLAR | 92152 | 92152-2663 | 2 | ||
| BOLT,SOCKET,8X35 | 92154 | 92154-4053 | 2 | ||
| CLAMP,EDGE CLIP | 92171 | 92171-1722 | 2 | ||
| CLAMP | 92173 | 92173-0082 | 1 | ||
| CLAMP,68MM | 92173A | 92173-1009 | 1 | ||
| CLAMP | 92173B | 92173-2194 | 1 | ||
| CLAMP | 92173C | 92173-2199 | 1 | ||
| CLAMP | 92173D | 92173-2437 | 1 | ||
| GRIP HEATER | 99994 | 99994-1486 | 1 |
