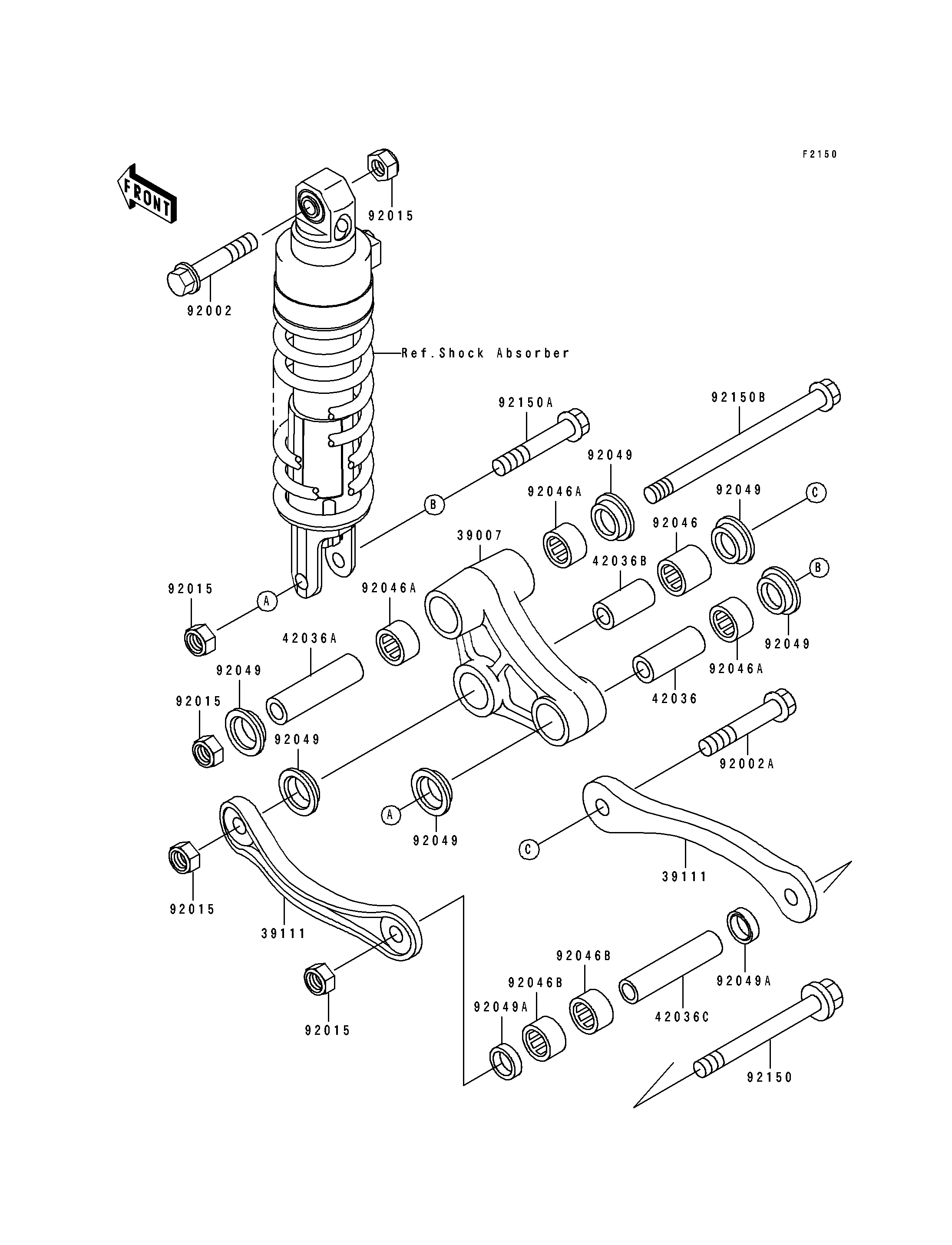

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1238 1
ROD-TIE,SUSPENSION 39111 39111-1140 2
SLEEVE,ARM,RR 42036 42036-1077 1
SLEEVE,ARM,CNT 42036A 42036-1079 1
SLEEVE,12.1X20X50 42036B 42036-1111 1
SLEEVE,12.1X18X82 42036C 42036-1231 1
BOLT,12X55 92002 92002-1130 1
BOLT,SUSPENSION ARM,12MM 92002A 92002-1785 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 5
BEARING-NEEDLE,BM202726 92046 92046-1110 1
BEARING-NEEDLE,BM202715 92046A 92046-1112 3
BEARING-NEEDLE,18BM2416 92046B 92046-1144 2
SEAL-OIL,ARM,CNT 92049 92049-1109 6
SEAL-OIL,MHA18244 92049A 92049-1225 2
BOLT,FLANGED,12X110 92150 92150-1088 1
BOLT,FLANGED,12X63 92150A 92150-1258 1
BOLT,FLANGED,12X165 92150B 92150-1931 1
