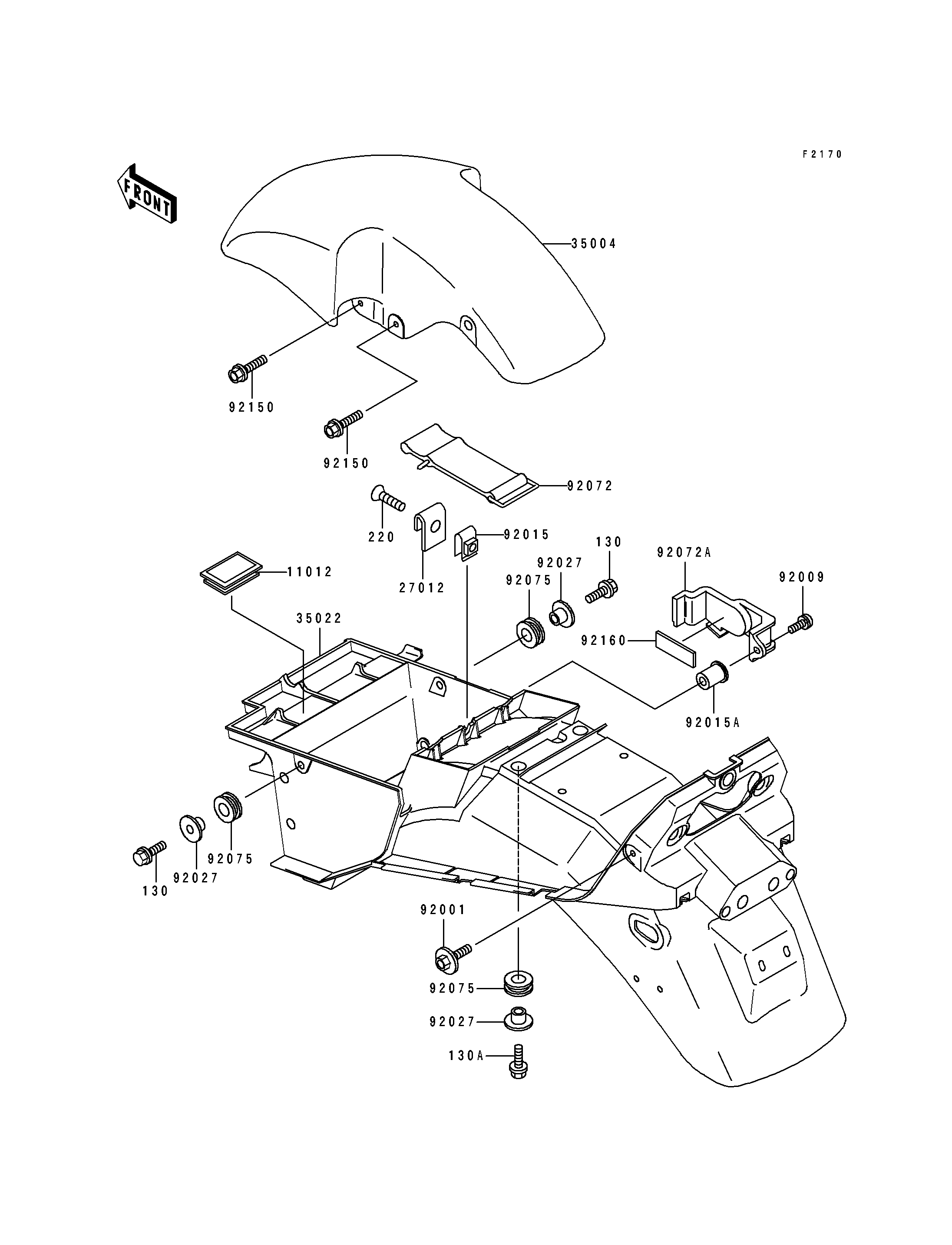

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,TERMINAL,BATTERY(+) 11012 11012-1939 1
HOOK,BATTERY CASE 27012 27012-1316 1
FENDER-FRONT,P.G.BLACK 35004 35004-1328-RL 1
FENDER-COMP-REAR 35022 35022-1309 1
BOLT,6X14,BLACK 92001 92001-1847 2
SCREW,6X18 92009 92009-1663 1
NUT,CLAMP,6MM 92015 92015-1678 1
NUT 92015A 92015-1700 1
COLLAR,L=9.1,BLACK 92027 92027-1935 4
BAND 92072 92072-1176 1
BAND,BATTERY 92072A 92072-1318 1
DAMPER 92075 92075-1634 4
BOLT,6X16 92150 92150-1909 4
DAMPER 92160 92160-1075 1
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
BOLT-FLANGED,6X18 130A 130J0618 2
SCREW-PAN-CROS,6X12 220 220C0612 1
