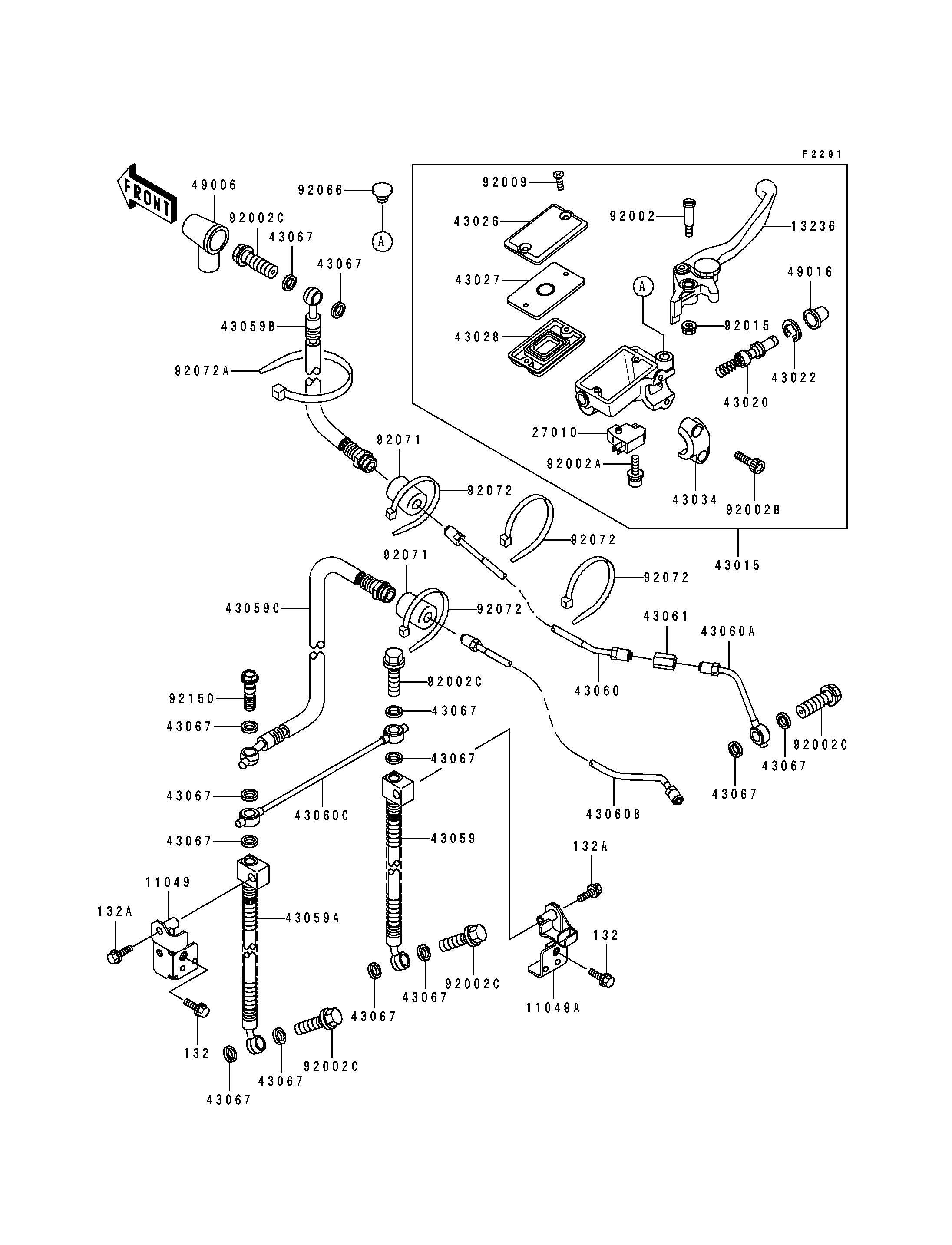

1996 GPZ 1100 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FRONT CALIPER,LH 11049 11049-1425 1
BRACKET,FRONT CALIPER,RH 11049A 11049-1451 1
LEVER-COMP,FRONT BRAKE 13236 13236-1185 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1498 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1076 1
PLATE-DIAPHRAGM 43027 43027-1055 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1053 1
HOSE-BRAKE,FR 43059 43059-1916 1
HOSE-BRAKE,FR 43059A 43059-1925 1
HOSE-BRAKE,FR 43059B 43059-1956 1
HOSE-BRAKE,FR 43059C 43059-1957 1
PIPE-BRAKE,FR 43060 43060-1104 1
PIPE-BRAKE,FR 43060A 43060-1105 1
PIPE-BRAKE,FR 43060B 43060-1106 1
PIPE-BRAKE,FR 43060C 43060-1108 1
JOINT-BRAKE 43061 43061-1073 1
WASHER,10.5X15X1.5 43067 43067-001 13
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,SOCKET,6X20,BLACK 92002B 92002-1324 2
BOLT,OIL,L=23 92002C 92002-1888 5
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
GROMMET 92071 92071-1143 2
BAND,L=185 92072 92072-1195 4
BAND,L=365 92072A 92072-1197 1
BOLT 92150 92150-1136 1
BOLT-FLANGED-SMALL 132 132E0630 2
BOLT-FLANGED-SMALL 132A 132J0825 2
