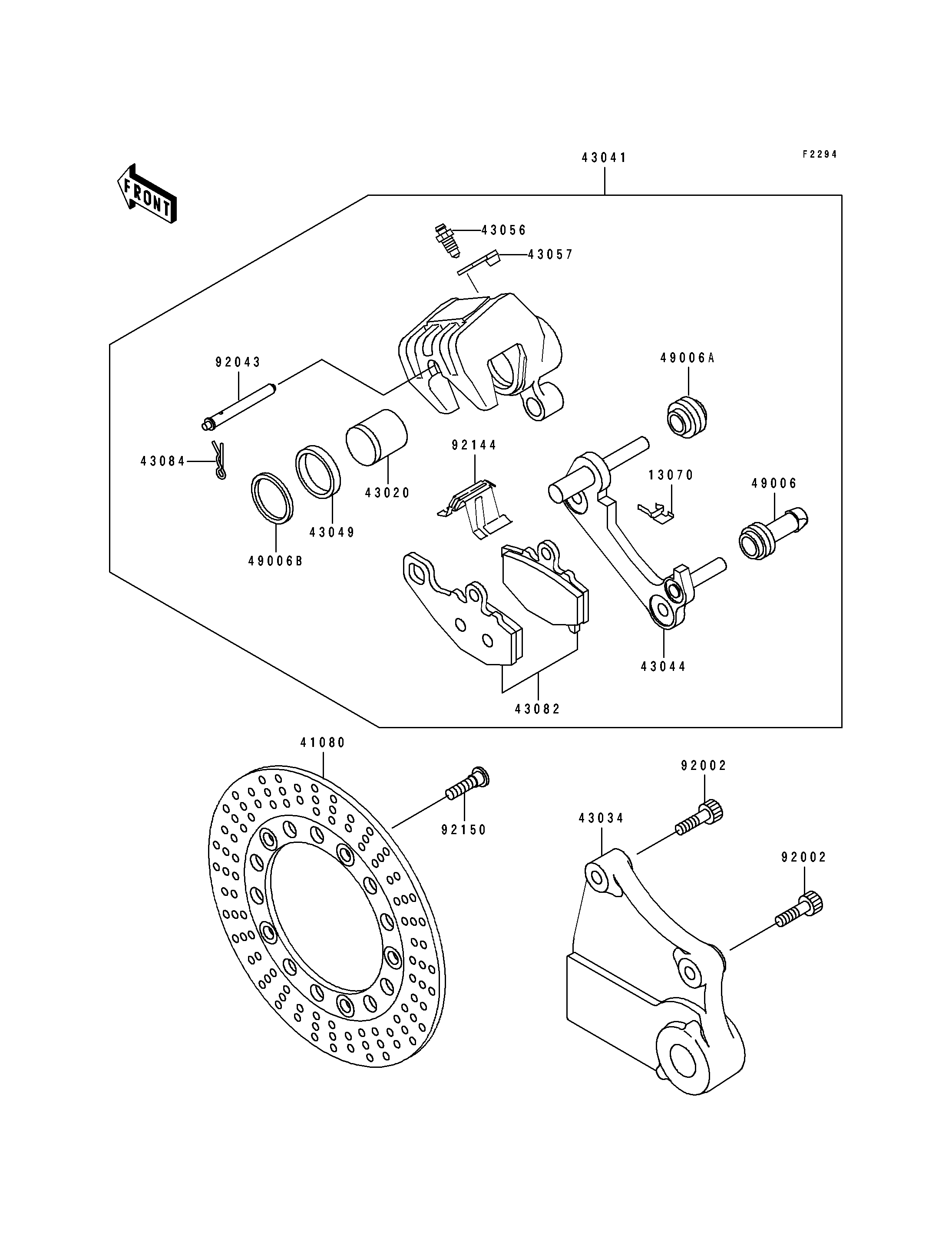

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-1273 1
DISC,RR,C.GRAY 41080 41080-1395-FB 1
PISTON-COMP-BRAKE 43020 43020-1108 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1136 1
CALIPER-ASSY,RR,M.F.GRAY 43041 43041-1609-FE 1
HOLDER-COMP-CALIPER,RR 43044 43044-1110 1
PACKING,PISTON SEAL 43049 43049-001 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1190 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
BOLT,SOCKET,8X20 92002 92002-1178 2
PIN,PAD 92043 92043-1489 1
SPRING,PAD 92144 92144-1719 1
BOLT,DISC PLATE,8X30 92150 92150-1728 5
