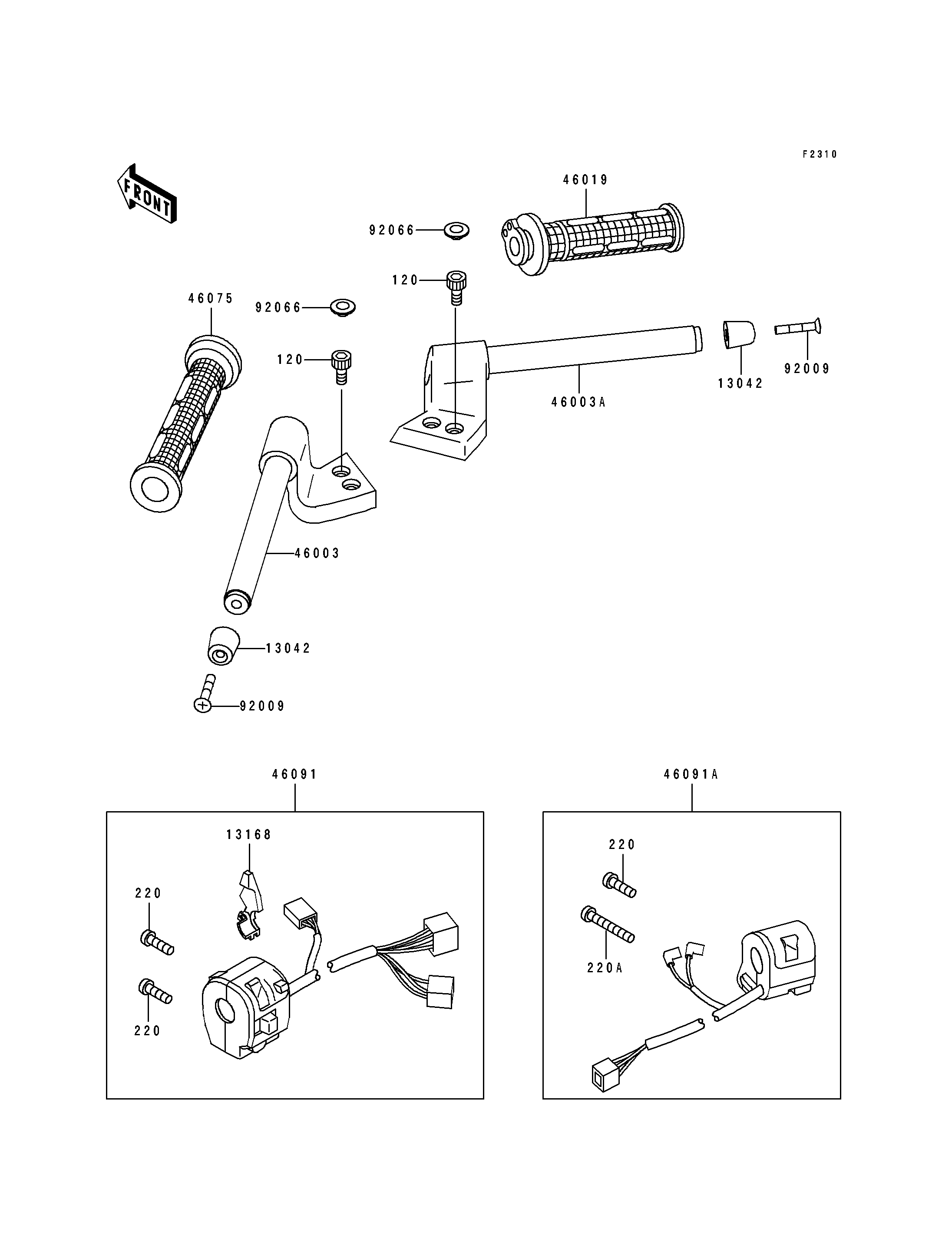

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1005 2
LEVER,CHOKE 13168 13168-1516 1
HANDLE,LH 46003 46003-1418 1
HANDLE,RH 46003A 46003-1420 1
GRIP-ASSY,THROTTLE 46019 46019-1077 1
GRIP,LH 46075 46075-1088 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1593 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-1626 1
SCREW,8X45 92009 92009-1257 2
PLUG 92066 92066-1216 4
BOLT-SOCKET,8X25,BLACK 120 120S0825 4
SCREW-PAN-CROS 220 220C0525 3
SCREW-PAN-CROS 220A 220C0540 1
